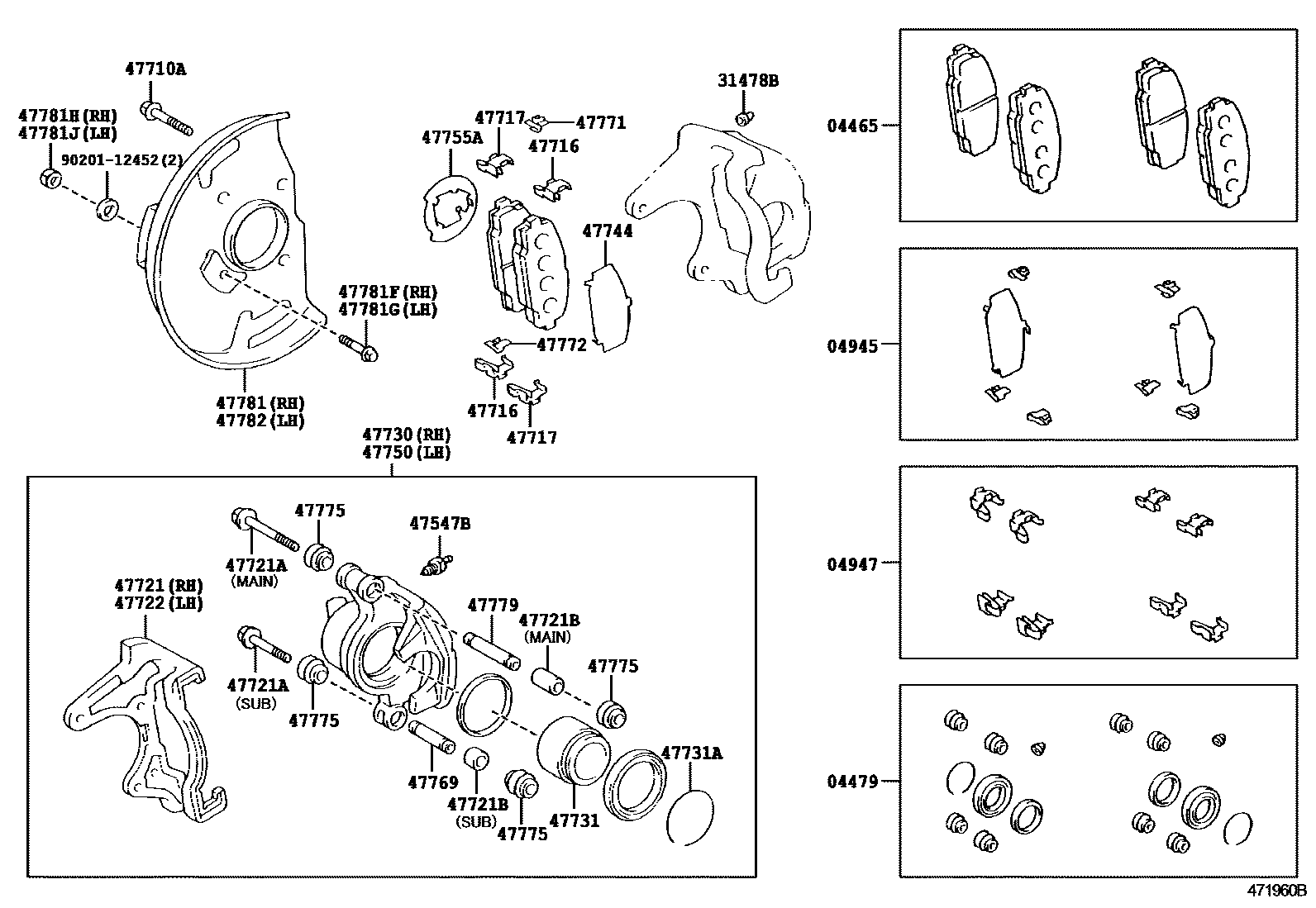

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1�������� �-

04465PAD KIT, DISC BRAKE, FRONT

main04465-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505-200107

sub04465-25070

main04465-25040iLY12#,13#,15#,16#,YY121,131199610-200107

sub04465-25060

main04465-25080iLY21#,YY211..T4199505-200107

main04465-26020iLY10#,11#,YY101199610-200107

main04465-26320iLY11#..IV5199805-200107

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-25010iLY20#,21#,YY201,211199505

main04479-26030iLY12#,13#,15#,16#,YY121,131199610

main04479-26060iLY11#..IV5199805-199910

sub04479-26061

main04479-26061iLY112..IV5199910

sub04478-26030

main04479-35050iLY10#,11#,YY101199711

main04479-40010iLY101,111,YY101199610-199711

sub04479-35050

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-25010iLY21#,YY211..T4199505

main04945-25020iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main04945-26030iLY101,111,YY101199610-199711

sub04945-26031

main04945-26031iLY10#,11#,YY101199711

main04945-26100iLY12#,13#,15#,16#,YY121,131199610

main04945-26131iLY11#..IV5199805-200011

sub04945-26151

main04945-26151iLY112..IV5200011

04947FITTING KIT, DISC BRAKE, FRONT

main04947-25010iLY20#,21#,YY201,211199505

main04947-25020iLY122,132,152,162,YY121,131199905

main04947-26010iLY10#,11#,YY101199610

main04947-26040iLY11#..IV5199805

main04947-26060iLY121,131,151,161,YY121,131199610-199905

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132iLY10#,11#,YY101199610

main90101-12149iLY12#,13#,15#,16#,YY121,131199610

main90109-12027iLY21#,YY211..T4199505

main90119-12096iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-25011iLY20#,21#,YY201,211199505

main47716-26040iLY10#,11#,YY101199610

main47716-26050iLY12#,13#,15#,16#,YY121,131199610

main47716-26050iLY11#..IV5199805

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-25011iLY20#,21#,YY201,211199505

main47717-26010iLY10#,11#,YY101199610

main47717-26020iLY12#,13#,15#,16#,YY121,131199610

main47717-26020iLY11#..IV5199805

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47721-25020iLY21#,YY211..T4199505

main47721-25030iLY122,132,152,162,YY121,131199905

main47721-26050iLY10#,11#,YY101199610

main47721-26070iLY121,131,151,161,YY121,131199610-199905

main47721-26102iLY11#..IV5199805

sub47721-26103

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2199505-199711

main90119-10249iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2199505-199711

main90119-10451iLY211,YY211..T4199505-199711

main90119-10452iLY211,YY211..T4199505-199711

sub90119-10249

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iLY10#,11#,20#,21#,YY101,201,211199505

main90387-16005iLY10#,11#,20#,21#,YY101,201,211199505

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-25030iLY122,132,152,162,YY121,131199905

main47721-26050iLY10#,11#,YY101199610

main47721-26070iLY121,131,151,161,YY121,131199610-199905

main47722-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47722-25020iLY21#,YY211..T4199505

main47722-26032iLY11#..IV5199805

sub47722-26033

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-25011iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47730-25020iLY21#,YY211..T4199505

main47730-25040iLY122,132,152,162,YY121,131199905

main47730-26080iLY10#,11#,YY101199610

main47730-26100iLY121,131,151,161,YY121,131199610-199905

main47730-26122iLY11#..IV5199805

47731PISTON, FRONT DISC BRAKE

main47731-25010iLY12#,13#,15#,16#,20#,21#,YY121,131,201,211199505

main47731-25010iLY11#..IV5199805

main47731-40010iLY10#,11#,YY101199610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iLY10#,11#,YY101199711

main90522-70001iLY101,111,YY101199610-199711

main90522-76001iLY12#,13#,15#,16#,20#,21#,YY121,131,201,211199505

main90522-76001iLY11#..IV5199805

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47744-25020iLY21#,YY211..T4199505

main47744-26040iLY10#,11#,YY101199610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-25011iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47750-25020iLY21#,YY211..T4199505

main47750-25040iLY122,132,152,162,YY121,131199905

main47750-26080iLY10#,11#,YY101199610

main47750-26100iLY121,131,151,161,YY121,131199610-199905

main47750-26122iLY11#..IV5199805

47755AINSULATOR, DISC BRAKE HEAT

main47755-25010iLY12#,13#,15#,16#,20#,21#,YY121,131,201,211199505

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main47769-50010iLY11#..IV5199805

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47771-26011iLY101,111,YY101199610-199711

main47771-26020iLY12#,13#,15#,16#,YY121,131199610

main47771-26030iLY11#..IV5199805

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47772-26020iLY12#,13#,15#,16#,YY121,131199610

main47772-26030iLY11#..IV5199805

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-26010iLY12#,13#,15#,16#,YY121,131199610

main47775-40010iLY10#,11#,20#,21#,YY101,201,211199505

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47703-26010iLY11#..IV5199805

main47703-37010iLY21#,YY211..T4199505

main47781-25030iLY122,132,152,162,YY121,131200101

main47781-26040iLY10#,11#,YY101199610

main47781-26051iLY12#,13#,15#,16#,YY121,131199610-200101

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90101-12155iLY21#,YY211..T4199505

main90102-12005iLY10#,11#,YY101199610

main90119-12096iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90101-12155iLY21#,YY211..T4199505

main90102-12005iLY10#,11#,YY101199610

main90119-12096iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

47781HNUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90171-12011iLY10#,11#,YY101199610

main94115-71200iLY201,211,YY201,211199505-199905

main94130-01202iLY202,212,YY201,211199905

47781JNUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90171-12011iLY10#,11#,YY101199610

main94115-71200iLY201,211,YY201,211199505-199905

main94130-01202iLY202,212,YY201,211199905

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main47704-26010iLY11#..IV5199805

main47704-37010iLY21#,YY211..T4199505

main47782-25030iLY122,132,152,162,YY121,131200101

main47782-26040iLY10#,11#,YY101199610

main47782-26051iLY12#,13#,15#,16#,YY121,131199610-200101

9020112452

main90201-12452
