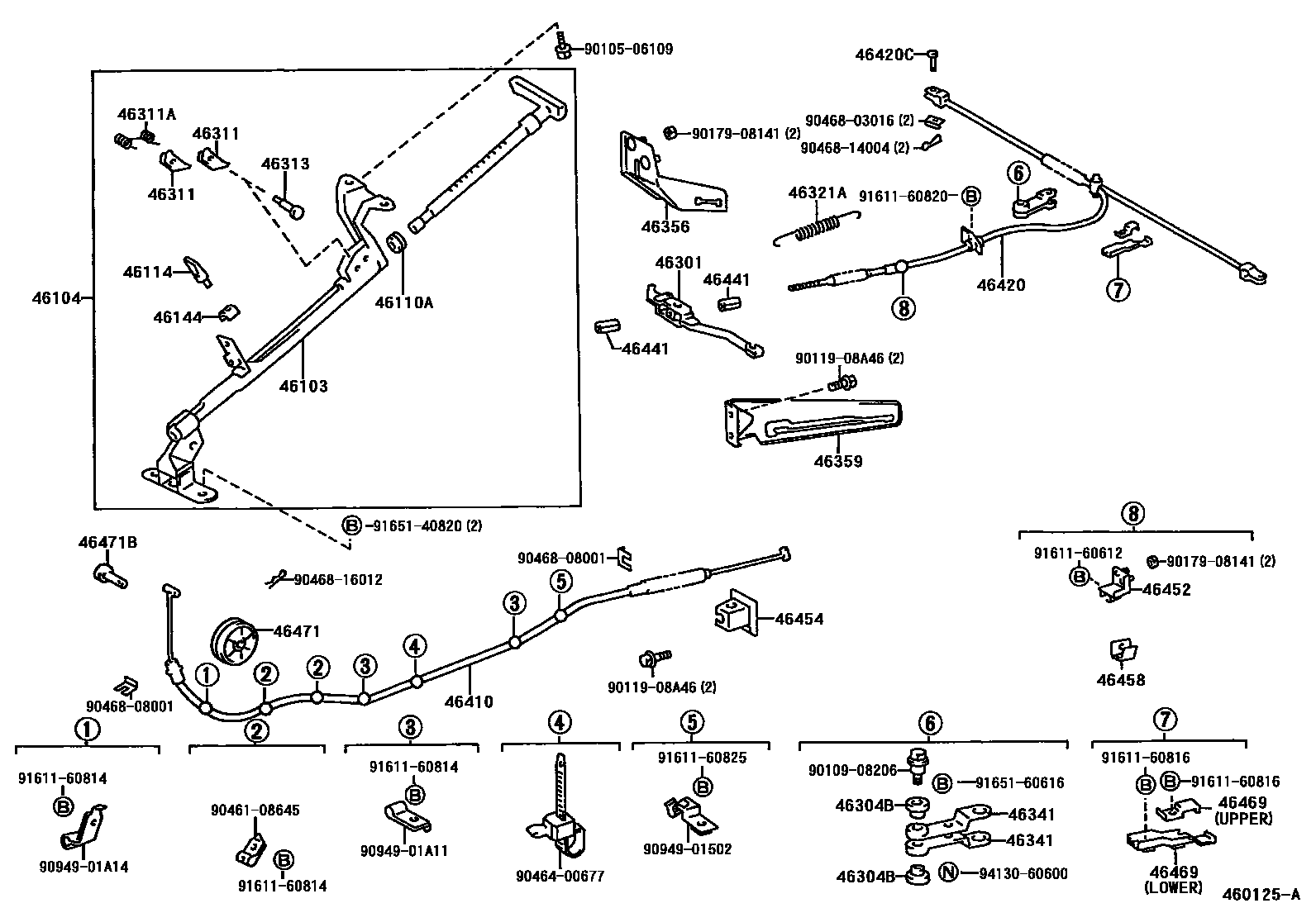

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-25081iYY211..ATM;LY16#..15T;LY16#..TW2;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main46103-26181iLY15#;LY16#..(T2,T3,TW1)..TS199610

main46103-36140iYY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131199505

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-25071iYY211..ATM;LY16#..15T;LY16#..TW2;LY10#,11#,201,YY101,201..ST..(125,1T)199505

main46104-26181iLY15#;LY16#..(T2,T3,TW1)..TS199610

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-25030iLY201,YY201..TS..ST199505-199610

main46301-25040iLY12#,13#,YY121,131199610

main46301-25050iLY16#..TW2;LY16#..ST..15T199610

main46301-26030iLY10#,11#,YY101;LY15#,16#..T2..125199610

main46301-26061iLY15#..T3,TW2;LY16#..(T3,TW1)..TS199610

main46301-36070iLY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T199505

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

46311PAWL, PARKING BRAKE

main46311-26010iYY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131199505

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iYY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131199505

main90508-08106iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

46313PIN, PARKING BRAKE PAWL

main46313-40010iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26020iYY211..ATM199505

main46321-26110iLY162..WT199905

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-18058iLY10#,15#,YY101199610

main90506-20055iLY11#,16#..ST;LY201,YY201..TS..ST199505

main90507-20015iLY162..WT199905

46341EQUALIZER, PARKING BRAKE

main46341-26010iLY162..WT;YY211..ATM199505

main46341-35020iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

46356BRACKET, EQUALIZER SUPPORT

main46356-25010iYY211..ATM199505

main46356-25020iLY201,YY201..TS..ST199505-199610

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-25010iYY211..ATM199505

main46359-25020iLY201,YY201..TS..ST199505-199610

main46359-25030iLY162..WT199907

main46359-26060iLY162..WT199905-199907

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-25092iLY201,YY201..TS..ST199505-199610

main46410-25101iYY211..ATM199505

main46410-25120iLY12#,13#,YY121,131199610

main46410-25140iLY162..WT199905

main46410-26371iLY10#,11#,15#,16#,YY101..ST199610

main46410-36350iLY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T199505

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-25131iYY211..ATM199505

main46420-25181iLY211;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T199505-199506

sub46420-25182

main46420-25182iLY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T199506

main46420-25202iLY201,YY201..T2..ST199505-199610

main46420-25220iLY10#,YY101..T1,T3,TW2199610

main46420-25230iLY11#..T3,TW1199610

main46420-25250iLY201,YY201..T1,TW2199505-199610

main46420-25270iLY12#,13#,YY121,131..MTM199610

main46420-25280iLY13#..ATM199610

main46420-25290iLY16#..TW2;LY16#..ST..15T199610

main46420-25300iLY11#,16#..IV5199805

main46420-25320iLY162..WT199905

main46420-26201iLY15#..T3,TW2199610

main46420-26211iLY10#,15#,YY101..T2199610

main46420-26370iLY16#..(T3,TW1)..TS199610

main46420-26380iLY11#,16#..T2..125199610

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iLY162..WT;YY211..ATM199505

main90240-08042iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

46441NUT, WIRE ADJUSTING, NO.1

main46441-30041iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-25010iLY201,YY201..TS..ST199505-199610

main46452-25030iLY12#,13#,YY121,131199610

46454BRACKET, CABLE RETAINER, FRONT

main46454-25011iYY211..ATM;LY201,YY201..TS..ST199505

main46454-26040iLY162..WT199905

main46454-26051iLY10#,11#,15#,16#,YY101..ST199610

46458RETAINER, CABLE

main46458-28010iYY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST199505

46469LEVER, CABLE GUIDE SUPPORT

main46469-25010iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

main46469-60020iLY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST199505

46471PULLEY, WIRE

main46471-20010iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iYY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101199505

9010506109

main90105-06109

9010908206

main90109-08206

9011908A46

main90119-08A46

9017908141

main90179-08141

9046108645

main90461-08645

9046400677

main90464-00677

9046803016

main90468-03016

9046808001

main90468-08001

9046814004

main90468-14004

9046816012

main90468-16012

9094901502

main90949-01502

9094901A11

main90949-01A11

9094901A14

main90949-01A14

9161160612

main91611-60612

9161160814

main91611-60814

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9165140820

main91651-40820

9165160616

main91651-60616

9413060600

main94130-60600

46 parts on this diagram · 7 diagrams in section
