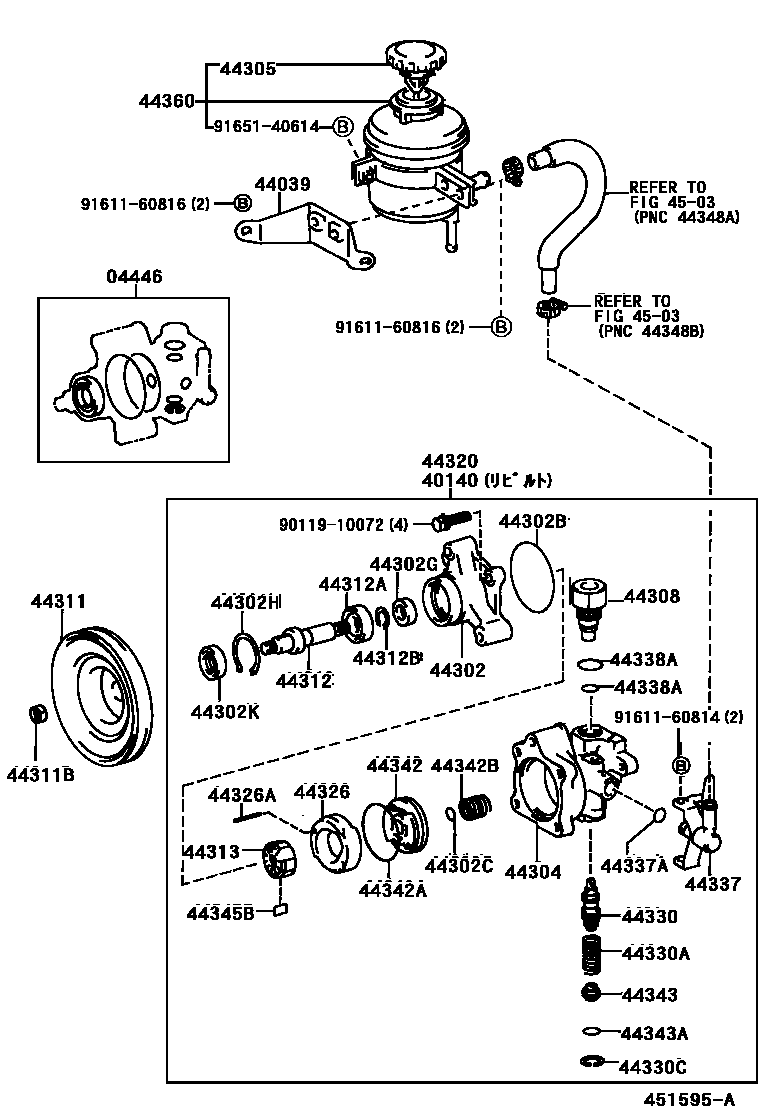

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26030iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

main04446-30030iLY16#,YY101,121,131,201,211..CBR,LPG199505

40140PUMP ASSY,VANE REBUILT

main40140-25031iYY201,211199505-199610

TOYODA KOKI

main40140-25041iLY20#,21#199505

TOYODA KOKI

main40140-25050iYY121,131199610

TOYODA KOKI

main40140-25060iYY211..LPG199610

TOYODA KOKI

main40140-25070iLY16#..LPG199805

TOYODA KOKI

main40140-26031iYY101199610

TOYODA KOKI

main40140-30151iLY10#,11#199610

TOYODA KOKI

main40140-35441iLY12#,13#,15#,16#..DSL199610

TOYODA KOKI

44039BRACKET SUB-ASSY, OIL RESERVOIR

main44039-25010iLY10#,11#,12#,13#,15#,16#..DSL199610

main44039-25020iLY121,131..T2..MTM..15T..IV3199610-199710

main44369-25040iLY20#,21#199505

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-14010iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44302-30110iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

main90311-24001iLY16#,YY101,121,131,201,211..CBR,LPG199505

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iLY16#,YY101,121,131,201,211..CBR,LPG199505

main90521-51003iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44302KSEAL, OIL, NO.3(FOR VANE PUMP HOUSING)

main90313-23001iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iLY16#,YY211..LPG199610

main44304-28021iYY101,121,131,201,211..CBR199610

main44304-30051iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44305-32010iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26011iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44308-30060iLY10#,11#,20#,21#199505

main44308-35060iLY12#,13#,15#,16#..DSL199610

44311PULLEY, VANE PUMP

main44311-12010iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44311-30150iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44311BNUT(FOR VANE PUMP PULLEY)

main90170-12011iYY101,121,131,201,211199505-199803

main90170-12043iLY16#,YY101,121,131,201,211..CBR,LPG199803

main90178-12003iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199803

main90179-12022iLY101,111,121,131,151,161,201,211199505-199803

44312SHAFT, VANE PUMP

main44312-12010iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44312-28010iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iLY16#,YY101,121,131,201,211..CBR,LPG199505

main90363-17011iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iLY16#,YY101,121,131,201,211..CBR,LPG199505

main90520-15005iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44313ROTOR, VANE PUMP

main44313-22040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44313-22050iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44313-22060iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44313-22070iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44313-22080iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44320PUMP ASSY, VANE

main44320-25031iYY201,211199505-199610

main44320-25041iLY20#,21#199505

main44320-25050iYY121,131199610

main44320-25060iYY211..LPG199610

main44320-25070iLY16#..LPG199805

main44320-26031iYY101199610

main44320-30151iLY10#,11#199610

main44320-35441iLY12#,13#,15#,16#..DSL199610

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44325-12020iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44325-12030iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44325-12040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44325-12050iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44330VALVE ASSY, FLOW CONTROL

main44330-12131iLY12#,13#,15#,16#..DSL199610

main44330-12141iLY12#,13#,15#,16#..DSL199610

main44330-12151iLY12#,13#,15#,16#..DSL199610

main44330-12161iLY12#,13#,15#,16#..DSL199610

main44330-12171iLY12#,13#,15#,16#..DSL199610

main44330-12181iLY12#,13#,15#,16#..DSL199610

main44330-20010iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44330-20020iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44330-20030iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44330-20040iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44330-20050iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44330-20060iLY16#,YY101,121,131,201,211..CBR,LPG199505

main44330-32130iLY10#,11#,20#,21#199505

main44330-32140iLY10#,11#,20#,21#199505

main44330-32150iLY10#,11#,20#,21#199505

main44330-32160iLY10#,11#,20#,21#199505

main44330-32170iLY10#,11#,20#,21#199505

main44330-32180iLY10#,11#,20#,21#199505

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44337UNION, POWER STEERING SUCTION PORT

main44337-26020iLY20#,21#199505

main44337-30010iLY10#,11#,12#,13#,15#,16#..DSL199610

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main96711-19013iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main96711-19014iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44343SEAT, FLOW CONTROL SPRING

main44343-12040iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44345BPLATE, VANE PUMP

main44345-12010×10iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44345-12020×10iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44345-12030×10iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44345-12040×10iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

main44345-12050×10iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211199505

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25021iYY201,211199505

main44306-25030iLY16#,YY121,131..CBR,LPG199610

main44306-26031iYY101199610

main44360-26030iLY10#,11#,12#,13#,15#,16#,20#,21#..DSL199505

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011910072

main90119-10072

9161160814

main91611-60814

9161160816

main91611-60816

9165140614

main91651-40614

39 parts on this diagram · 3 diagrams in section
