Toyota 731160 — FRONT DRIVE SHAFT

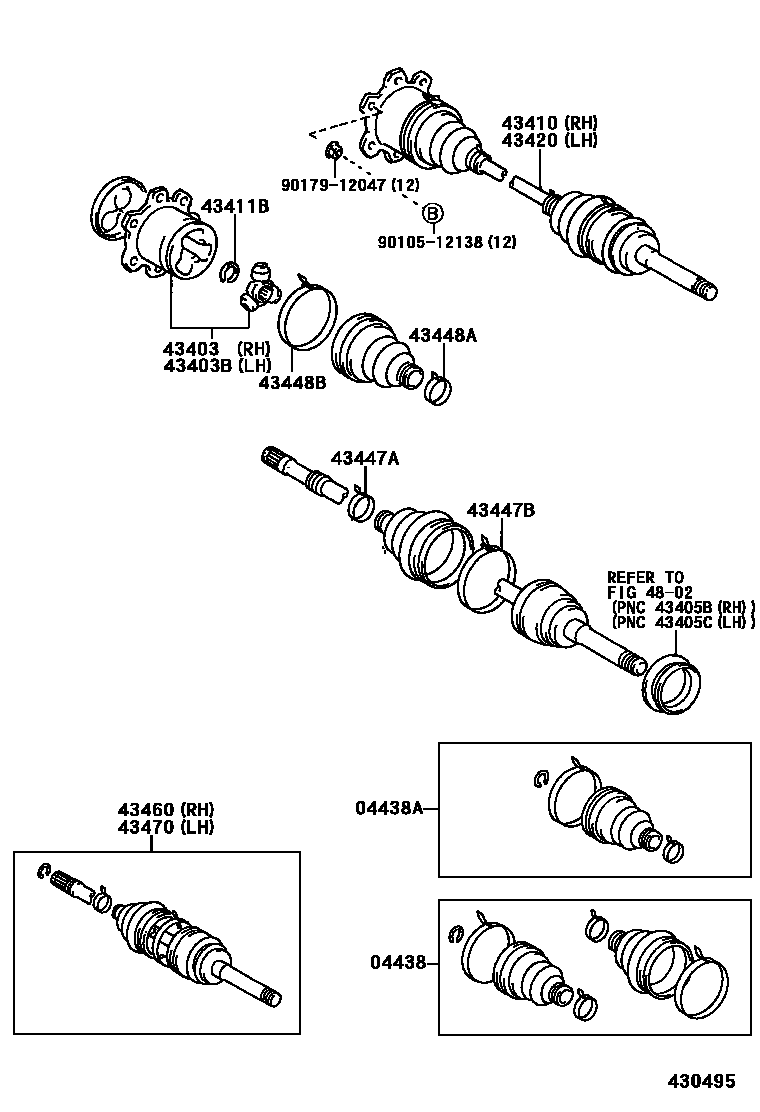

Parts diagram

04438BOOT KIT, FRONT DRIVE SHAFT

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

43403JOINT SET, FRONT AXLE INBOARD, RH

43403BJOINT SET, FRONT AXLE INBOARD, LH

43410SHAFT ASSY, FRONT DRIVE, RH

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

43420SHAFT ASSY, FRONT DRIVE, LH

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512138

9017912047

16 parts on this diagram · 1 diagram in section

FRONT DRIVE SHAFT for Toyota 731160

This section contains 16 genuine Toyota parts for the FRONT DRIVE SHAFT system of the Toyota 731160. Key components include: BOOT KIT, FRONT DRIVE SHAFT, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, JOINT SET, FRONT AXLE INBOARD, RH, JOINT SET, FRONT AXLE INBOARD, LH, SHAFT ASSY, FRONT DRIVE, RH.
