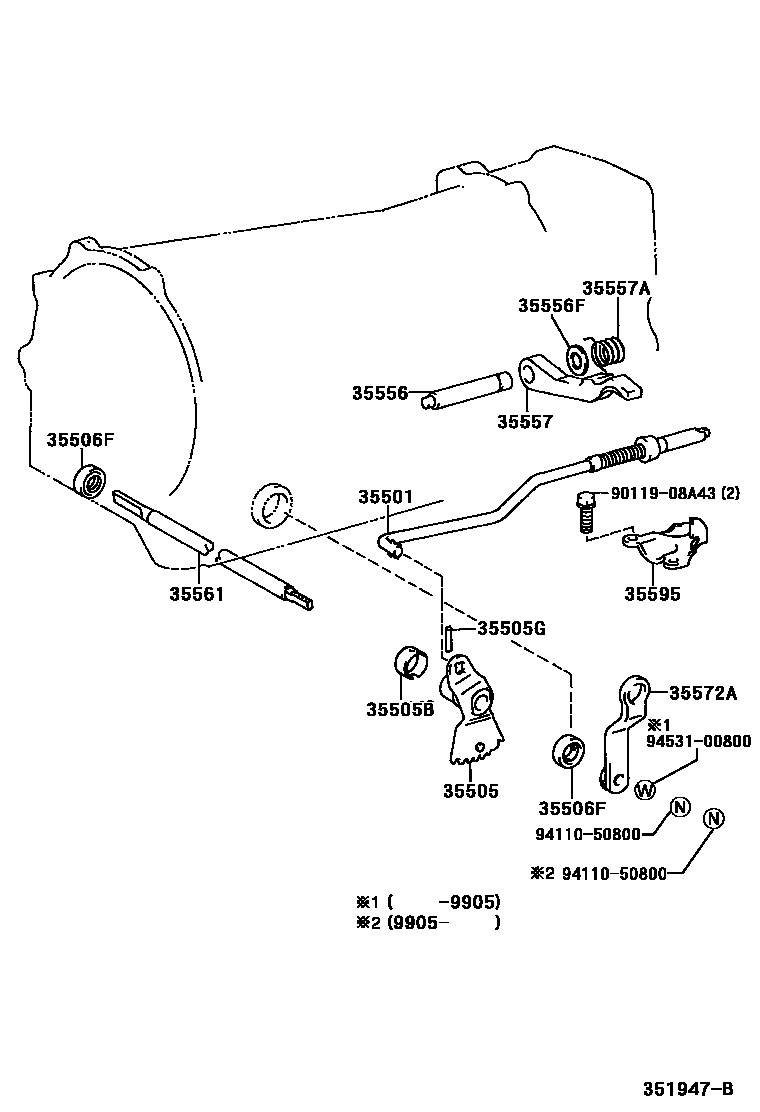

Toyota DYNA 150/TOYOACE G15731 — THROTTLE LINK & VALVE LEVER (ATM)
35505LEVER SUB-ASSY, MANUAL VALVE
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35572ALEVER, TRANSMISSION CONTROL SHAFT
9011908A43
9411050800
9453100800
16 parts on this diagram · 6 diagrams in section
THROTTLE LINK & VALVE LEVER (ATM) for Toyota DYNA 150/TOYOACE G15731
This section contains 34 genuine Toyota parts for the THROTTLE LINK & VALVE LEVER (ATM) system of the Toyota DYNA 150/TOYOACE G15731. Key components include: ROD SUB-ASSY, PARKING LOCK, LEVER SUB-ASSY, MANUAL VALVE, SPACER (FOR MANUAL VALVE LEVER), PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER), PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT).
