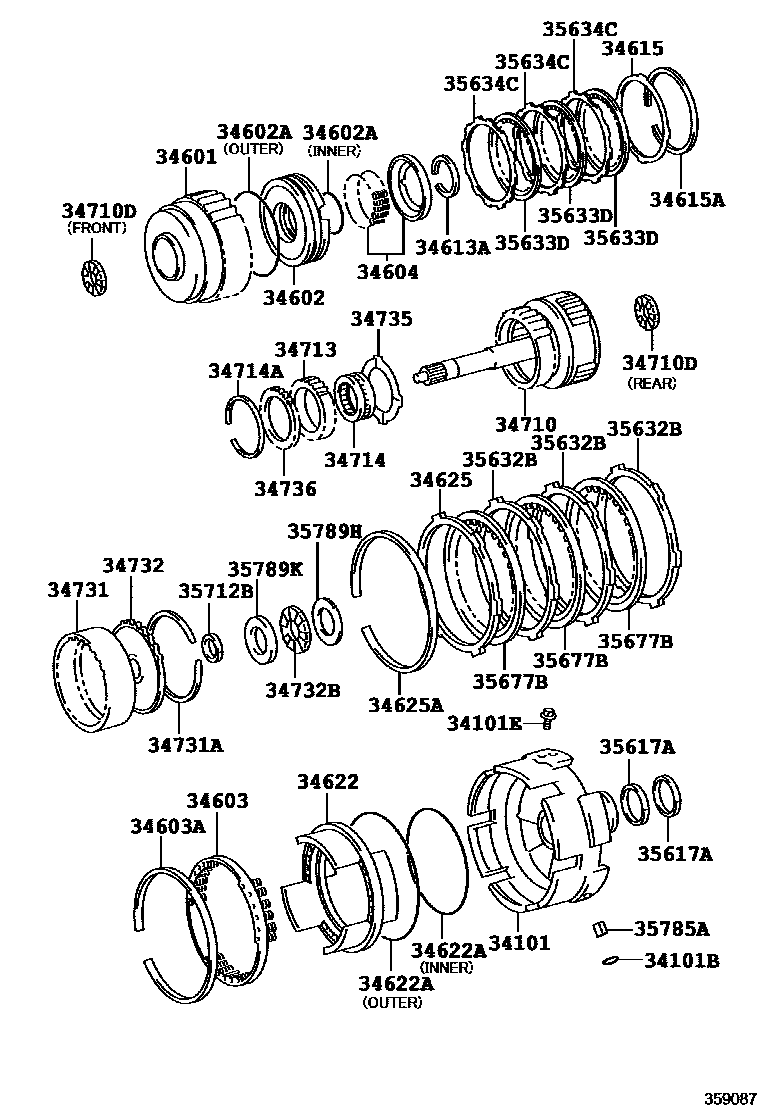

OVERDRIVE GEAR (ATM)
34101CASE SUB-ASSY, OVERDRIVE
34101BRING, O (FOR OVERDRIVE CASE)
34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)
34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)
34615FLANGE, OVERDRIVE CLUTCH
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
34625FLANGE, OVERDRIVE BRAKE, NO.1
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34710GEAR ASSY, OVERDRIVE PLANETARY
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
34732FLANGE, OVERDRIVE PLANETARY RING GEAR
34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35632BPLATE, BRAKE (FOR OVERDRIVE)
35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
35785ARETAINER, OVERDRIVE CASE RING
35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)
35789KRACE, THRUST BEARING (FOR OVERDRIVE PLANETARY GEAR)
36 parts on this diagram · 3 diagrams in section
