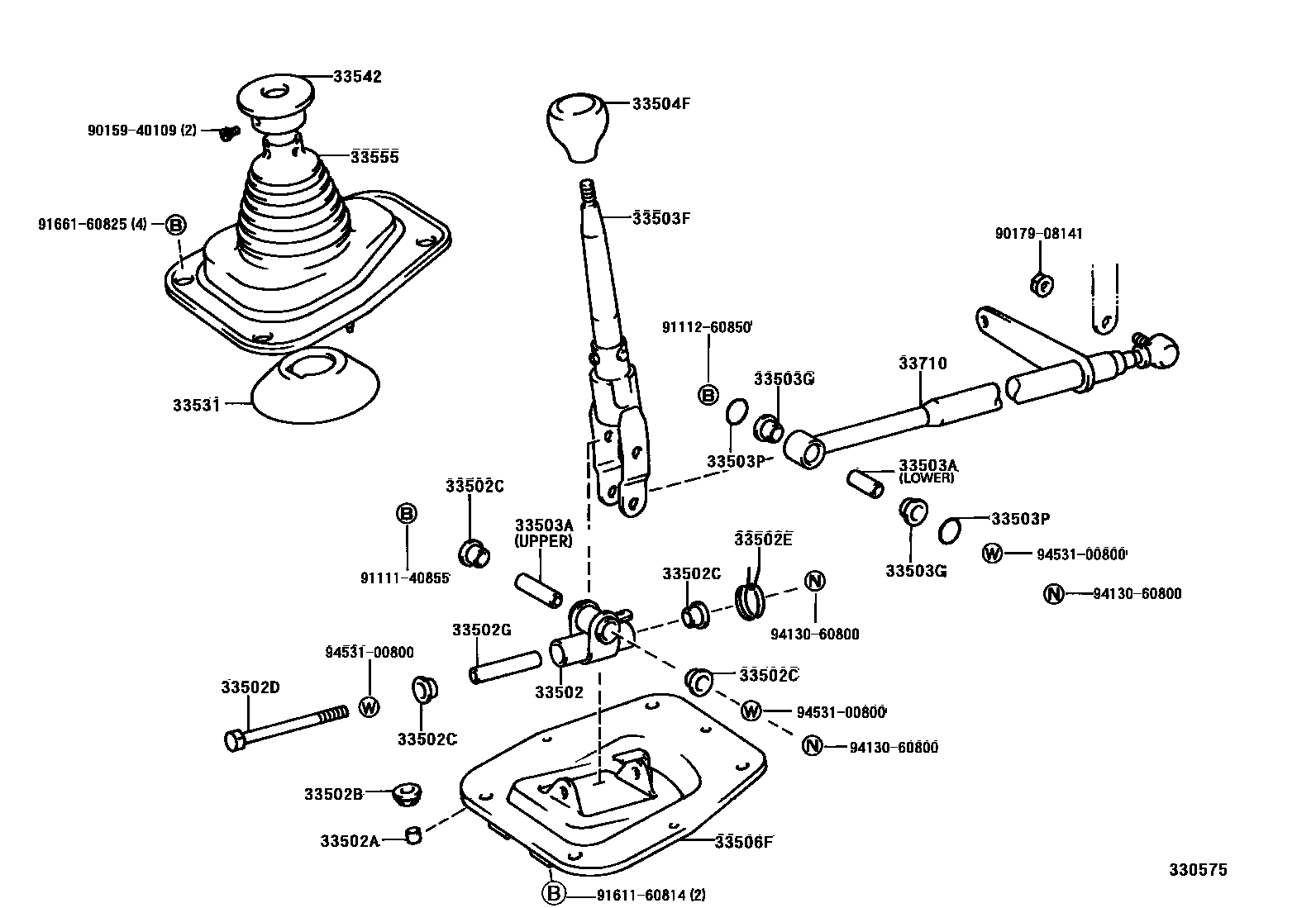

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-25010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-10081×4iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-17018×4iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13192×4iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08107iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)

main90508-23094iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

main90387-08065iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

main90387-08089iLY10#,11#,13#,16#,21#,YY211..ATM199505

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33501-25091iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

main33503-36110iLY10#,11#,13#,16#,21#,YY211..ATM199505

33503GBUSH(FOR SHIFT LEVER)

main90385-11003×2iLY10#,11#,13#,16#,21#,YY211..ATM199505

main90389-11002×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33503PRING, O(FOR SHIFT LEVER)

main96711-24018×2iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35030-B1iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

BLUISH GRAY,TRIM1#

main33504-36070-B0iLY10#,11#,13#,16#,21#,YY211..ATM199505

GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-25010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

main33570-26020iLY10#,11#,13#,16#,21#,YY211..ATM199505

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-25020iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33542KNOB, SPRING BACK SHIFT LEVER

main33542-25010iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

33555BOOT, SHIFT LEVER

main33555-25031iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

main33555-26020iLY10#,11#,13#,16#,21#,YY211..ATM199505

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-25143iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM199505

9015940109

main90159-40109

9017908141

main90179-08141

9111140855

main91111-40855

9111260850

main91112-60850

9161160814

main91611-60814

9166160825

main91661-60825

9413060800

main94130-60800

9453100800

main94531-00800

25 parts on this diagram · 9 diagrams in section
