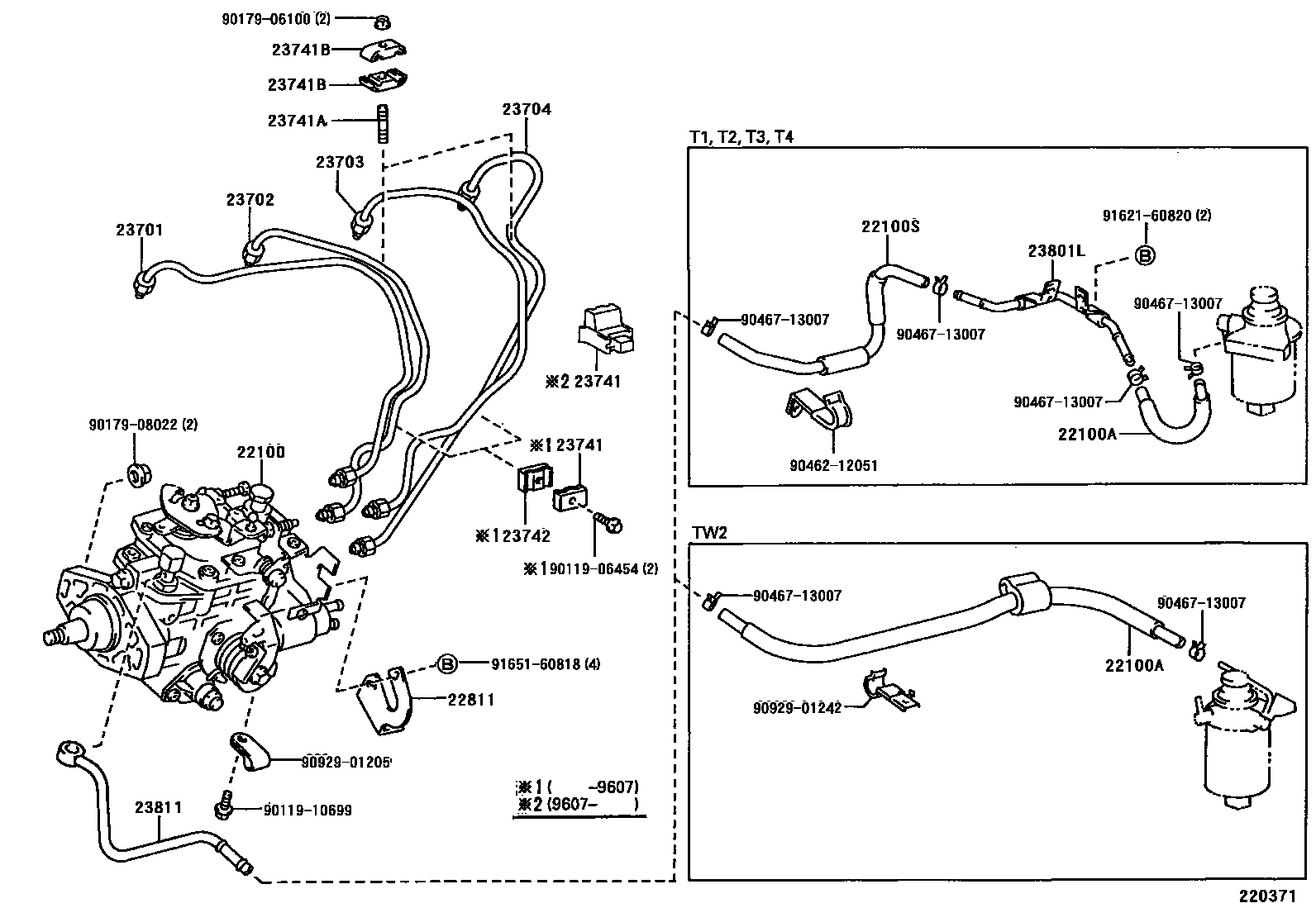

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B400i3L..LY101,111,121,131,151,161,201,211..MTM199505-199905

main22100-5B410i3L..LY101,111,131,161,211..ATM199505-199905

main22100-5D040i5L..LY102,112,122,132,152,162,202,212..MTM199905

main22100-5D100i5L..LY102,112,132,162,212..ATM199905

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14023i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4199505-199908

main90447-14060i3L,5L..LY10#,11#,13#,15#,16#..TW1,TW2199610

main90447-14061i3L,5L..LY201,21#..TW2199505

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-54010i3L,5L..LY20#,21#..T1,T2,T3,T4199505

main90447-14059i3L,5L..LY10#,11#,12#,13#,15#,16#..T1,T2,T3199610

22811STAY, INJECTION PUMP, NO.1

main22811-54041i3L..LY101,111,121,131,151,161,201,211199505-199804

sub22811-54042

main22811-54042i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199804

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i3L..LY201,211199505-199607

main23741-54030i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199607

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06095i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

23741BCLAMP, INJECTION PIPE

main23741-56010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i3L..LY201,211199505-199607

23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-54050i3L,5L..LY10#,11#,12#,13#,15#,16#..T1,T2,T3199610-199908

main23801-54060i3L,5L..LY20#,21#..T1,T2,T3,T4199505

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54160i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

9011906454

main90119-06454

9011910699

main90119-10699

9017906100

main90179-06100

9017908022

main90179-08022

9046212051

main90462-12051

9046713007

main90467-13007

9092901205

main90929-01205

9092901242

main90929-01242

9162160820

main91621-60820

9165160818

main91651-60818

24 parts on this diagram · 2 diagrams in section
