21015HOUSING SUB-ASSY, COIL

main21015-73450i199505

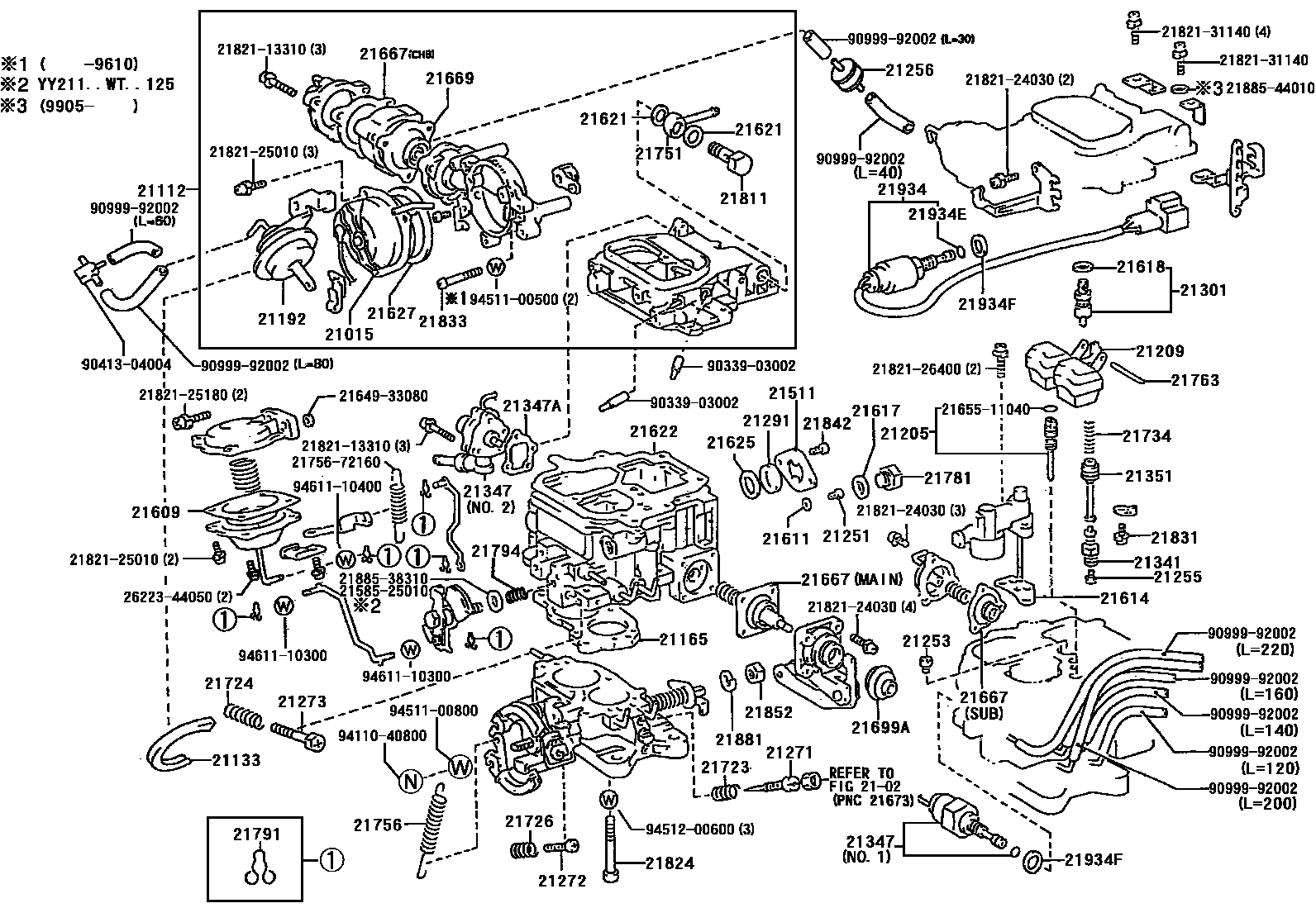

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

21112HORN, AIR

main21112-73451i199505-199610

main21112-73470i199610-199905

main21112-73471i199905

21133COVER(FOR DIAPHRAGM)

main21133-72160i199505

21165INSULATOR

main21165-72200i199505

21192BREAKER

main21192-73300i199505

21205JET SUB-ASSY, SLOW

main21205-72320i199505

21209FLOAT SUB-ASSY

main21209-72160i199505

21251JET, 1ST MAIN

main90999-41113i199505

21253JET, 2ND MAIN

main21253-73450i199505

21255JET, POWER

main90999-43047i199505

21256JET(FOR CARBURETOR)

main90925-04005i199505

21271SCREW, IDLE ADJUSTING

main21271-15230i199505

21272SCREW, 1ST IDLE ADJUSTING

main21272-71010i199505

21273SCREW, THROTTLE ADJUSTING

main21273-72290i199505

21291GLASS, LEVEL GAGE

main21291-34320i199505

21301VALVE SUB-ASSY, NEEDLE

main21301-35010i199505

21341VALVE, POWER

main21304-30010i199505

21347VALVE, SOLENOID

main21345-71120i199505

main21345-73450i199505

21347AGASKET(FOR VALVE, SOLENOID)

main21641-35510i199505

21351PISTON, POWER

main21351-37040i199505

21511CLAMP, LEVEL GAGE

main21511-38010i199505-199905

21609DIAPHRAGM SUB-ASSY

main21667-72170i199505

21611GASKET, MAIN JET

main21611-22010i199505

21614GASKET, VENTURI

main21614-72200i199505

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i199505

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i199505

21621GASKET, UNION NIPPLE

main21633-24030×2i199505

21622GASKET, AIR HORN

main21622-72200i199505

21625GASKET, LEVEL GAGE

main21655-60200i199505

21627GASKET, COIL HOUSING

main21627-28150i199505

21667DIAPHRAGM

main21667-72200i199505

MAIN

main21667-72301i199505

*CHB

main21675-35330i199505

SUB

21669DIAPHRAGM

main21669-73370i199505

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i199505

21723SPRING, IDLE ADJUSTING

main21723-21030i199505

21724SPRING, THROTTLE ADJUSTING

main21723-38330i199505

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310i199505

21734SPRING, POWER PISTON

main21734-37040i199505

21751UNION, NIPPLE

main21894-71010i199505

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21869-72030i199505

21763PIN, FLOAT LEVER

main21763-34320i199505

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230i199505

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010×5i199610

main21791-13011×3i199505-199610

21794RING, RETAINER, NO.1(FOR THROTTLE SHAFT)

main21794-40010i199905

21811BOLT, UNION NIPPLE

main21811-11060i199505

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main21844-26400×3i199505

21831SCREW, POWER PISTON STOP

main21821-15060i199505

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21833-33010×2i199610

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-33010×2i199505

21852NUT, THROTTLE LEVER SET

main21852-30010i199505

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i199505

21934SOLENOID, THROTTLE VALVE

main21062-73450i199505

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i199505

21934FGASKET

main21649-38010×2i199505

2158525010

main21585-25010

2164933080GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

main21649-33080

2165511040RING, O(FOR LIFTER ROD)

main21655-11040

2175672160SPRING, BACK(FOR THROTTLE SHAFT)

main21756-72160

2182113310SCREW, 2ND THROTTLE VALVE SET

main21821-13310

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2182126400SCREW, 2ND THROTTLE VALVE SET

main21821-26400

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2188538310

main21885-38310

2188544010

main21885-44010

2622344050SCREW, SET(FOR POWER VALVE CAM)

main26223-44050

9033903002

main90339-03002

9041304004

main90413-04004

9099992002

main90999-92002

9411040800

main94110-40800

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400
