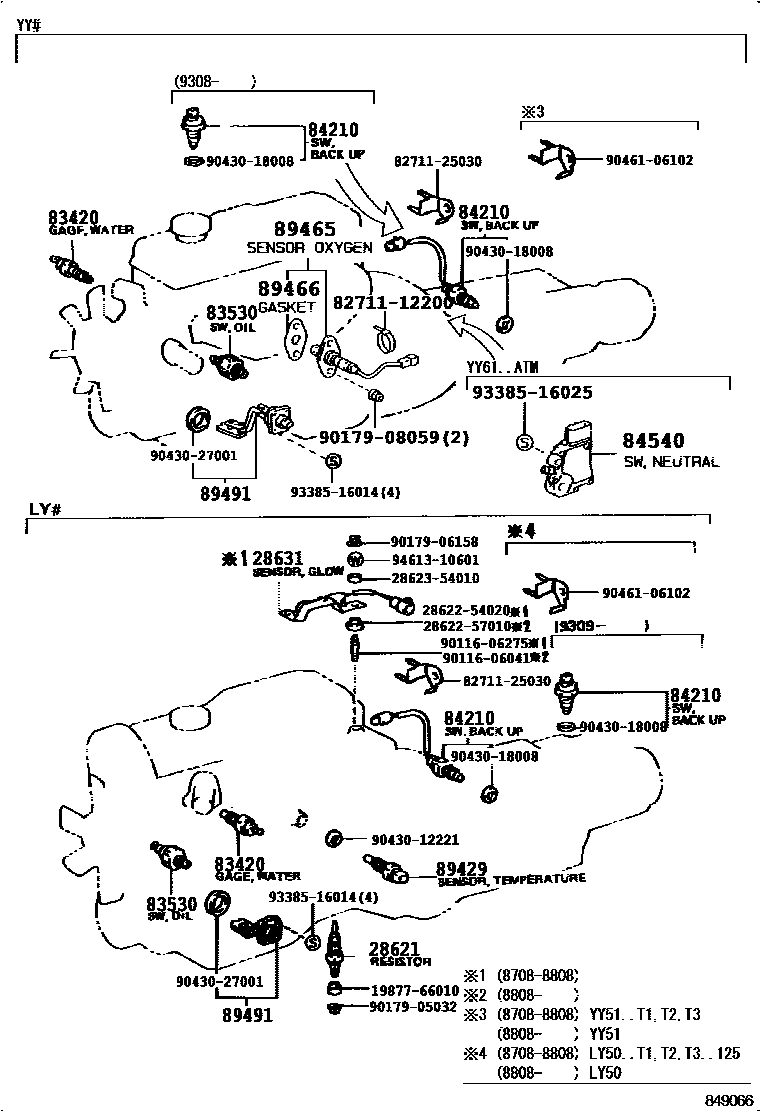

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LY50,60198708-198808

main28621-54080i2L,3L..LY5#,61198808-199505

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LY50,60198708-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLY5#,61199301-199505

main83420-20020iYY5#,61198708-199505

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYY5#,61198708-199309

main83530-14070iYY52,61199309-199505

main83530-30060iLY5#,6#198708-199505

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLY5#,61,YY52,61..MTM199309-199505

main84210-60021iLY5#,6#,YY5#,61198708-199309

84540SWITCH ASSY, NEUTRAL START

main84540-30290iYY61..ATM199406-199505

89429SENSOR, OIL TEMPERATURE

main89422-20010iLY5#,61198808-199505

main89422-30020iLY50,60198708-198808

89465SENSOR, OXYGEN

main89465-29665iYY52,61199305-199505

89466GASKET, OXYGEN SENSOR

main89466-20020iYY52,61199305-199505

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iLY5#,61198910-199505

main89491-36060iYY5#,61198910-199003

main89491-36100iLY5#,61,YY51199203-199505

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25030

9011606041

main90116-06041

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9017908059

main90179-08059

9043012221

main90430-12221

9043018008

main90430-18008

9043027001

main90430-27001

9046106102

main90461-06102

9338516014

main93385-16014

9338516025

main93385-16025

9461310601

main94613-10601

28 parts on this diagram · 5 diagrams in section
