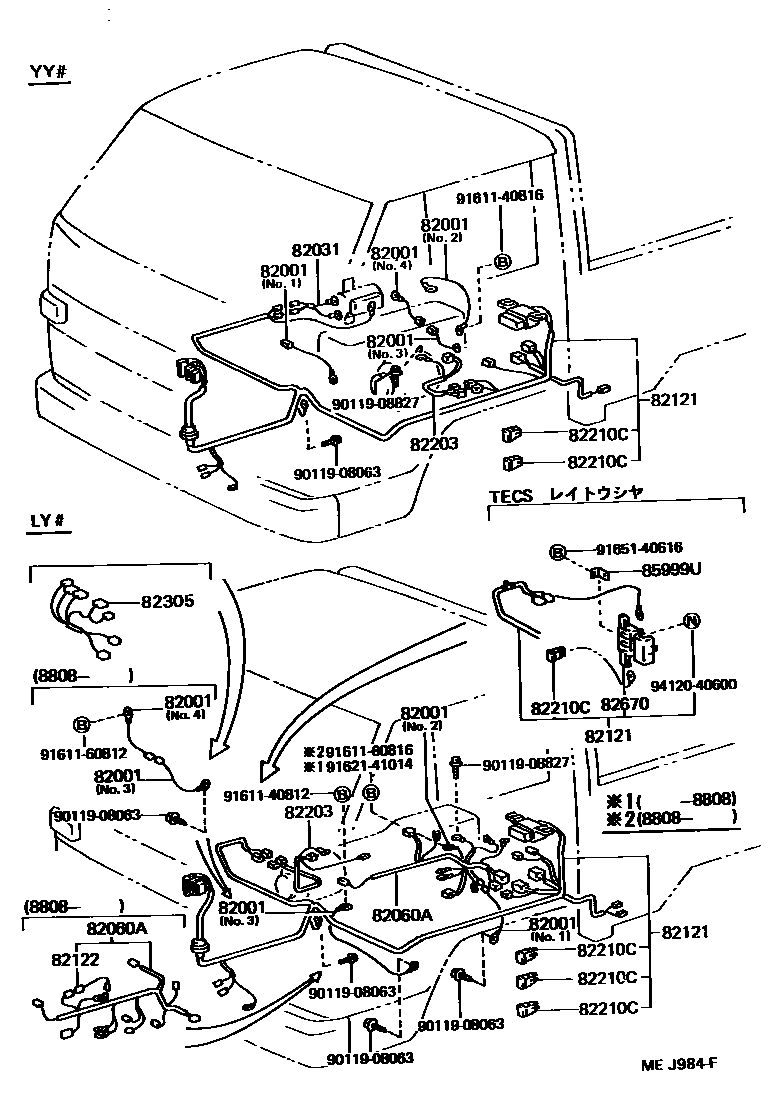

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82001CABLE, BOND, NO.1

main90980-07181iYY5#,61198708-199505

main90980-07201iLY50..T2..ST..IV;LY50,60..(T2,T4)..15T..IV198708-198808

main90980-07205iLY50..T2..ST..IV;LY50,60..(T2,T4)..15T..IV198708-198808

main90980-07227iYY5#,61198708-198903

main90980-07228iYY5#,61198708-198903

main90980-07256iYY5#,61198708-199008

main90980-07291×2iLY51,61..15T..WT1..IV; LY61..TB..15T..IV199301-199309

NO.2 OR NO.4

main90980-07310×2iLY51,61..15T..WT1..IV; LY61..TB..15T..IV199309-199505

NO.1 OR NO.3

main90980-07317iYY5#,61198903-199505

82031WIRE SUB-ASSY, IGNITION COIL

main82031-95010iYY5#,61198708-199008

82060AWIRE ASSY, ENGINE, NO.2

main82060-26010iLY5#,61199109-199210

main82060-26011iLY5#,61199210-199309

main82060-26012iLY5#,61199309-199505

main82060-95014iLY50,60198708-198808

main82060-95018iLY5#,61198808-199109

82121WIRE, ENGINE

main82121-25010iYY51199008-199309

main82121-25011iYY52..10T,125199309-199505

main82121-25020iYY52,61199008-199309

main82121-25021iYY52..15T;YY61..CBR199309-199505

main82121-25160iLY50199309-199505

main82121-25170iLY51,61199309-199505

main82121-25180iLY51,61..15T..WT1..IV; LY61..TB..15T..IV199309-199505

main82121-25210iYY61..MTM..LPG199406-199505

main82121-25220iYY61..ATM199406-199505

main82121-95061iYY51..125198708-198808

main82121-95062iYY61;YY5#..10T,15T198708-198808

main82121-95063iLY50..125198708-198808

main82121-95064iLY50..T2..ST..IV198708-198808

main82121-95065iLY50..125; LY50..15T198708-198808

main82121-95066iLY60;LY50..10T,15T198708-198808

main82121-95067iLY60..15T..WT1..IV; LY60..TB..15T..IV;LY50..15T..WT1..IV198708-198808

main82121-95068iLY60;LY50..10T,15T198708-198808

main82121-95078iYY51198808-198910

main82121-95079iLY50198808-198910

main82121-95081iLY51,61198808-198910

main82121-95082iLY50198808-198910

main82121-95083iLY51,61198808-198910

main82121-95084iLY50..T2..ST..IV198808-198910

main82121-95085iLY51,61..15T..WT1..IV; LY61..TB..15T..IV198808-198910

main82121-95L01iYY51198910-199008

main82121-95L02iYY52,61198910-199008

main82121-95L03iLY50198910-199109

main82121-95L04iLY51;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2)198910-199109

main82121-95L05iLY50199109-199309

main82121-95L06iLY51..DYN..ST..IV; LY61;LY51..WT1;LY51..ST..CBU;LY51..TOY..ST..IV198910-199109

main82121-95L07iLY50..T2..IV198910-199301

main82121-95L08iLY51,61..15T..WT1..IV; LY61..TOY..TB..ST..IV; LY61..TOY..WT2..IV;LY61..DYN..TB..15T..IV199210-199301

82122WIRE, ENGINE, NO.2

main82122-95010iLY5#,61198808-199505

82203WIRE SUB-ASSY, ALTERNATOR

main82203-25011iLY5#,61199109-199309

main82203-25012iLY5#,61199309-199505

main82203-25021iLY51,61..15T..WT1..IV; LY61..TB..15T..IV199109-199210

main82203-25022iLY51,61..15T..WT1..IV; LY61..TB..15T..IV199309-199505

main82203-25030iYY52,61199309-199505

main82203-95013iLY5#,6#198708-198809

main82203-95015iYY5#,61198708-198910

main82203-95016iLY50..T2..ST..IV; LY51,6#..15T..WT1..IV; LY6#..TB..15T..IV;LY50..15T..WT1..IV198708-198809

main82203-95017iLY5#,61198809-198910

main82203-95018iLY50..T2..ST..IV; LY51,61..15T..WT1..IV; LY61..TB..15T..IV198809-198910

main82203-95019iLY5#,61198910-199109

main82203-95020iLY50..T2..IV;LY61..TS..15T..ST..IV; LY51,61..15T..WT1..IV; LY61..TB..15T..IV198910-199109

main82203-95021iYY5#,61198910-199309

82210CFUSIBLE LINK

main90982-08189iLY5#,6#,YY5#,61198708-198910

main90982-08202iLY50..T2..IV; LY51..WT1..IV;LY61..DYN..15T..WT1..IV; LY51;LY61..DYN..15T..ST;LY61..TOY..(T3,TW)..ST;LY61..TOY..T2..ST..CBU;LY61..DYN..TB..15T..WT1;LY61..(T4,TW)..(WT1,WT2); LY61..TOY..15T..WT1..IV; LY61..TOY..TB..ST..IV; LY61..TOY..WT2..IV;LY61..DYN..TB..15T..IV; LY61..TS..15T..ST..IV198910-199109

main90982-08203iLY50; LY51,61..15T..WT1..IV; LY51..DYN..ST..IV; LY61..125;LY51..TOY..ST..IV;LY51,61..15T..CBU; LY61..TOY..TB..ST..IV; LY61..TOY..WT2..IV;LY61..DYN..TB..15T..IV; LY61..TS..15T..ST..IV198912-199109

main90982-08228iLY5#,61199309-199505

main90982-08253iLY50..T2..IV; LY51..DYN..ST..IV; LY61..125;LY51..TOY..ST..IV;LY51,61..15T..CBU; LY61..TOY..TB..ST..IV; LY61..TOY..WT2..IV;LY61..DYN..TB..15T..IV; LY61..TS..15T..ST..IV198910-198912

82305WIRE SUB-ASSY, TO TACHOGRAPH

main82305-25010iLY51..IV;LY61..(T2,T4)..IV199301-199309

main82305-25011iLY51..IV;LY61..(T2,T4)..IV199309-199505

82670BLOCK ASSY, JUNCTION, NO.1

main82670-95A00iLY51,61..15T..WT1..IV; LY61..TOY..TB..ST..IV; LY61..TOY..WT2..IV;LY61..DYN..TB..15T..IV199210-199301

85999UBRACKET, RELAY BLOCK

main85999-95011iLY51,61..15T..WT1..IV; LY61..TOY..TB..ST..IV; LY61..TOY..WT2..IV;LY61..DYN..TB..15T..IV199301-199309

9011908063

main90119-08063

9011908827

main90119-08827

9161140812

main91611-40812

9161140816

main91611-40816

9161160812

main91611-60812

9161160816

main91611-60816

9162141014

main91621-41014

9165140616

main91651-40616

9412040600

main94120-40600

19 parts on this diagram · 6 diagrams in section
