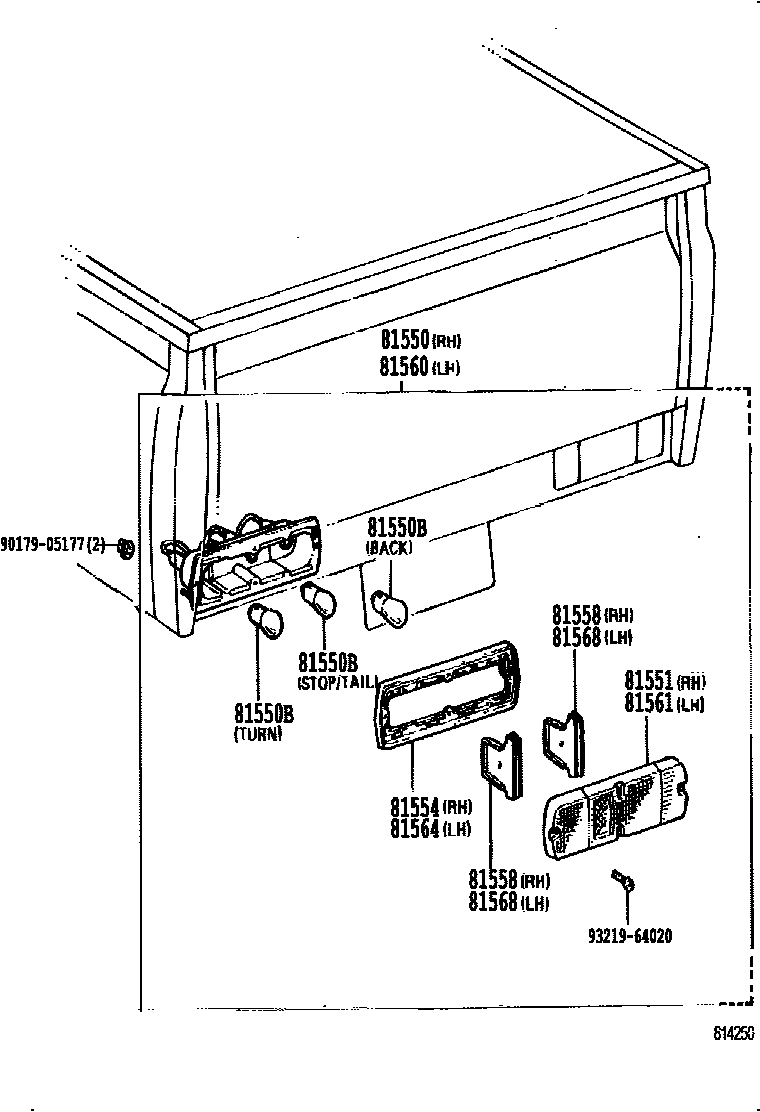

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-95A10iLY5#,6#,YY5#,61198708-199505

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iLY5#,6#,YY5#,61198708-199505

main99132-21210×2iLY5#,6#,YY5#,61198708-199505

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY5#,6#,YY5#,61198708-199505

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-25060iLY5#,6#,YY5#,61198708-199505

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060×2iLY5#,6#,YY5#,61198708-199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-95A10iLY5#,6#,YY5#,61198708-199505

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY5#,6#,YY5#,61198708-199505

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-25040iLY5#,6#,YY5#,61198708-199505

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060×2iLY5#,6#,YY5#,61198708-199505

9017905177

main90179-05177

9321964020

main93219-64020

11 parts on this diagram · 1 diagram in section
