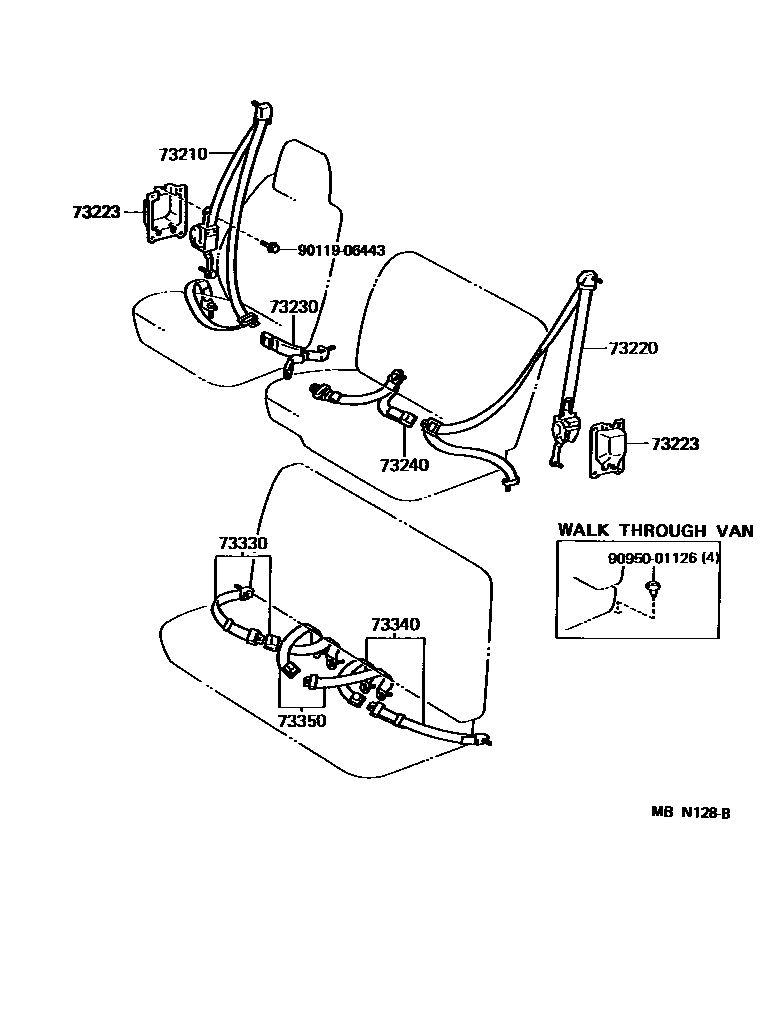

SEAT BELT

0001 1 0002 1

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-95420-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main73210-95420-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main73210-95420-B1iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-95420-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main73210-95420-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main73210-95420-B1iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

73223COVER, SEAT BELT RETRACTOR

main73223-95400×2iLY50,6#,YY5#,61..TW198708-199505

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-37050-B0iLY5#,61,YY52,61199309-199505

GRAY,TRIM1#

main73230-37070-B0iLY61..15T..WT1..IV199309-199505

main73230-95419-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main73230-95419-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main73230-95419-B1iLY5#,61,YY5#,61199109-199309

GRAY,TRIM1#

main73230-95422-04iLY6#..TOY..15T..WT1..IV198708-199109

main73230-95422-06iLY6#..DYN..15T..WT1..IV198708-199109

main73230-95422-B1iLY61..15T..WT1..IV199109-199309

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-95421-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main73240-95421-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main73240-95421-B2iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-95401-04iLY50,6#,YY51,61..TOY..TW198708-199109

BLUE,TRIM8#

main73330-95401-06iLY50,6#,YY51,61..DYN..TW198708-199109

BROWN,TRIM4#

main73330-95401-B1iLY50,61,YY51,61..TW199109-199309

GRAY,TRIM1#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-95401-04iLY50,6#,YY51,61..TOY..TW198708-199109

BLUE,TRIM8#

main73330-95401-06iLY50,6#,YY51,61..DYN..TW198708-199109

BROWN,TRIM4#

main73330-95401-B1iLY50,61,YY51,61..TW199109-199309

GRAY,TRIM1#

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-37070-B0iLY50,61,YY52,61..TW199309-199505

GRAY,TRIM1#

main73350-95402-04iLY50,6#,YY51,61..TOY..TW198708-199109

BLUE,TRIM8#

main73350-95402-06iLY50,6#,YY51,61..DYN..TW198708-199109

BROWN,TRIM4#

main73350-95402-B1iLY50,61,YY51,61..TW199109-199309

GRAY,TRIM1#

9011906443

main90119-06443

9095001126

main90950-01126

10 parts on this diagram · 2 diagrams in section
