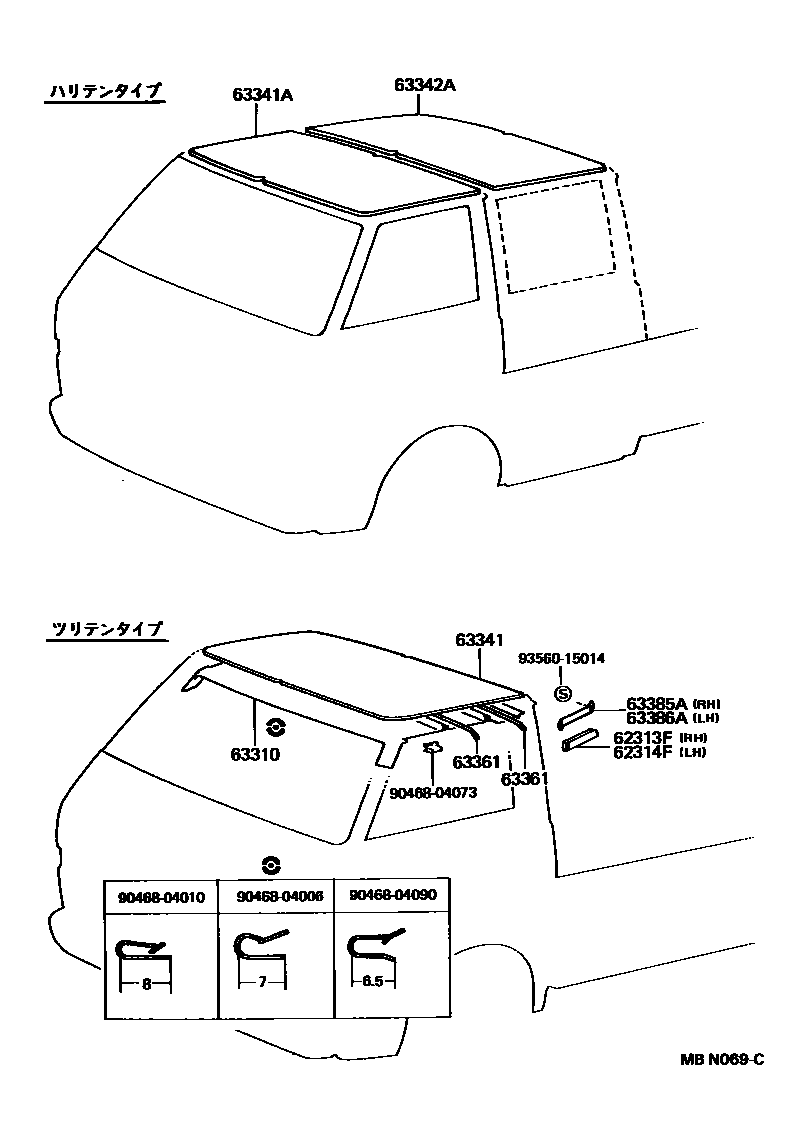

ROOF HEADLINING & SILENCER PAD

62313FCLIP, ROOF SIDE RETAINER RH

main62313-95407iLY5#,6#,YY5#,61..T2,T4198708-199109

main62313-95407-B0iLY5#,61,YY5#,61..T2,T4199109-199309

62314FCLIP, ROOF SIDE RETAINER LH

main62313-95407iLY5#,6#,YY5#,61..T2,T4198708-199109

main62313-95407-B0iLY5#,61,YY5#,61..T2,T4199109-199309

63310HEADLINING ASSY, ROOF

main63310-95400-03iLY5#,6#,YY5#,61..TOY..(T2,T4)198708-199109

main63310-95400-06iLY5#,6#,YY5#,61..DYN..(T2,T4)198708-199109

63341PAD, ROOF SILENCER, NO.1

main63341-95416iLY5#,61,YY52,61..T1,T2,T3,T4199309-199505

63341ASILENCER, ROOF, NO.1

main63341-95409-03iLY60..TOY..15T..WT1..IV198801-198808

main63341-95409-06iLY5#,6#,YY5#,61..DYN..(T1,T2,T3,T4)198708-199109

BROWN,TRIM4#

main63341-95410-03iLY50,60,YY52,61..TOY..15T198708-198808

main63341-95410-06iLY50,60,YY52,61..DYN..15T198708-198808

main63341-95414-03iLY50,61,YY51,61..TOY..TW198808-199109

main63341-95414-06iLY50,61,YY51,61..DYN..TW198808-199109

main63341-95415-03iLY50,6#,YY51,61..TOY..TW198708-199109

GRAY,TRIM8#

main63341-95415-06iLY50,6#,YY51,61..DYN..TW198708-199109

BROWN,TRIM4#

63342ASILENCER, ROOF, NO.2

main63342-95404-03iLY50,6#,YY51,61..TOY..TW198708-199109

GRAY,TRIM8#

main63342-95404-06iLY50,6#,YY51,61..DYN..TW198708-199109

BROWN,TRIM4#

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-95403×2iLY5#,6#,YY5#,61..T2,T4198708-199109

63385ARETAINER, ROOF HEADLINING TRIM SIDE, RH

main63385-95400iLY5#,6#,YY5#,61..T2,T4198708-199109

63386ARETAINER, ROOF HEADLINING TRIM SIDE, LH

main63386-95400iLY5#,6#,YY5#,61..T2,T4198708-199109

9046804006

main90468-04006

9046804010

main90468-04010

9046804073

main90468-04073

9046804090

main90468-04090

9356015014

main93560-15014

14 parts on this diagram · 1 diagram in section
