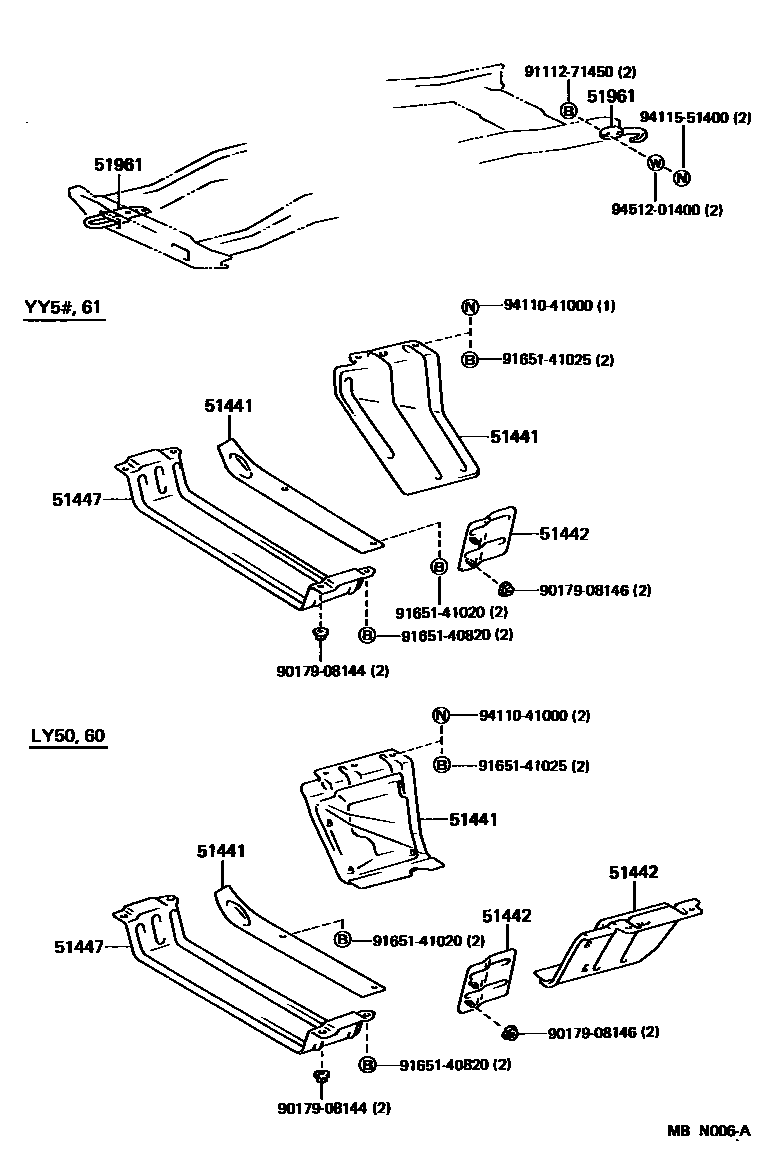

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51406-25030iLY5#,61..125,15T; LY50..10T198808-199505

main51408-25010iLY50,60198708-198808

main51441-25130iYY5#,61198708-199505

main51441-25160iLY50,60,YY5#,61198708-198808

main51441-25170iLY5#,61,YY5#,61..MTM198808-199505

main51441-25190iLY5#,61..125,15T198808-199505

main51441-25200iYY61..ATM199406-199505

51442COVER, ENGINE UNDER, NO.2

main51407-25030iLY5#,61..125,15T; LY50..10T; LY61..TS..IV;LY61..T3..TB;LY61..TB..ST..IV;LY61..TB..15T..(WT1,WT2)198808-199505

main51409-25010iLY50,60198708-198808

main51442-25050iYY5#,61198808-199505

main51442-25070iLY5#,61; YY5#,61198808-199505

main51442-25090iLY5#,61..125,15T198808-199505

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25070iLY50,60,YY5#,61198708-198808

main51447-25080iLY5#,61198808-199505

51961HOOK, NO.1

main51961-25020iLY5#,6#,YY5#,61198708-199505

FR

main51961-36010iLY5#,6#,YY5#,61198708-199505

RR

9017908144

main90179-08144

9017908146

main90179-08146

9111271450

main91112-71450

9165140820

main91651-40820

9165141020

main91651-41020

9165141025

main91651-41025

9411041000

main94110-41000

9411551400

main94115-51400

9451201400

main94512-01400

13 parts on this diagram · 2 diagrams in section
