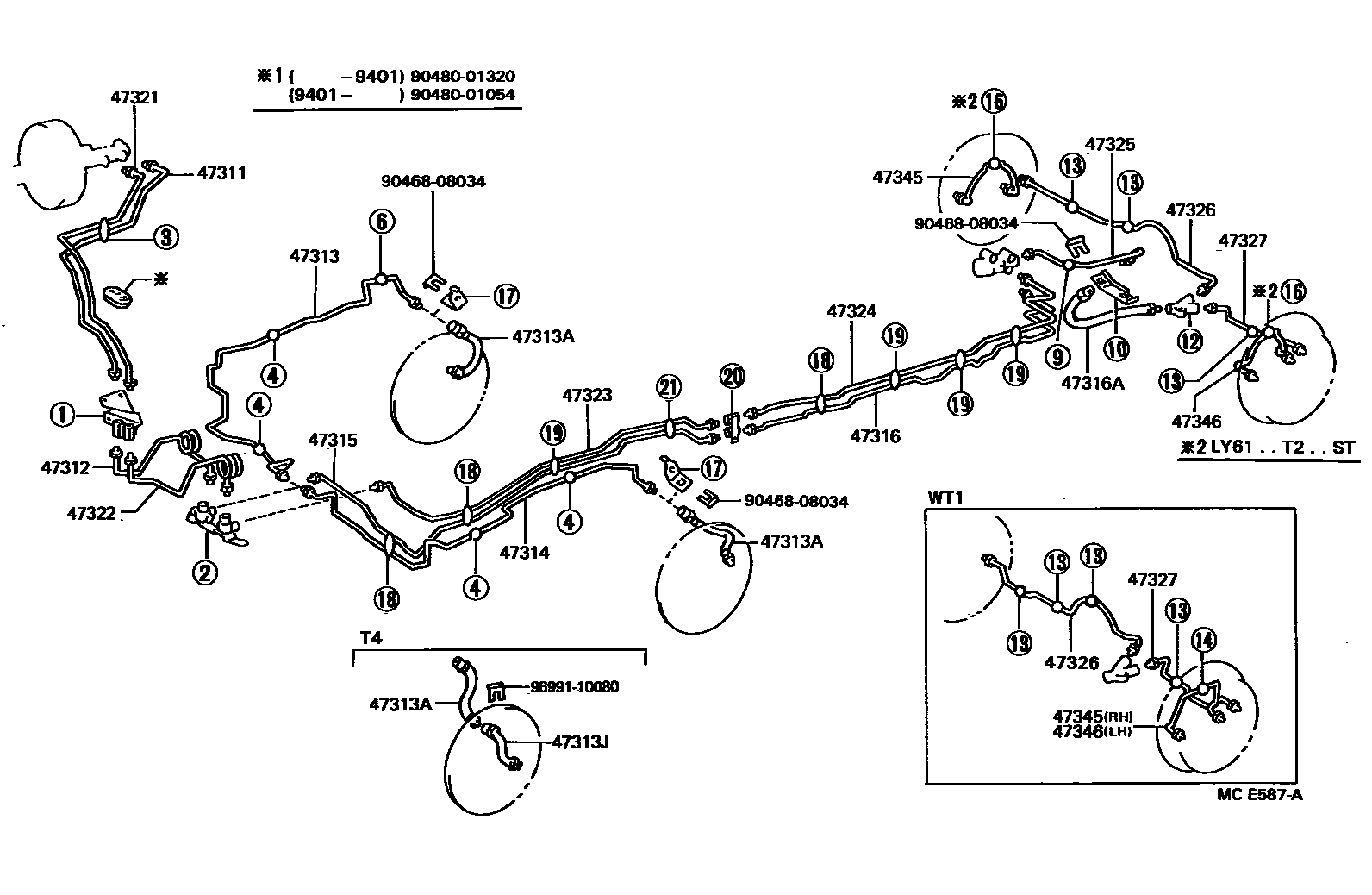

BRAKE TUBE & CLAMP

0001 1LSPV TYPE 0002 1LSP & BV TYPE 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-25180iLY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL)198708-199505

main47311-25200iYY61..LPG;LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)198708-199505

47312TUBE, FRONT BRAKE, NO.2

main47312-25090iLY5#,6#,YY5#,61198708-199505

47313TUBE, FRONT BRAKE, NO.3

main47313-25110iLY50,60,YY5#,61198708-198808

main47313-25111iLY5#,61,YY5#,61198808-199505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02562×2iLY6#,YY61..WT2198708-199210

main90947-02563×2iLY50,60,YY51..T2..ST198708-198808

main90947-02621×2iLY50,61,YY5#..T2..ST199006-199505

main96940-33405×2iLY61,YY61..WT2199210-199505

main96940-33955×2iLY61..TS;LY61..T3..TB;LY61..TB..WT1;LY50,YY5#..WT1;LY51,YY61..ST,WT1;LY50,YY5#..T1,T3,TW198808-199505

main96940-34005×2iLY60..TS;LY60..T3..TB;LY60..TB..WT1;LY50,YY51..WT1;YY52,61..ST,WT1;LY50,YY51..T1,T3,TW198708-198808

main96940-34105×2iLY50,61,YY51..T2..ST198808-199006

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02516×2iLY6#,YY61..WT2198708-199505

47314TUBE, FRONT BRAKE, NO.4

main47314-25140iLY50,60,YY5#,61198708-198808

main47314-25141iLY5#,61,YY5#,61198808-199505

47315TUBE, FRONT BRAKE, NO.5

main47315-25070iLY60..T2..ST;LY50..TB..WT1;LY60,YY52,61..WT1,WT2;LY50,YY51..TS..(125,15T)198708-198808

47316TUBE, FRONT BRAKE, NO.6

main47316-25110iLY6#,YY61..(T2,T4)..(ST,WT2)198708-199505

main47316-25120iLY51..WT1;LY50,YY5#..TS;YY52..TB..WT1198808-199505

main47316-25130iLY6#,YY61..WT1198708-199505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02621iLY61..T2..ST199006-199505

main90947-02646iLY61..TS;LY61..T3..TB;LY61..TB..WT1;LY50,YY5#..WT1;LY51,YY61..ST,WT1;LY50,YY5#..T1,T3,TW199006-199505

main90947-02647iLY61,YY61..WT2;LY50,YY5#..T2..ST199006-199505

main96940-33705iLY6#..TS;LY6#..T3..TB;LY6#..TB..WT1;LY50,YY51..WT1;LY50,YY51..T1,T3,TW;LY51,YY52,61..ST,WT1198708-199006

main96940-33905iLY6#,YY61..WT2;LY50,YY51..T2..ST198708-199006

main96940-34105iLY6#..T2..ST198708-199006

47321TUBE, REAR BRAKE, NO.1

main47321-25040iLY6#..T2..ST;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T);LY51,6#,YY61..WT1..(CBR,DSL)198708-199505

main47321-25060iYY61..LPG;LY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)198708-199505

47322TUBE, REAR BRAKE, NO.2

main47322-25070iLY50,60,YY5#,61198708-198808

main47322-25071iLY5#,61,YY5#,61198808-199505

47323TUBE, REAR BRAKE, NO.3

main47323-25110iLY5#,6#,YY5#,61198708-199505

47324TUBE, REAR BRAKE, NO.4

main47324-25220iYY52..WT1;LY50..TB..WT1;LY50,YY51..TS..(125,15T)198708-198808

main47324-25230iLY6#,YY61..WT1198708-199505

main47324-25241iLY6#,YY61..ST,WT2198708-199505

main47324-25250iLY51,YY52..15T..ST198808-199505

47325TUBE, REAR BRAKE, NO.5

main47325-25190iLY50,60,YY5#,61..WT1;LY50,YY51..(T1,T3)..125198708-198808

main47325-25200iLY6#,YY61..(T2,T4)..(ST,WT2)198708-199505

main47325-25210iYY52..15T..ST;LY51,61,YY61..(T3,TW)..ST198808-199505

main47325-25220iLY50,YY5#..T2..ST198708-199505

47326TUBE, REAR BRAKE, NO.6

main47326-25150iLY50,YY5#..(T1,T3,TW)..TS198808-199505

main47326-25160iYY52..15T..ST;LY51,61,YY61..ST198808-199505

main47326-25180iYY61..ATM;LY50,YY5#..125..WT1198708-199505

main47326-25190iLY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1198708-199505

main47326-25210iLY6#,YY61..WT2198708-199505

main47326-25220iLY50,YY5#..T2..ST198708-199505

47327TUBE, REAR BRAKE, NO.7

main47327-25110iLY50,YY5#..(T1,T3,TW)..TS198808-199505

main47327-25120iLY60,YY52,61..ST;LY50,YY51..(10T,15T)..ST198708-198808

main47327-25140iYY61..ATM;LY50,YY5#..125..WT1198708-199505

main47327-25150iLY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1198708-199505

main47327-25170iLY6#,YY61..WT2198708-199505

main47327-25180iLY50,YY5#..T2..ST198708-199505

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36060iLY6#,YY61..WT2198708-199505

main47345-25030iYY52..15T..ST;LY51,61,YY61..ST198808-199505

main47345-25040iLY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1198708-199505

47346TUBE, WHEEL CYLINDER, REAR LH

main47344-36060iLY6#,YY61..WT2198708-199505

main47345-25030iYY52..15T..ST;LY51,61,YY61..ST198808-199505

main47346-25020iLY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1198708-199505

9046808034

main90468-08034

9048001054

main90480-01054

9048001320

main90480-01320

9699110080

main96991-10080

22 parts on this diagram · 4 diagrams in section
