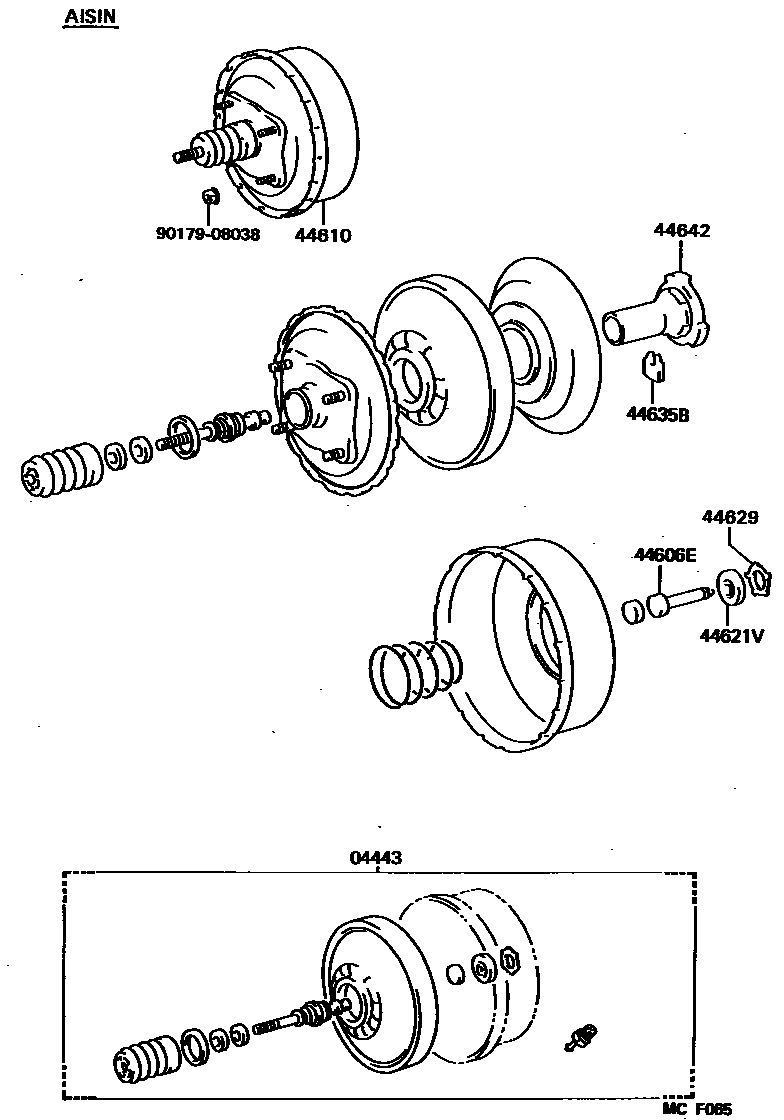

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-25110iLY61..T2;LY60..T2..ST;LY51,60..WT1;LY50..TB..WT1;LY61..TB..125;LY50..TS..(125,15T)198708-199505

main04443-25120iYY51..125;YY52..15T..WT1;YY61..TB..WT1..CBR;YY61..TS..15T..WT1198708-199505

main04443-25130iYY52..15T..ST;YY51..10T..CBU;YY61..(ST,WT2)..CBU;YY61..15T..(ST,WT2)..IV198708-199505

main04443-25140iLY50..15T..ST..IV;LY50..(10T,15T)..ST..CBU;LY51,6#..(T3,T4,TW)..(ST,WT2)198708-199505

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

44610BOOSTER ASSY, BRAKE

main44610-25130iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

main44610-25150iLY5#,YY5#..(10T,15T)..ST;LY6#,YY61..(T3,T4,TW)..(ST,WT2)198708-199505

44621VSEAL, BOOSTER BODY

main44621-28120iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

44629RING, CIRCULAR INTERNAL

main44628-28120iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

44635BKEY, VALVE STOPPER

main44635-36240iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

44642PISTON, BRAKE BOOSTER

main44642-36260iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

9017908038

main90179-08038

8 parts on this diagram · 4 diagrams in section
