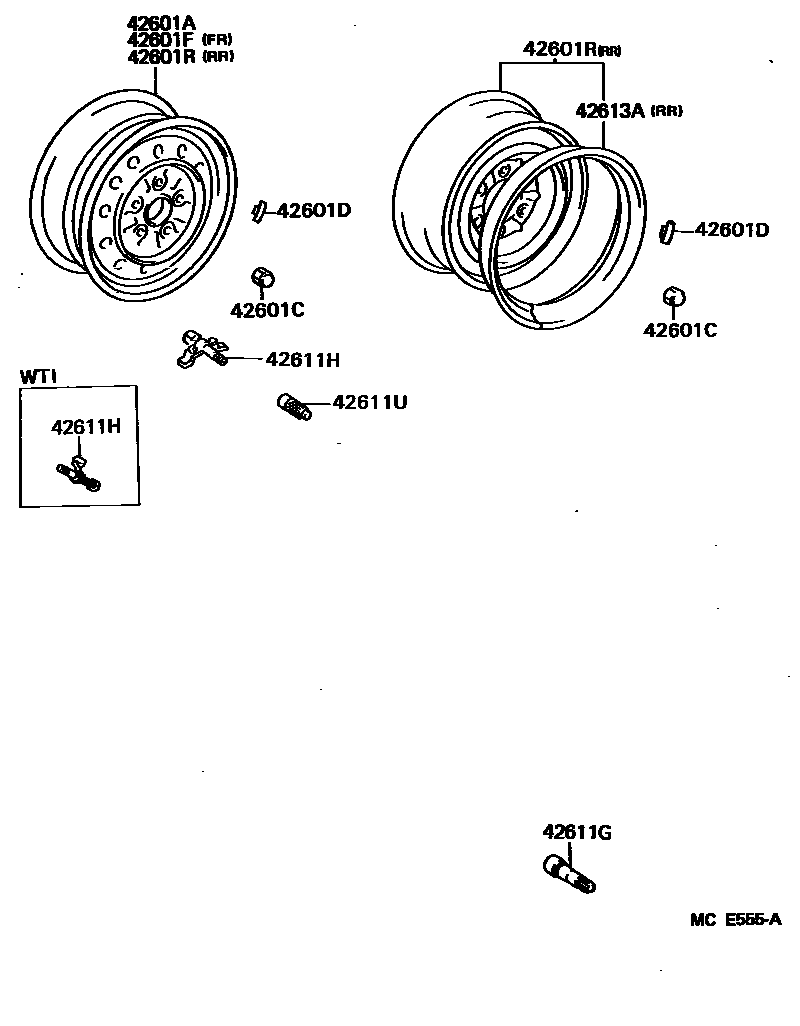

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42601-25190-03iLY5#,6#,YY5#,61..(T3,TW)..(10T,15T)198708-199008

main42601-25220iLY5#,6#,YY5#,61..WT1198708-199008

main42601-25220-03iLY50..125..WT1; YY51..WT1198708-199008

main42601-25240-03iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

main42601-25250-03iLY6#,YY61..WT2198708-199505

main42601-25260iLY51,61,YY52,61..TS..15T..WT1..IV; LY61..TB..ST..IV198911-199505

main42601-25260-03×2iLY50,YY5#..(T1,T3)..125198708-199505

main42601-25270iLY50,YY51..T2..ST198708-199505

main42601-25270-03×2iLY50,YY5#..T2..ST198708-199505

main42601-25280iLY6#..T2..ST198708-199505

main42601-25280-03iLY6#..T2..ST198708-199505

main42610-25050-03iLY5#,61,YY5#,61..DYN..(T3,TW)..(10T,15T)..CBU; LY51,61,YY52,61..DYN..T3..IV; LY61,YY61..125..ST;LY5#,61,YY5#,61..TOY..(T3,TW)..(10T,15T)199008-199109

42601CNUT, HUB (FOR AXLE)

main90942-01004×24iLY5#,6#,YY5#,61..WT1; LY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST; LY6#..T2..ST198708-199505

main90942-01009×6iLY5#,6#,YY5#,61..WT1198708-199505

RR,LH

main90942-01010×6iLY61,YY61..WT2199008-199505

RR,RH

main90942-01011×6iLY6#,YY61..WT2198708-199505

RR,LH

main90942-01012×6iLY6#,YY61..WT2198708-199505

FR,RH

main90942-01013×6iLY6#,YY61..WT2198708-199505

FR,LH

main90942-01051×22iLY50,YY5#..(T1,T3)..125; LY50,YY5#..T2..ST; LY6#..T2..ST;LY5#,6#,YY5#,61..WT1198708-199505

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03002iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03003iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03004iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03005iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03006iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03017iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03020iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03022iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03025iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03027iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03029iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03031iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03037iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03041iLY6#..T2..ST;LY50,YY52..TB..WT1;LY51,6#,YY61..WT1,WT2;LY50,YY5#..TS..(125,15T)198708-199505

main90942-03047iLY50,6#,YY5#..T2..ST198708-199505

main90942-03049iLY50,6#,YY5#..T2..ST198708-199505

main90942-03051iLY50,6#,YY5#..T2..ST198708-199505

main90942-03052iLY50,6#,YY5#..T2..ST198708-199505

main90942-03064iLY50,6#,YY5#..T2..ST198708-199505

main90942-03076iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03077iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main90942-03078iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

42601FWHEEL, DISC (FOR FRONT)

main42601-25180-03×2iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198708-199505

main42601-25220×2iLY50..125..WT1; YY51..WT1198708-199008

main42601-25220-03×2iLY5#,61,YY5#,61..WT1199207-199505

main42601-25240-03×2iLY6#..T2..ST;LY51,6#,YY61..WT1;LY50,YY52..TB..WT1;LY50,YY5#..TS..(125,15T)198708-199505

main42601-25250-03×2iLY6#,YY61..WT2198708-199505

main42601-25260×2iLY51,61,YY52,61..TS..15T..WT1..IV; LY61..TB..ST..IV198911-199505

main42601-25260-03×2iLY50,YY5#..(T1,T3)..125198708-199505

main42601-25270-03×2iLY50,YY5#..T2..ST198708-199505

main42601-36400-03×2iLY61,YY61..WT2..IV198911-199505

42601RWHEEL, DISC (FOR REAR)

main42601-25180-03×2iLY5#,61,YY5#,61..(T3,TW)..(10T,15T); LY61,YY61..125..ST199008-199505

main42601-25190-03×2iLY5#,61,YY5#,61..DYN..(T3,TW)..(10T,15T)199008-199109

main42601-25220×4iLY5#,6#,YY5#,61..WT1; LY50..125..WT1; YY51..WT1198708-199008

main42601-25220-03×4iLY50..125..WT1; YY51..WT1198708-199008

main42601-25240-03×2iLY50,YY5#..(T1,T3)..125198708-199505

main42601-25250-03×4iLY6#,YY61..WT2198708-199505

main42601-25260-03×2iLY50,YY5#..(T1,T3)..125198708-199505

main42601-25270-03×2iLY50,YY5#..T2..ST198708-199505

main42601-25280-03×2iLY6#..T2..ST198708-199505

main42610-25050-03×2iLY50,YY52..10T;YY52..15T..ST..CBU;LY51,61,YY51,61..(T3,TW)..(10T,15T)..CBU; LY51,61,YY52,61..T3..15T..IV198911-199505

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×3iLY50,6#,YY51..T2..ST198708-199010

main90942-05023×3iLY50,6#,YY5#..T2..ST198708-199505

42611HEXTENSION, VALVE

main90942-05015×2iYY51..10T..IV;LY5#,6#,YY5#,61..WT1198708-199505

main90942-05024×2iLY6#,YY61..WT2198708-199505

42611UCAP, TIRE VALVE

main90942-05013×2iLY6#,YY61..WT2198708-199505

42613ARING, DISC WHEEL SIDE

main42613-35010×3iLY61,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST198911-199505

9 parts on this diagram · 1 diagram in section
