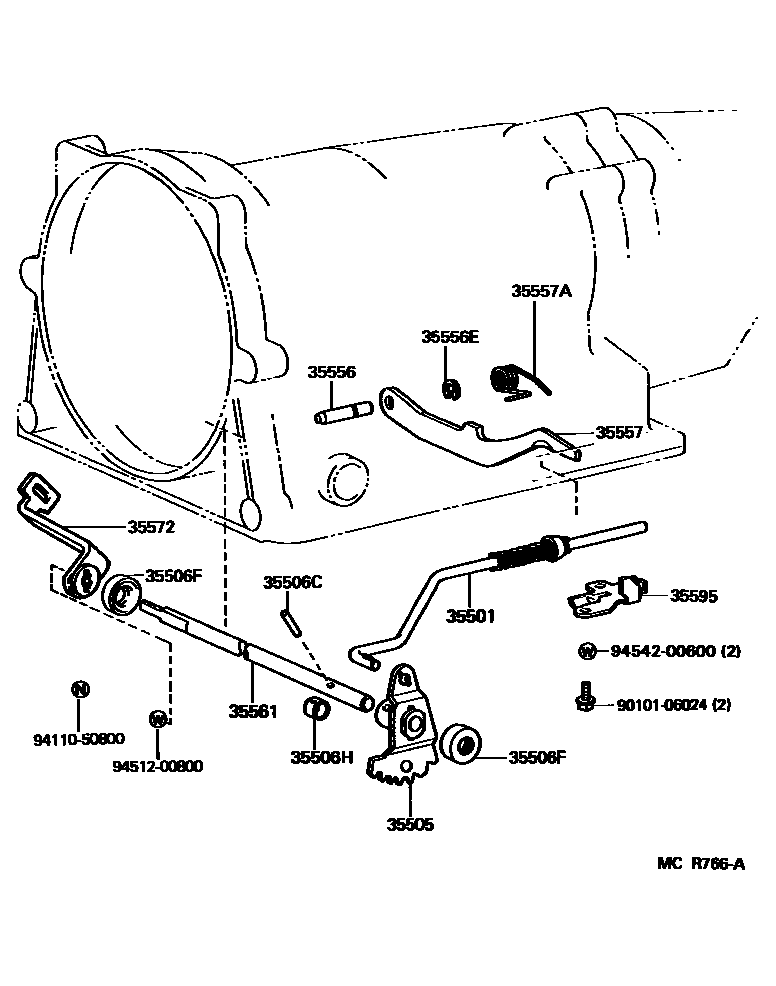

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A43D 0002 1A43D

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iYY61..ATM199406-199505

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22050iYY61..ATM199406-199505

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iYY61..ATM199406-199505

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iYY61..ATM199406-199505

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iYY61..ATM199406-199505

35556SHAFT, PARKING LOCK PAWL

main35556-26010iYY61..ATM199406-199505

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iYY61..ATM199406-199505

35557PAWL, PARKING LOCK

main35557-26020iYY61..ATM199406-199505

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iYY61..ATM199406-199505

35561SHAFT, MANUAL VALVE LEVER

main35561-40010iYY61..ATM199406-199505

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-25010iYY61..ATM199406-199505

35595BRACKET, PARKING LOCK PAWL

main35595-26010iYY61..ATM199406-199505

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 2 diagrams in section
