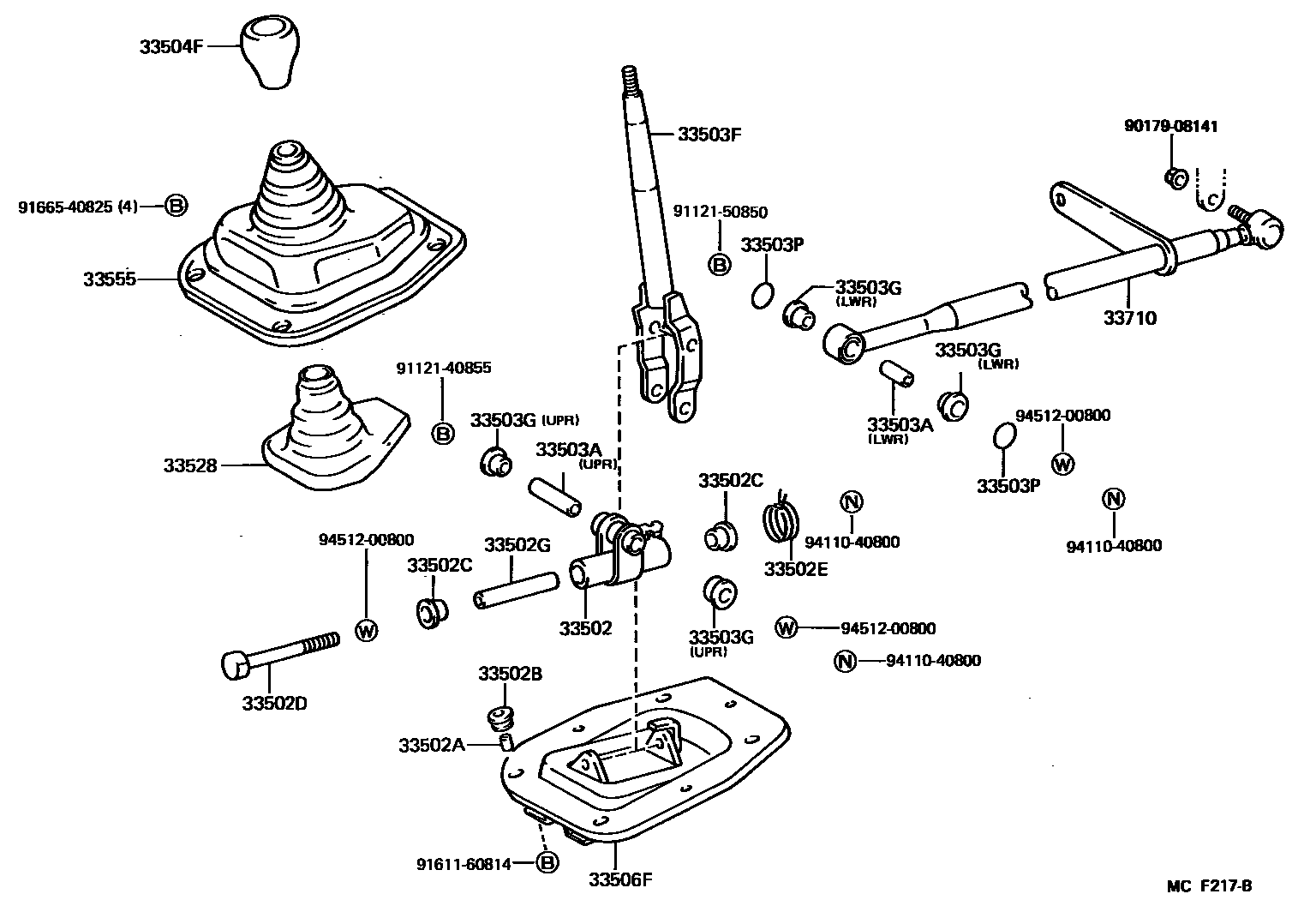

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-25010iLY5#,6#,YY5#,61198708-199406

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-10081×4iLY5#,6#,YY5#,61198708-199406

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-17018×4iLY5#,6#,YY5#,61198708-199406

33502CBUSH (FOR FLOOR SHIFT SETTING)

main90386-13007×2iLY5#,61,YY5#,61199307-199406

main90386-13192×2iLY5#,6#,YY5#,61198708-199307

33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)

main90101-08107iLY5#,61,YY52,61..MTM199406-199505

33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)

main90508-23094iLY5#,6#,YY5#,61198708-199406

33502GCOLLAR (FOR SHIFT LEVER PLATE)

main90387-08064iLY5#,6#,YY5#,61198708-199406

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08063iLY5#,6#,YY5#,61198708-199406

main90387-08065iLY5#,61,YY52,61..MTM199406-199505

main90387-08089iYY61..ATM199406-199505

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33501-25090iLY5#,61,YY5#,61199109-199406

main33503-25010iLY5#,6#,YY5#,61198708-199109

main33503-36110iYY61..ATM199406-199505

33503GBUSH(FOR SHIFT LEVER)

main90385-11003×2iYY61..ATM199406-199505

main90386-13007×2iLY5#,61,YY52,61..MTM199406-199505

main90386-13192×2iLY5#,6#,YY5#,61198708-199307

main90389-11002×2iLY5#,6#,YY5#,61198708-199406

33503PRING, O(FOR SHIFT LEVER)

main96711-24018×2iLY5#,6#,YY5#,61198708-199406

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main33504-24010-34iLY5#,61,YY5#,61..TOY198808-199109

DEEP BLUE,TRIM8#

main33504-24010-44iLY50,60,YY5#,61..TOY198708-198808

BLUE,TRIM8#

main33504-24010-48iLY5#,61,YY5#,61199109-199308

GRAY,TRIM1#

main33504-35030-B1iLY5#,61,YY5#,61..MTM199308-199505

BLUISH GRAY,TRIM1#

main33504-36070-B0iYY61..ATM199406-199505

GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-25010iLY5#,6#,YY5#,61198708-199406

main33570-26020iYY61..ATM199406-199505

33528COVER, CONTROL SHAFT

main33528-25010iLY5#,6#,YY5#,61198708-199109

33555BOOT, SHIFT LEVER

main33555-25010iLY5#,6#,YY5#,61198708-199002

main33555-25011iLY5#,61,YY5#,61199002-199109

main33555-25030iLY5#,6#,YY5#,61198708-199002

main33555-25031iLY5#,61,YY5#,61199002-199109

main33555-26020iYY61..ATM199406-199505

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-25141iLY5#,6#,YY5#,61198708-198811

main33710-25142iLY5#,61,YY5#,61198811-199406

9017908141

main90179-08141

9112140855

main91121-40855

9112150850

main91121-50850

9161160814

main91611-60814

9166540825

main91665-40825

9411040800

main94110-40800

9451200800

main94512-00800

23 parts on this diagram · 6 diagrams in section
