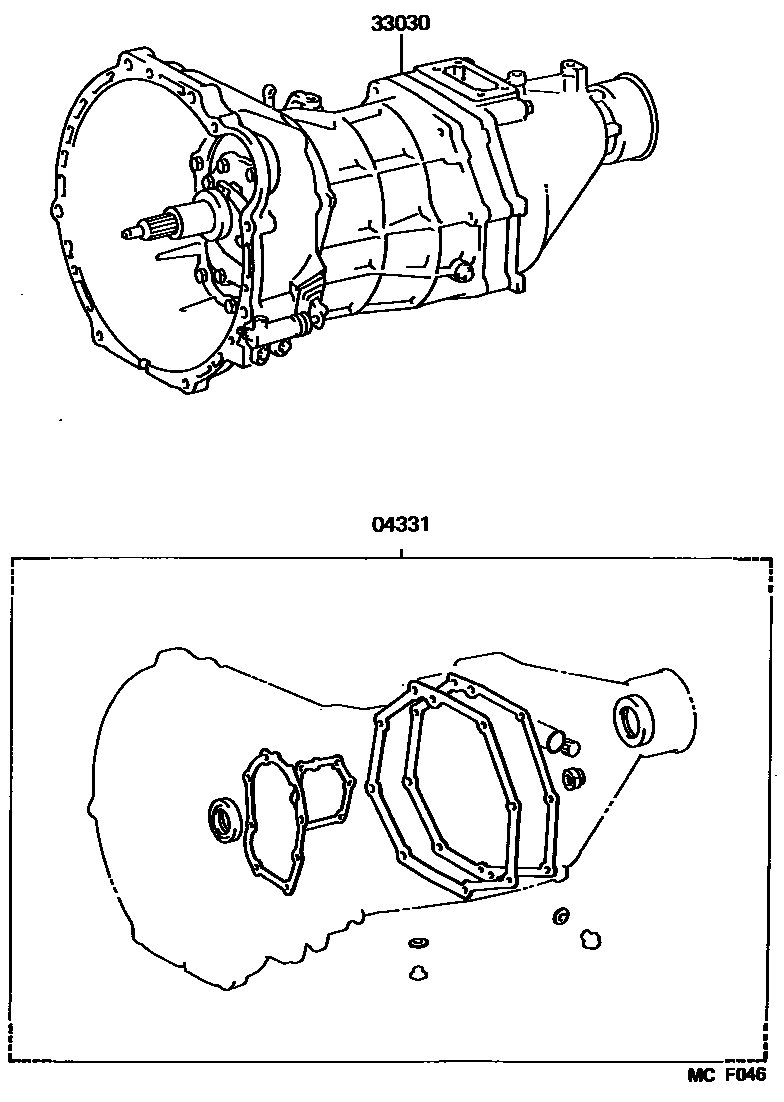

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G5# 0002 1R45#

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25021iLY51,61,YY61..MTM; YY52..15T199109-199505

main04331-35101iYY51..125198708-198808

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-26420iYY51..125198708-198808

main33030-26531iLY50198808-198811

main33030-26551iLY50..T1,T3199309-199505

main33030-26916iLY50198811-199505

main33030-26922iLY50..125198708-198808

main33030-26923iLY50..(T1,T3)..125198708-198808

main33030-26925iYY52..(T1,T3)..125199309-199505

main33030-26926iYY52..125..WT1199309-199505

main33030-26937iLY50..T1,T3198808-199309

main33120-25280iLY50..15T; LY60..15T..WT1; LY60..T3,T4,TW198708-198808

main33120-25281iLY51,61..WT1199309-199405

main33120-25290iLY51,61..ST198808-199309

main33120-25291iLY51,61..ST199309-199405

main33120-25310iYY51..10T198708-198808

main33120-25320iYY52,61199109-199309

main33120-25321iYY61;YY52..15T199309-199405

main33120-25370iLY61..WT2198808-199309

main33120-25371iLY61..WT2199309-199405

main33120-25460iLY61..WT2199405-199505

main33120-25470iLY51,61..WT1199405-199505

main33120-25480iLY51,61..ST199405-199505

main33120-25500iYY52..15T;YY61..MTM199405-199505

2 parts on this diagram · 2 diagrams in section
