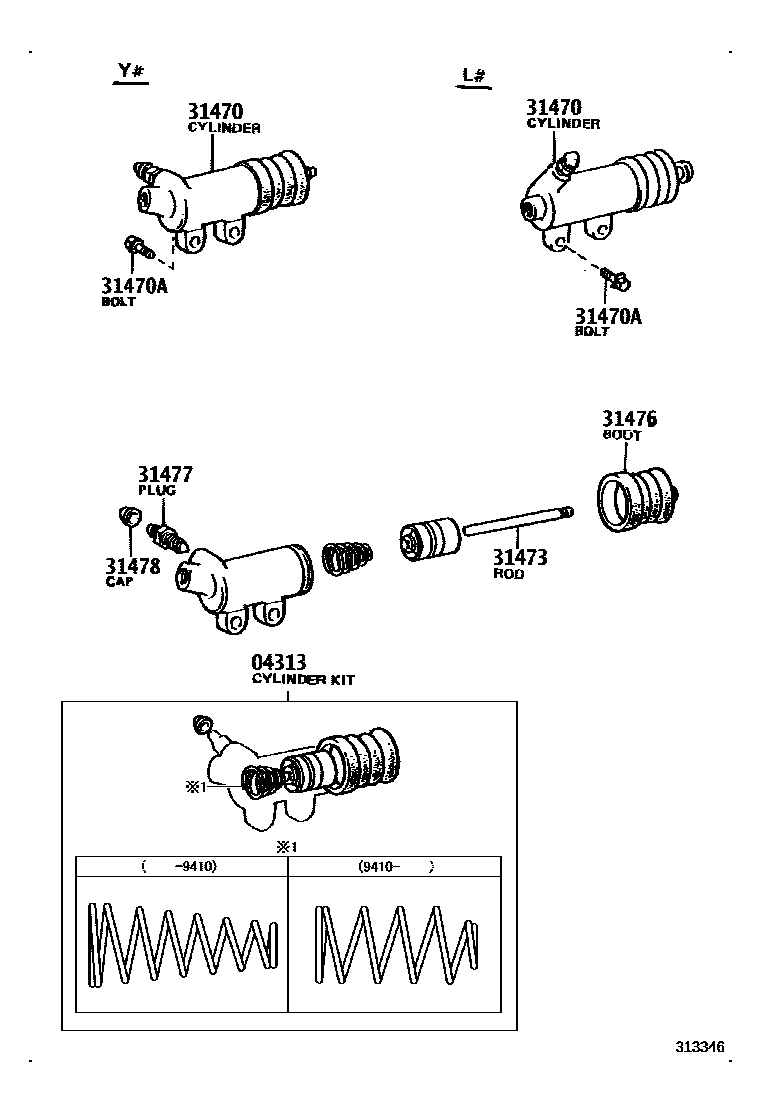

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLY5#,61,YY5#,61199109-199304

main04313-17010iLY5#,61,YY52,61..MTM199410-199505

main04313-22020iLY60;LY50..10T,15T198806-198808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLY51,61198808-199304

main31470-30220iLY50..125198708-198806

main31470-30221iLY50198808-199405

main31470-30222iLY50199405-199505

main31470-30260iYY51..125198806-198808

main31470-35050iYY51..125198708-198806

main31470-35070iYY61;YY5#..10T,15T198708-198806

main31470-35071iYY52,61198808-199107

main31470-35100iYY52..15T;YY61..MTM199410-199505

main31470-35110iLY51,61199304-199505

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820×2iLY60,YY61;LY50,YY5#..10T,15T198708-198808

main91611-60825×2iLY50,YY5#..10T,125198808-199505

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iYY61..WT2;LY5#,61,YY51199107-199109

main31473-35050iYY52..15T;LY5#,61,YY61..MTM199410-199505

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLY5#,6#,YY5#,61198708-199107

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLY5#,6#,YY5#,61198708-199107

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLY5#,6#,YY5#,61198708-199107

7 parts on this diagram · 1 diagram in section
