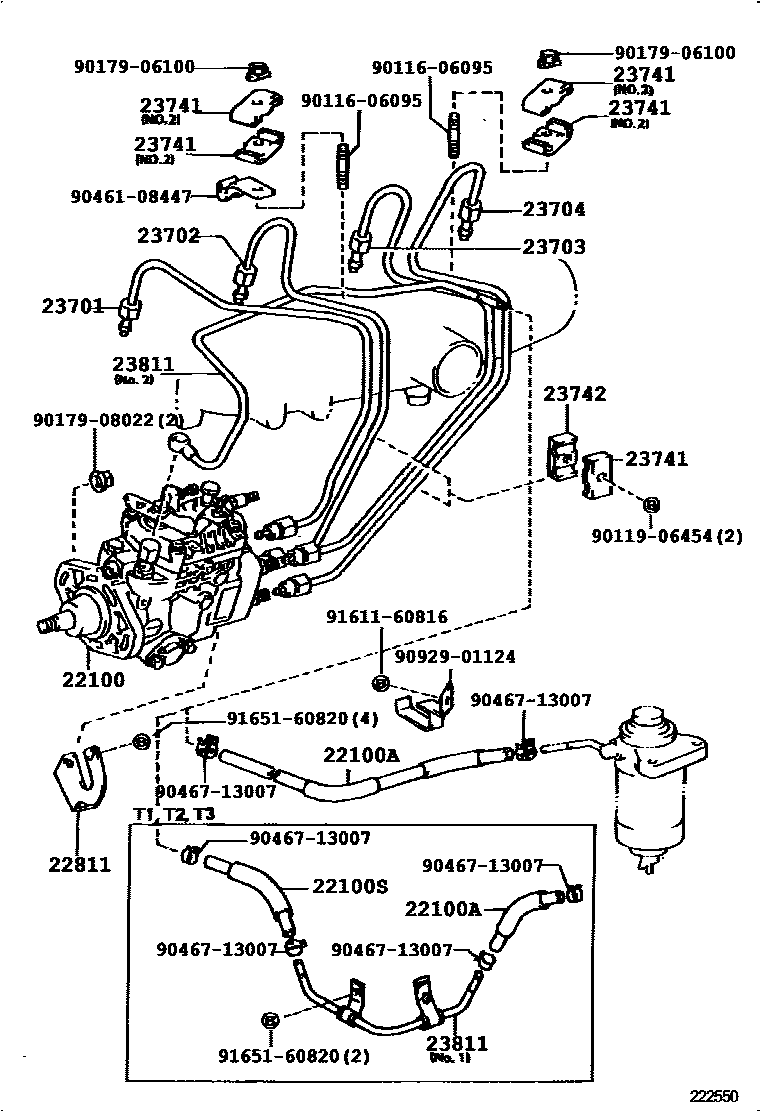

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54311i2L..LY50,60198708-198808

sub22100-54341

main22100-54730i2L..LY50198808-199505

main22100-54830i3L..LY51,61198808-199505

sub22100-54840

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14023i2L,3L..LY5#,6#..T1,T2,T3,T4198708-199505

main90447-14034i2L..LY50,60..TW198708-198808

main90447-14061i2L,3L..LY50,61..TW198808-199505

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-54010i2L,3L..LY5#,61..T1,T2,T3,T4198809-199505

main90447-14047i2L..LY50,60..T1,T2,T3,T4198708-198808

main90447-14059i2L,3L..LY5#,61..T1,T2,T3,T4198808-198809

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L..LY50,60198708-198808

sub22811-54041

main22811-54041i2L,3L..LY5#,61198808-199505

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54082i2L..LY50,60198708-198808

sub23701-54072

main23701-54110i2L,3L..LY5#,61198808-198908

sub23701-54140

main23701-54140i2L,3L..LY5#,61198908-199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54081i2L..LY50,60198708-198808

sub23702-54071

main23702-54110i2L,3L..LY5#,61198808-198908

sub23702-54140

main23702-54140i2L,3L..LY5#,61198908-199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050i2L..LY50,60198708-198808

main23703-54090i2L,3L..LY5#,61198808-198903

sub23703-54091

main23703-54091i2L,3L..LY5#,61198903-198908

sub23703-54100

main23703-54100i2L,3L..LY5#,61198908-199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050i2L..LY50,60198708-198808

main23704-54090i2L,3L..LY5#,61198808-198908

sub23704-54100

main23704-54100i2L,3L..LY5#,61198908-199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L,3L..LY5#,6#198708-199505

main23741-56010i2L,3L..LY5#,6#198708-199505

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L,3L..LY5#,6#198708-199505

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-54020i2L..LY50,60..T1,T2,T3,T4198708-198808

main23801-54060i2L,3L..LY5#,61..T1,T2,T3,T4198808-199505

main23811-54140i2L..LY50,60198708-198808

main23811-54160i2L,3L..LY5#,61198808-199505

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046108447

main90461-08447

9046713007

main90467-13007

9092901124

main90929-01124

9161160816

main91611-60816

9165160820

main91651-60820

20 parts on this diagram · 2 diagrams in section
