CARBURETOR ASSEMBLY

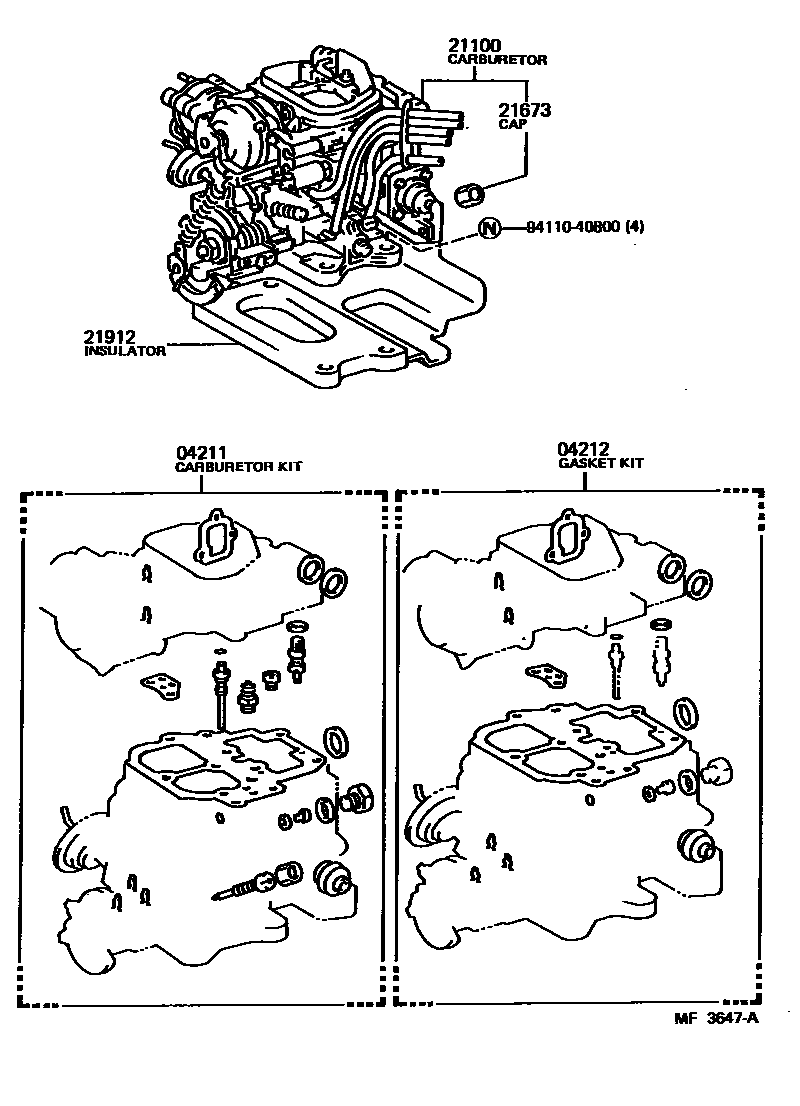

Parts diagram

04211CARBURETOR KIT

main04211-71080i198708-199003

main04211-71081i199003-199008

main04211-72140i198708-199003

main04211-72141i199003-199008

main04211-72300i199008-199208

main04211-72301i199208-199309

main04211-73450i199309-199505

04212GASKET KIT, CARBURETOR

main04212-72010i198708-199003

main04212-72011i199003-199008

main04212-72041i199008-199208

main04212-73061i198910-199003

main04212-73062i199003-199008

main04212-73063i199208-199505

main04212-73080i198708-198910

21100CARBURETOR ASSY

main21100-71131i198708-198808

main21100-71132i198808-199008

main21100-72200i198708-198808

main21100-72201i198808-199008

main21100-72380i199008-199111

main21100-72381i199111-199309

main21100-73450i199309-199505

21673CAP, IDLE LIMIT

main21673-13280i198708-199505

21912INSULATOR, CARBURETOR HEAT

main21912-72010i198708-198912

main21912-72011i198912-199505

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
