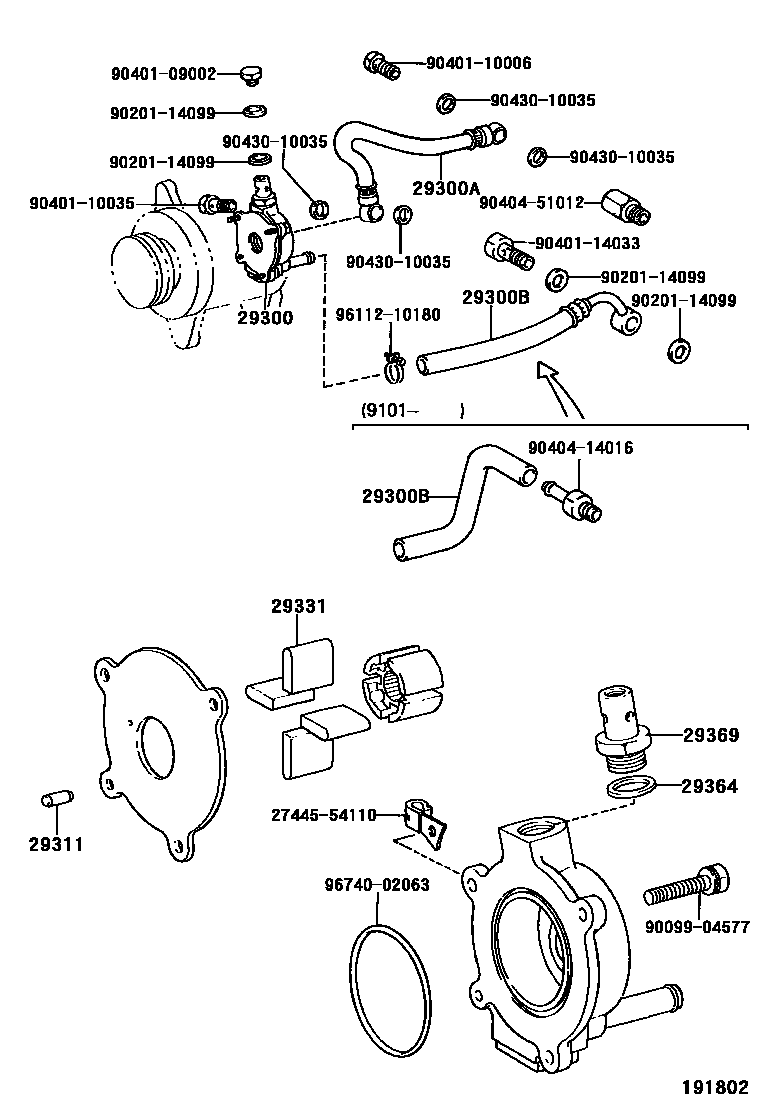

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54060i2L,3L..LY5#,6#198708-199101

main29300-54061i2L,3L..LY5#,61199101-199505

main29300-54070i2L..LY50..T2..IV;3L..LY61..TS..15T..ST..IV198910-199101

main29300-54071i3L..LY51,61..15T..WT1..IV; 3L..LY61..TB..15T..IV199210-199301

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LY50,60198708-198808

main90923-02111i2L,3L..LY5#,61198808-199211

main90923-02117i2L,3L..LY5#,61199211-199505

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L,3L..LY5#,61199101-199505

main90923-02105i2L,3L..LY5#,6#198708-199101

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LY50..T2..IV;3L..LY61..TS..15T..ST..IV; 3L..LY51,61..15T..WT1..IV; 3L..LY61..TB..15T..IV198910-199006

main90099-08082i2L..LY50,60198708-198808

29331BLADE, VACUUM PUMP, A

main29331-78010×4i2L,3L..LY5#,6#198708-199505

29364WASHER, VACUUM PUMP

main29364-66010i2L,3L..LY5#,6#198708-199505

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L,3L..LY5#,6#198708-199505

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110006

main90401-10006

9040110035

main90401-10035

9040114033

main90401-14033

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9611210180

main96112-10180

9674002063

main96740-02063

19 parts on this diagram · 1 diagram in section
