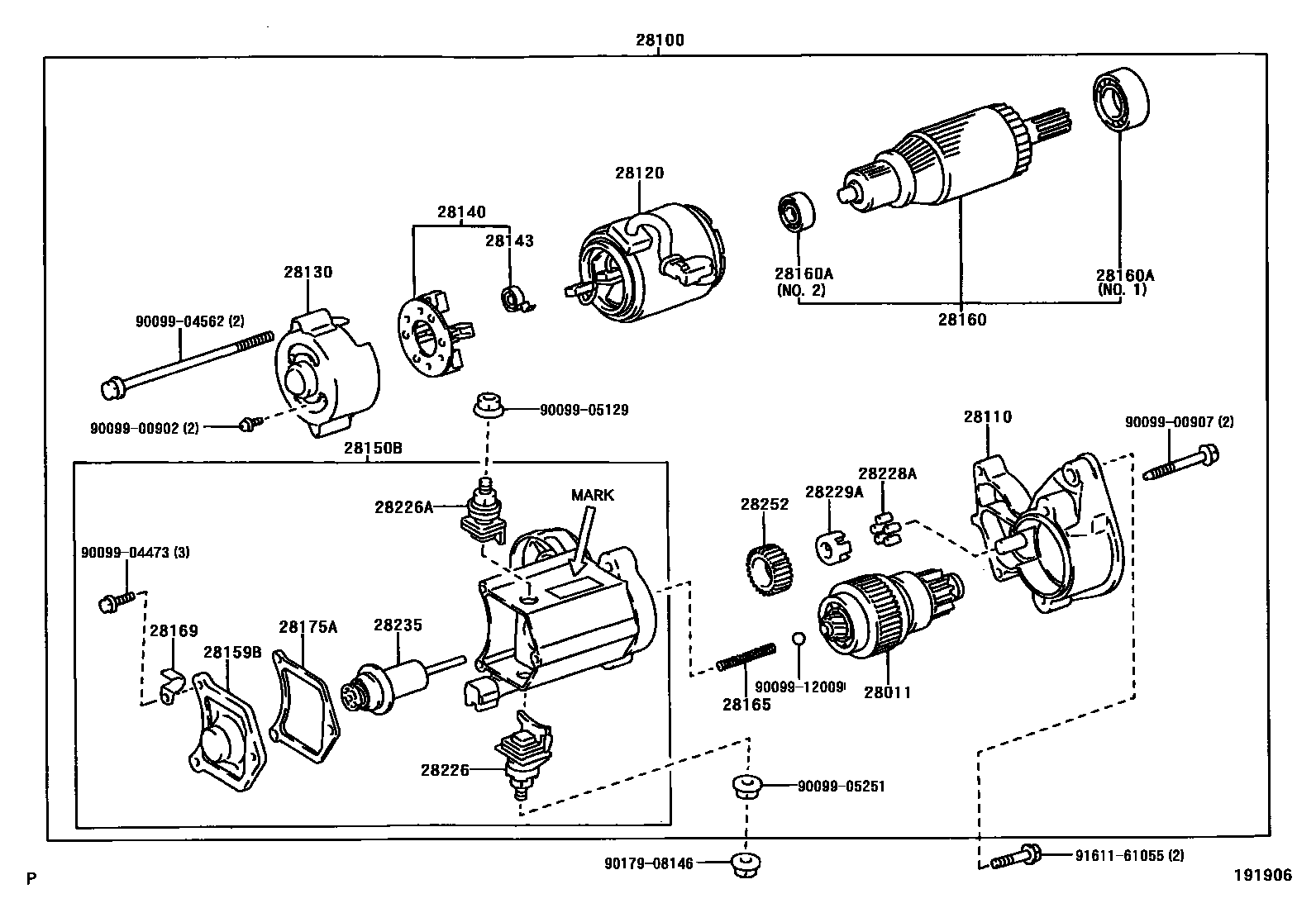

STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 2.0KW 0004 112V 2.5KW,2.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2Y,3Y..YY5#,61198708-199505

12V 1.0KW

main28011-54010i3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199505

12V 2.7KW

main28011-54070i2L,3L..LY5#,6#198708-199309

12V 2.0KW

main28011-54380i2L,3L..LY5#,61199309-199505

main28011-76070i3YP..YY61199406-199505

28100STARTER ASSY

main28100-54061i2L..LY50,60198708-198808

main28100-54070i2L,3L..LY5#,6#198708-199109

main28100-54110i2L,3L..LY5#,6#198708-199109

main28100-54130i2L..LY50,60198708-198808

main28100-54140i2L,3L..LY5#;3L..LY61..IV;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199109

main28100-54160i2L,3L..LY5#,61198808-199109

main28100-54170i2L,3L..LY5#,61199109-199309

main28100-54250i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199109-199309

main28100-54290i2L,3L..LY5#,61199109-199309

main28100-54300i2L,3L..LY5#,61199109-199309

main28100-54320i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199309-199505

main28100-54380i2L,3L..LY5#,61199309-199505

main28100-54400i2L,3L..LY5#,61199309-199505

main28100-54430i2L,3L..LY5#,61199309-199505

main28100-72010i2Y,3Y..YY5#,61198708-199309

main28100-72050i2Y,3Y..YY5#,61198708-199309

main28100-72130i3Y..YY52,61199309-199505

main28100-72190i3YP..YY61199406-199505

main28100-72200i3Y..YY52,61199309-199505

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i2L,3L..LY5#,61199309-199505

main28110-72010i2Y,3Y..YY5#,61198708-199505

12V 1.0KW

main28110-72120i3YP..YY61199406-199505

main28115-54011i2L..LY50,60198708-198808

12V 2.5KW

main28115-54070i2L,3L..LY5#,6#198708-199309

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-26071i2Y,3Y..YY5#,61198708-199505

main28120-54070i2L,3L..LY5#,6#198708-199309

main28120-54380i2L,3L..LY5#,61199309-199505

main28120-56081i2L..LY50,60198708-198808

12V 2.5KW

main28120-66040i3YP..YY61199406-199505

12V 1.4KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-16130i3YP..YY61199406-199505

main28130-54060i3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199309

main28130-54380i2L,3L..LY5#,61199309-199505

main28130-54430i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199309-199505

main28130-72010i2Y,3Y..YY5#,61198708-199505

main28130-72050i2Y,3Y..YY5#,61198708-199505

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i2Y,3Y..YY5#,61198708-199505

main28140-54070i2L,3L..LY5#,6#198708-199309

main28140-54380i2L,3L..LY5#,61199309-199505

main28140-76070i3YP..YY61199406-199505

main28140-77090i2L..LY50,60198708-198808

12V 2.5KW

28143SPRING, STARTER BRUSH

main28143-54380×4i2L,3L..LY5#,61199309-199505

main90099-17112×4i2Y,3Y#..YY5#,61198708-199505

main90099-17115×4i2L,3L..LY5#,6#198708-199309

28150BSWITCH ASSY, MAGNETIC

main28150-34080i2Y,3Y..YY5#,61198708-199309

main28150-54011i2L..LY50,60198708-198808

main28150-54070i2L,3L..LY5#,6#198708-199109

main28150-54110i2L,3L..LY5#,6#198708-199104

main28150-54111i2L,3L..LY5#,61199104-199109

main28150-54130i2L..LY50,60198708-198808

main28150-54140i2L..LY50..10T..IV;3L..LY61..TS..125..WT1199008-199309

main28150-54160i2L,3L..LY5#,61198808-199309

main28150-54181i2L,3L..LY5#,61199109-199309

main28150-54290i2L,3L..LY5#,61199109-199309

main28150-54320i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199309-199505

main28150-54380i2L,3L..LY5#,61199309-199505

main28150-54400i2L,3L..LY5#,61199309-199505

main28150-54430i2L,3L..LY5#,61199309-199505

main28150-56201i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199309-199505

main28150-72050i2Y,3Y..YY5#,61198708-199309

main28150-72130i3Y..YY52,61199309-199505

main28150-72191i3YP..YY61199406-199505

main28150-72200i3Y..YY52,61199309-199505

28159BCOVER, MAGNET SWITCH

main28159-10040i2Y,3Y..YY5#,61198708-199505

main28159-54170i2L,3L..LY5#,6#198708-199309

main28159-54380i2L,3L..LY5#,61199309-199505

main28159-55050i3YP..YY61199406-199505

main28159-56310i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199109-199505

28160ARMATURE ASSY, STARTER

main28160-26070i2Y,3Y..YY5#,61198708-198908

main28160-26071i2Y,3Y..YY5#,61198908-199505

main28160-47040i2L..LY50,60198708-198808

main28160-54070i2L,3L..LY5#,6#198708-198908

main28160-54071i2L,3L..LY5#,61198908-199309

main28160-54120i2L..LY50,60198708-198808

main28160-54140i3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199505

main28160-54160i2L,3L..LY5#,61198808-199505

main28160-54380i2L,3L..LY5#,61199309-199505

main28160-72050i2Y,3Y..YY5#,61198708-198907

main28160-72051i2Y,3Y..YY5#,61198908-199505

main28160-74070i3YP..YY61199406-199505

28160ABEARING, STARTER ARMATURE

main28253-45020i2Y,3Y..YY5#,61198708-199505

main28253-54070i2L,3L..LY5#,6#198708-199309

main90099-10107i3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199505

main90099-10113i2Y,3Y..YY5#,61198708-199505

main90099-10119i2L..LY50..10T..IV;3L..LY61..TS..125..WT1199008-199505

main90099-10131i2L,3L..LY5#,6#198708-199309

main90099-10138i2Y,3Y..YY5#,61198708-199505

main90099-10139i2Y,3Y..YY5#,61198708-199505

main90099-10196i3YP..YY61199406-199505

main90099-10197i2L,3L,3YP..LY5#,61,YY61199309-199505

main90099-10208i2L,3L..LY5#,61199309-199505

main90099-54120i2L..LY50,60198708-198808

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L,3L,2Y,3Y..LY5#,6#,YY5#,61198708-199309

main28165-76070i2L,3L,3YP..LY5#,61,YY61199309-199505

main28165-77090i2L..LY50..10T..IV;3L..LY61..TS..125..WT1199008-199505

12V 2.7KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i2Y,3Y..YY5#,61198708-199505

main28169-54070i2L,3L..LY5#,6#198708-199309

main28169-54380i2L,3L..LY5#,61199309-199505

main28169-55050i3YP..YY61199406-199505

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i2L,3L,2Y,3Y..LY5#,6#,YY5#,61198708-199309

main28175-54380i2L,3L..LY5#,61199309-199505

main28175-55050i3YP..YY61199406-199505

main28175-56310i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199109-199505

28226STARTER KIT, BATTERY TERMINAL

main28226-16130i3YP..YY61199406-199505

main28226-54250i2L,3L..LY5#;3L..LY61..IV;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199109

main28226-54320i2L..LY50..10T..IV;3L..LY61..TS..125..WT1; 3L..LY61..IV;2L..LY50..10T..CBU;2L,3L..LY5#..125,15T;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU199309-199505

main28226-54360i2L,3L..LY5#,6#198708-199109

main28226-54380i2L,3L..LY5#,61199309-199505

main28226-54400i2L,3L..LY5#,61199309-199505

main28226-56270i2L,3L..LY5#,61199109-199309

main28226-56330i2L,3L..LY5#,61199309-199505

main28226-70040i3Y..YY52,61199309-199505

main28226-72050i2Y,3Y..YY5#,61198708-199309

main28226-72170i3Y..YY52,61199309-199505

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54100i2L,3L..LY5#,6#198708-199101

main28226-54220i2L,3L..LY5#;3L..LY61..IV;3L..LY61..TB..125..CBU;3L..LY61..15T..WT1..CBU;3L..LY61..(ST,WT2)..CBU198808-199109

main28226-72010i2L,3L,2Y,3Y..LY5#,61,YY5#,61199101-199505

main28226-74070i3YP..YY61199406-199505

28228AROLLER, STARTER CLUTCH

main28228-26040×5i3YP..YY61199406-199505

main28228-56080×5i2L..LY50..10T..IV;3L..LY61..TS..125..WT1199008-199505

12V 2.7KW

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i2L,3L,2Y,3Y..LY5#,6#,YY5#,61198708-199309

main28229-56080i2L..LY50,60198708-198808

12V 2.5KW

main28229-74070i3YP..YY61199406-199505

28235PLUNGER, MAGNET SWITCH

main28235-17030i2L,3L..LY5#,61198808-199109

main28235-35080i2L,3L,2Y,3Y..LY5#,6#,YY5#,61198708-199309

main28235-54380i2L,3L..LY5#,61199309-199505

main28235-55050i3YP..YY61199406-199505

28252GEAR, STARTER IDLE

main28254-45020i2Y,3Y..YY5#,61198708-199505

main28254-54070i2L,3L..LY5#,6#198708-199309

main28254-64130i2L,3L..LY5#,61199309-199505

main28254-74070i3YP..YY61199406-199505

main28254-77090i2L..LY50,60198708-198808

12V 2.5KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

29 parts on this diagram · 4 diagrams in section
