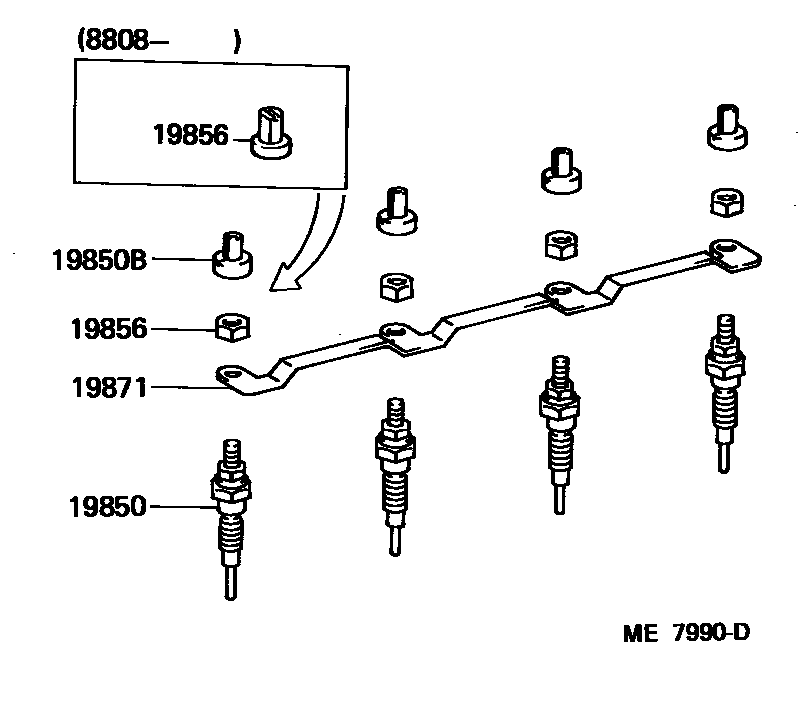

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-54050i2L..LY50,60198708-198808

main19850-54090i2L,3L..LY5#,61198808-199505

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2L..LY50,60198708-198808

19856NUT, CONNECTING(FOR GLOW PLUG)

main90170-04001i2L..LY50,60198708-198808

main90179-04019i2L,3L..LY5#,61198808-199505

19871CONNECTOR, GLOW PLUG NO.1

main19871-54011i2L..LY50,60198708-198808

main19871-54020i2L,3L..LY5#,61198808-199505

4 parts on this diagram · 3 diagrams in section
