V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i2L..LY50,60198708-198808

main90916-02209i2L,3L..LY5#,61198808-199505

main90916-02211i3L..LY51,61..15T..WT1..IV; 3L..LY61..TB..15T..IV199301-199309

main99365-50820i2Y,3Y..YY5#,61198708-199011

main99365-70820i2Y,3Y..YY5#,61199011-199402

main99365-80820i3Y#..YY52,61199402-199505

44310ABELT, V(FOR VANE PUMP)

main99332-00850iLY5#,6#198708-199505

main99332-01040iYY51198708-199308

main99332-01055iYY52,61198708-199505

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00880iYY5#,61198708-199102

main99332-01260iLY50,60198708-198808

main99332-01265iLY5#..CBU;LY61..125;LY61..15T..CBU;LY5#..(T3,TW)..IV; LY5#..T2..IV;LY61..15T..IV198910-199301

main99332-10880iYY5#,61199102-199505

main99332-11265iLY50;LY51..CBU;LY61..T3,TW;LY51..ST..IV;LY61..(T2,T4)..CBU; LY51,61..(T2,T4)..IV199309-199505

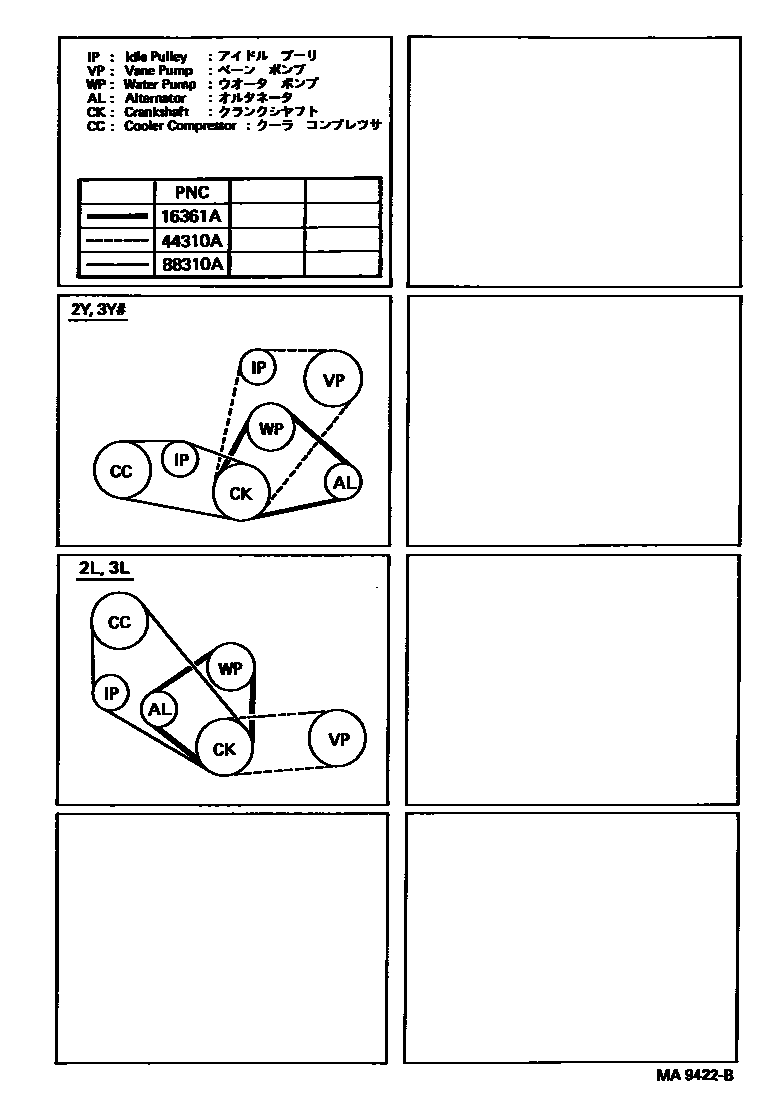

3 parts on this diagram · 1 diagram in section
