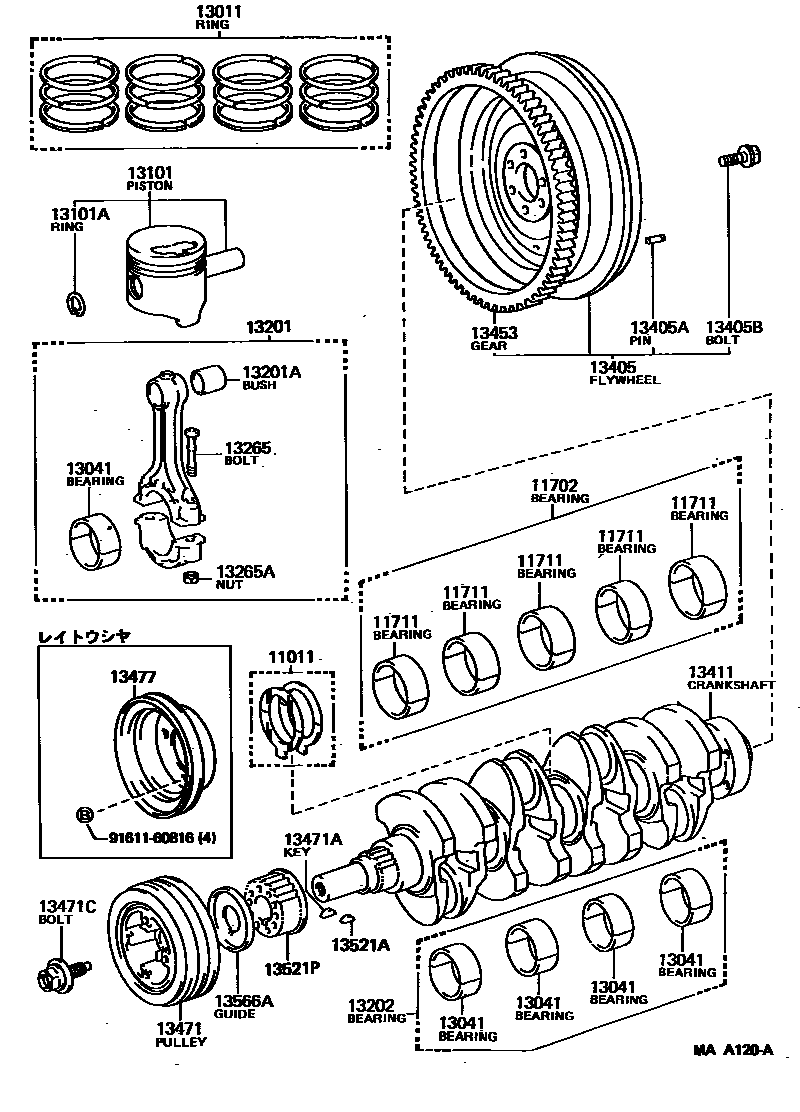

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i2Y,3Y#..YY5#,61198708-199505

main11011-54010i2L..LY50,60198708-198808

main11011-54020i2L,3L..LY5#,61198808-199505

main11012-54010i2L..LY50,60198708-198808

main11012-54020i2L,3L..LY5#,61198808-199505

main11013-54010i2L..LY50,60198708-198808

main11013-54020i2L,3L..LY5#,61198808-199505

11702BEARING SET, CRANKSHAFT

main11704-54060i2L..LY50,60198708-198803

main11704-54061i2L,3L..LY5#,6#198803-199505

main11704-71020i2Y,3Y#..YY5#,61198708-199505

main11705-54060i2L..LY50,60198708-198803

main11705-54061i2L,3L..LY5#,6#198803-199505

11711BEARING, CRANKSHAFT

main11701-54060-01×5i2L..LY50,60198708-198803

MARK 1

main11701-54060-02×5i2L..LY50,60198708-198803

MARK 2

main11701-54060-03×5i2L..LY50,60198708-198803

MARK 3

main11701-54061-01×5i2L,3L..LY5#,6#198803-199505

MARK 1

main11701-54061-02×5i2L,3L..LY5#,6#198803-199505

MARK 2

main11701-54061-03×5i2L,3L..LY5#,6#198803-199505

MARK 3

main11701-71020-01×5i2Y,3Y#..YY5#,61198708-199505

MARK 1

main11701-71020-02×5i2Y,3Y#..YY5#,61198708-199505

MARK 2

main11701-71020-03×5i2Y,3Y#..YY5#,61198708-199505

MARK 3

13011RING SET, PISTON

main13011-54061i2L..LY50,60198708-198710

main13011-54062i2L..LY50,60198710-198808

main13011-54100i2L..LY50198808-199505

main13011-54120i3L..LY51,61198808-199505

main13011-71021i2Y,3Y..YY5#,61198708-199505

main13011-71060i3YP..YY61199406-199505

main13013-54061i2L..LY50,60198708-198710

main13013-54062i2L..LY50,60198710-198808

main13013-54100i2L..LY50198808-199505

main13013-54120i3L..LY51,61198808-199505

main13013-71021i2Y,3Y..YY5#,61198708-199505

main13013-71060i3YP..YY61199406-199505

main13014-54062i2L..LY50,60198708-198808

main13014-54100i2L..LY50198808-199505

main13014-71021i2Y,3Y..YY5#,61198708-199505

main13014-71060i3YP..YY61199406-199505

main13015-54062i2L..LY50,60198708-198808

main13015-54100i2L..LY50198808-199505

main13015-71021i2Y,3Y..YY5#,61198708-199505

main13015-71060i3YP..YY61199406-199505

13041BEARING, CONNECTING ROD

main13041-54013-01×4i2L..LY50,60198708-198808

MARK 1

main13041-54013-02×4i2L..LY50,60198708-198808

MARK 2

main13041-54013-03×4i2L..LY50,60198708-198808

MARK 3

main13041-54024-01×4i2L..LY50198808-199505

MARK 1

main13041-54024-02×4i2L..LY50198808-199505

MARK 2

main13041-54024-03×4i2L..LY50198808-199505

MARK 3

main13041-54041-01×4i3L..LY51,61198808-199505

MARK 1

main13041-54041-02×4i3L..LY51,61198808-199505

MARK 2

main13041-54041-03×4i3L..LY51,61198808-199505

MARK 3

main13041-71011-06×4i2Y,3Y#..YY5#,61198808-199505

MARK 6

main13041-71011-07×4i2Y,3Y#..YY5#,61198808-199505

MARK 7

main13041-71011-08×4i2Y,3Y#..YY5#,61198808-199505

MARK 8

main13041-71021-06×4i2Y,3Y..YY5#,61198708-198808

MARK 6

main13041-71021-07×4i2Y,3Y..YY5#,61198708-198808

MARK 7

main13041-71021-08×4i2Y,3Y..YY5#,61198708-198808

MARK 8

13101PISTON SUB-ASSY, W/PIN

main13101-54060×4i2L..LY50,60198708-198801

main13101-54060-01×4i2L..LY50,60198801-198808

main13101-54060-02×4i2L..LY50,60198801-198808

main13101-54060-03×4i2L..LY50,60198801-198808

main13101-54070-01×4i2L..LY50198808-199505

main13101-54070-02×4i2L..LY50198808-199505

main13101-54070-03×4i2L..LY50198808-199505

main13101-54100-01×4i3L..LY51,61198808-199102

main13101-54100-02×4i3L..LY51,61198808-199102

main13101-54100-03×4i3L..LY51,61198808-199102

main13101-54101-01×4i3L..LY51,61199102-199505

main13101-54101-02×4i3L..LY51,61199102-199505

main13101-54101-03×4i3L..LY51,61199102-199505

main13101-72010×4i2Y..YY51198708-198802

main13101-72010-01×4i2Y..YY51198802-199309

main13101-72010-02×4i2Y..YY51198802-199309

main13101-72010-03×4i2Y..YY51198802-199309

main13101-73010×4i3Y..YY52,61198708-198802

main13101-73010-01×4i3Y#..YY52,61198802-199505

main13101-73010-02×4i3Y#..YY52,61198802-199505

main13101-73010-03×4i3Y#..YY52,61198802-199505

main13103-54060×4i2L..LY50,60198708-198808

main13103-54070×4i2L..LY50198808-199505

main13103-54100×4i3L..LY51,61198808-199102

main13103-54101×4i3L..LY51,61199102-199505

main13103-72010×4i2Y..YY51198708-199309

main13103-73010×4i3Y#..YY52,61198708-199505

main13104-54060×4i2L..LY50,60198708-198808

main13104-54070×4i2L..LY50198808-199505

main13104-72010×4i2Y..YY51198708-199309

main13104-73010×4i3Y#..YY52,61198708-199505

main13105-54060×4i2L..LY50,60198708-198808

main13105-54070×4i2L..LY50198808-199505

main13105-72010×4i2Y..YY51198708-199309

main13105-73010×4i3Y#..YY52,61198708-199505

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-29003×8i2L..LY50,60198708-199505

main90521-31001×8i3L..LY51,61198808-199505

13201ROD SUB-ASSY, CONNECTING

main13201-59016×4i2L..LY50,60198708-198807

main13201-59017×4i2L..LY50,60198807-198808

main13201-59095×4i2L..LY50198808-199505

main13201-59105×4i3L..LY51,61198808-199505

main13201-71011×4i2Y..YY51198708-199309

main13201-79045×4i3Y#..YY52,61198708-199505

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73083×4i2L..LY50,60198708-198807

main90999-73114×4i2L..LY50198808-199505

main90999-73115×4i3L..LY51,61198808-199505

main90999-73117×4i2L..LY50,60198807-198808

13202BEARING SET, CONNECTING ROD

main13204-54013i2L..LY50,60198708-198803

main13204-54024i2L..LY50,60198803-199505

main13204-54041i3L..LY51,61198808-199505

main13204-71011i2Y,3Y#..YY5#,61198808-199505

main13204-71021i2Y,3Y..YY5#,61198708-198808

main13205-54013i2L..LY50,60198708-198803

main13205-54024i2L..LY50,60198803-199505

main13205-54041i3L..LY51,61198808-199505

13265BOLT, CONNECTING ROD

main13265-29025×8i2Y,3Y#..YY5#,61198708-199505

main13265-54011×8i2L..LY50,60198708-198807

main13265-54020×8i2L..LY50; 3L..LY51,61198808-198906

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i2Y,3Y#..YY5#,61198708-199505

main90170-10005×8i2L..LY50,60198708-198807

main90179-10123×8i2L,3L..LY5#,6#198807-199505

13405FLYWHEEL SUB-ASSY

main13405-54011i2L..LY50,60198805-198808

main13405-54060i2L,3L..LY5#,61..ST,WT1198808-199505

main13405-54080i3L..LY61..WT2198808-199505

main13405-59035i2L..LY50,60198708-198805

main13405-72011i2Y,3Y#..YY5#,61..MTM198903-199505

main13405-79045i2Y,3Y..YY5#,61198708-198903

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i2L,3L..LY5#,6#; 2Y,3Y#..YY5#,61..MTM198708-199505

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i2Y,3Y#..YY5#,61..MTM198708-199505

main90105-12109×6i2L..LY50,60198708-198805

13411CRANKSHAFT

main13401-54030i2L..LY50,60198708-198805

main13401-54031i2L..LY50,60198805-198808

main13401-54040i2L..LY50198808-199505

main13401-54060i3L..LY51,61198808-199505

main13411-72010i2Y..YY51198708-199309

main13411-73010i3Y#..YY52,61198708-199505

13453GEAR, FLYWHEEL RING

main13453-20010i2Y,3Y#..YY5#,61..MTM198708-199505

main13453-54010i2L,3L..LY5#,6#198708-199505

13471PULLEY, CRANKSHAFT

main13408-54020i2L..LY50,60198708-198808

main13408-54040i2L..LY50,60..(T2,T4)..15T..IV; 2L..LY50..T2..ST..IV198708-198808

main13408-54070i2L,3L..LY5#,61198808-199505

main13408-73010i2Y,3Y#..YY5#,61198708-199505

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2Y,3Y#..YY5#,61199209-199505

main90280-05010i2Y,3Y..YY5#,61198708-199209

main95161-20622i3L..LY51,61..15T..WT1..IV; 3L..LY61..TB..15T..IV199205-199210

main95161-30622i2L,3L..LY5#,61199205-199505

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-14002i3L..LY51,61..15T..WT1..IV; 3L..LY61..TB..15T..IV198808-199210

main90105-14013i2Y,3Y..YY5#,61198708-198901

main90105-14069i2Y,3Y#..YY5#,61198901-199505

main90119-14005i2L,3L..LY5#,6#198708-198910

main90119-14031i2L,3L..LY5#,61198910-199310

main90901-19024i3L..LY51,61..15T..WT1..IV; 3L..LY61..TB..15T..IV199301-199309

main90901-19028i2L,3L..LY5#,61199310-199505

13477PULLEY, CRANKSHAFT, NO.2

main88451-20110i2Y,3Y#..YY5#,61198708-199505

main88451-25031i2L..LY50,60..(T2,T4)..15T..IV198708-198808

main88451-35030i2L,3L..LY5#,61198808-199505

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i2Y,3Y#..YY5#,61198708-199505

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i2Y,3Y#..YY5#,61199209-199505

main90280-05010i2Y,3Y..YY5#,61198708-199209

main95161-20622i2L..LY50..T2..IV;3L..LY61..TS..15T..ST..IV199205-199211

main95161-30622i2L,3L..LY5#,61199205-199505

13521PPULLEY, CRANKSHAFT TIMING

main13521-54020i2L..LY50,60198708-198808

main13521-54030i2L,3L..LY5#,61198808-199505

13566AGUIDE, TIMING BELT

main13566-54010i2L..LY50,60198708-198808

main13566-54040i2L,3L..LY5#,61198808-199505

9161160816

main91611-60816

26 parts on this diagram · 3 diagrams in section
