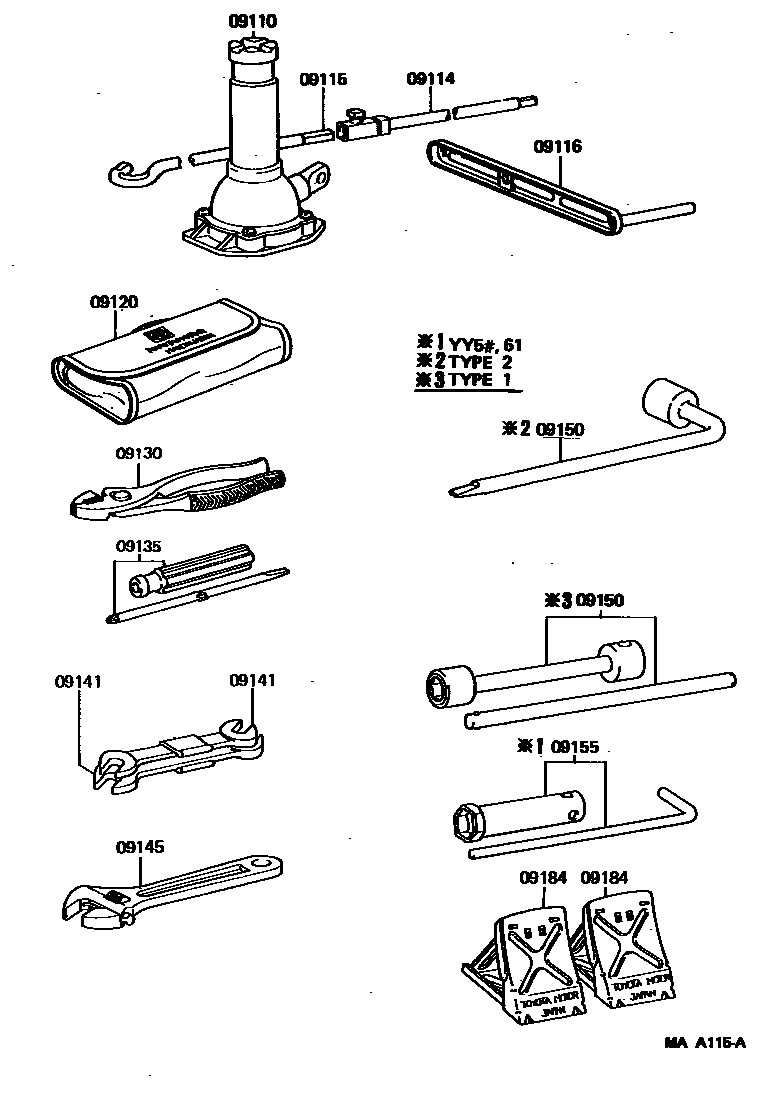

STANDARD TOOL

09110JACK ASSY

main09111-25070iLY5#,6#,YY5#,61198708-199505

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iLY5#,6#,YY5#,61198708-199505

09115ROD SUB-ASSY, JACK HANDLE

main09115-28020iLY5#,6#,YY5#,61198708-199505

09116LEVER, JACK HANDLE

main09116-35041iLY5#,6#,YY5#,61198708-199505

09120BAG, TOOL

main09120-36060iLY5#,6#,YY5#,61..ST,WT1198708-199505

main09120-36070iLY6#,YY61..WT2198708-199505

09130PLIERS

main99913-11500iLY5#,6#,YY5#,61198708-199505

09135DRIVER, SCREW

main99915-10700iLY5#,6#,YY5#,61198708-199505

09141SPANNER

main99914-10810iLY5#,6#,YY5#,61198708-199505

main99914-11214iLY5#,6#,YY5#,61198708-199505

09145WRENCH, MONKEY

main99911-11200iLY5#,6#,YY5#,61198708-199505

09150WRENCH, HUB NUT BOX

main09150-25010iLY6#,YY61..(T3,TW)..ST;LY5#,YY5#..(10T,15T)..ST; LY6#..T2..ST;LY5#,6#,YY5#,61..WT1198708-199505

REAR

main09150-25020iLY6#,YY61..WT2198708-199505

main09150-26030iLY50,YY5#..125..ST; LY6#..T2..ST;LY5#,6#,YY5#,61..WT1198801-199505

FRONT

main09150-35020iLY50,YY51..125..ST; LY60..T2..ST;LY50,60,YY5#,61..WT1198708-198801

FRONT

09155WRENCH, SPARK PLUG

main09155-41010iYY5#,61198708-199309

09184STOPPER, WHEEL

main09184-00031×2iLY5#,6#,YY5#,61198708-199409

main09184-60010×2iLY5#,61,YY52,61199409-199505

12 parts on this diagram · 1 diagram in section
