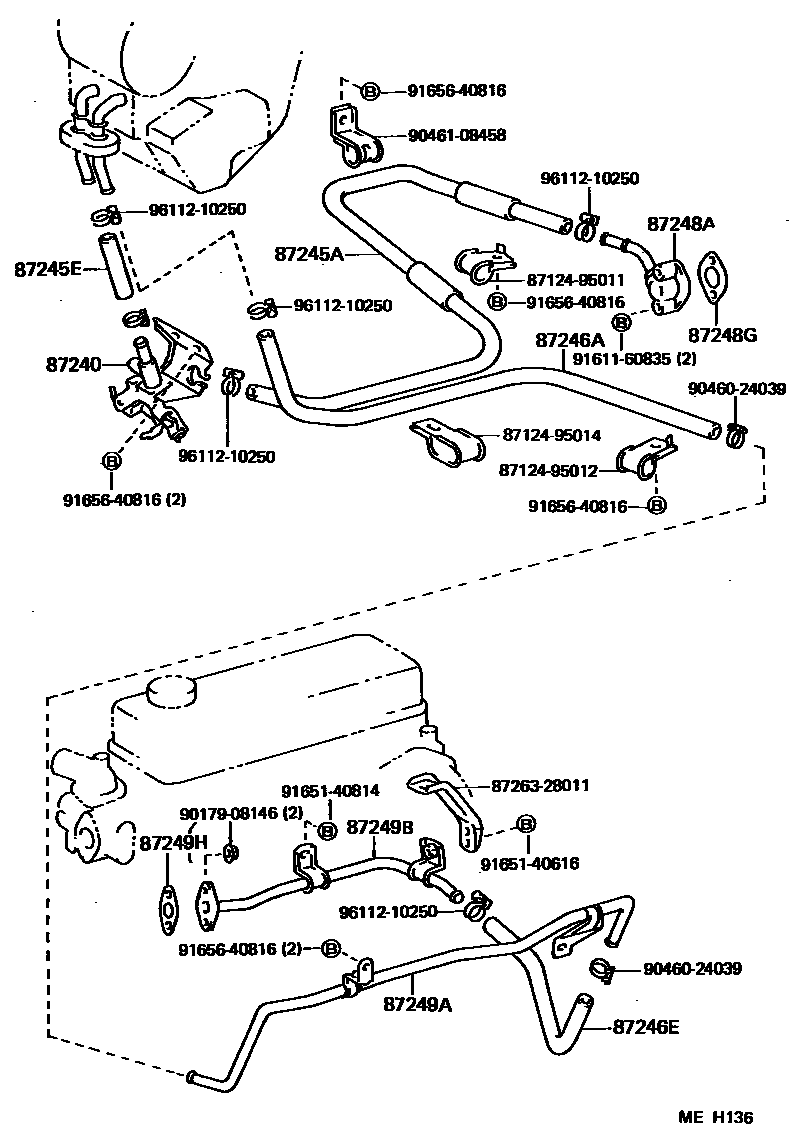

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87240VALVE ASSY, HEATER WATER

main87240-95405iLY50,60,YY5#,61198508-198708

87245AHOSE, HEATER WATER, INLET A

main87245-95039iLY50,60198508-198708

main87245-95045iYY5#,61198508-198708

main99556-30980iYY50,61..TW198508-198708

87245EHOSE, HEATER WATER, INLET E

main87245-92600iLY50,60..TW198508-198708

W/RR HEATER

main99556-30100iLY50,60,YY5#,61198508-198708

87246AHOSE, HEATER WATER, OUTLET A

main87245-95052iYY61..LPG198508-198708

main99556-30980iLY50,60; YY5#,61..CBR198508-198708

87246EHOSE, HEATER WATER, OUTLET E

main87245-95051iYY5#,61..CBR198508-198708

main87245-95053iLY50,60198508-198708

main99556-30980iYY61..LPG198508-198708

87248APIPE, HEATER WATER INLET, A

main87208-28010iYY5#,61198508-198708

87248GGASKET, WATER INLET PIPE

main11493-71010iYY5#,61198508-198708

87249APIPE, HEATER WATER OUTLET, A

main87208-95011iYY5#,61198508-198708

87249BPIPE, HEATER WATER OUTLET, B

main16268-73080iYY61..LPG198508-198708

main87208-28021iYY5#,61..CBR198508-198708

87249HGASKET, WATER OUTLET PIPE

main17175-72010iYY5#,61198508-198708

8712495011CLAMP, HEATER

main87124-95011

8712495012CLAMP, HEATER

main87124-95012

8712495014CLAMP, HEATER

main87124-95014

8726328011BRACKET, HEATER WATER PIPE, NO.1

main87263-28011

9017908146

main90179-08146

9046024039

main90460-24039

9046108458

main90461-08458

9161160835

main91611-60835

9165140616

main91651-40616

9165140814

main91651-40814

9165640816

main91656-40816

9611210250

main96112-10250

22 parts on this diagram · 4 diagrams in section
