WIRING & CLAMP

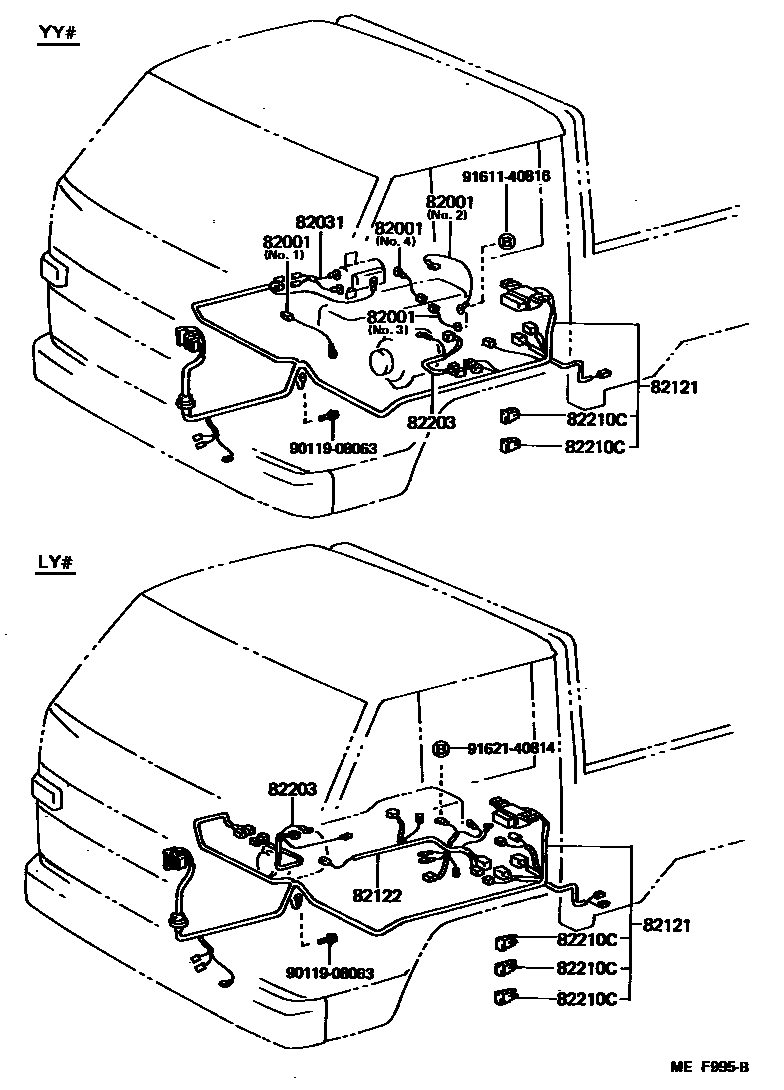

Parts diagram

82001CABLE, BOND, NO.1

main90980-07181i198508-198708

NO.2,L=460

main90980-07227i198508-198708

NO.4,L=300

main90980-07228i198508-198708

NO.3,L=170

main90980-07256i198608-198708

NO.1,L=170

82031WIRE SUB-ASSY, IGNITION COIL

main82031-95010i198508-198708

82121WIRE, ENGINE

main82121-95016i198508-198602

main82121-95017i198508-198602

main82121-95018i198508-198602

W/FUEL HEATER

main82121-95019i198508-198602

ALTERNATOR:12V 45A

main82121-95020i198508-198602

ALTERNATOR:12V 45A,W/*FH

main82121-95021i198508-198602

main82121-95022i198508-198602

main82121-95023i198601-198602

ALTERNATOR:12V 55A

main82121-95032i198602-198708

main82121-95033i198602-198608

main82121-95034i198602-198608

W/FUEL HEATER

main82121-95035i198602-198608

ALTERNATOR:12V 45A

main82121-95036i198602-198608

ALTERNATOR:12V 45A,W/*FH

main82121-95037i198602-198708

main82121-95038i198602-198708

main82121-95039i198602-198608

ALTERNATOR:12V 55A

main82121-95049i198608-198708

main82121-95050i198608-198708

W/FUEL HEATER

main82121-95051i198608-198708

ALTERNATOR:12V 45A

main82121-95052i198608-198708

ALTERNATOR:12V 45A,W/*FH

main82121-95053i198608-198708

ALTERNATOR:12V 55A

82122WIRE, ENGINE, NO.2

main82060-95010i198508-198607

main82060-95014i198607-198708

82203WIRE SUB-ASSY, ALTERNATOR

main82203-95011i198508-198608

main82203-95012i198508-198708

ALTERNATOR:12V 45A

main82203-95013i198508-198601

ALTERNATOR:12V 55A

main82203-95014i198608-198609

main82203-95015i198609-198708

82210CFUSIBLE LINK

main90982-08189i198508-198708

main90982-08202i198508-198601

main90982-08203i198508-198708

main90982-08228i198508-198708

9011908063

main90119-08063

9161140816

main91611-40816

9162140814

main91621-40814

9 parts on this diagram · 4 diagrams in section
