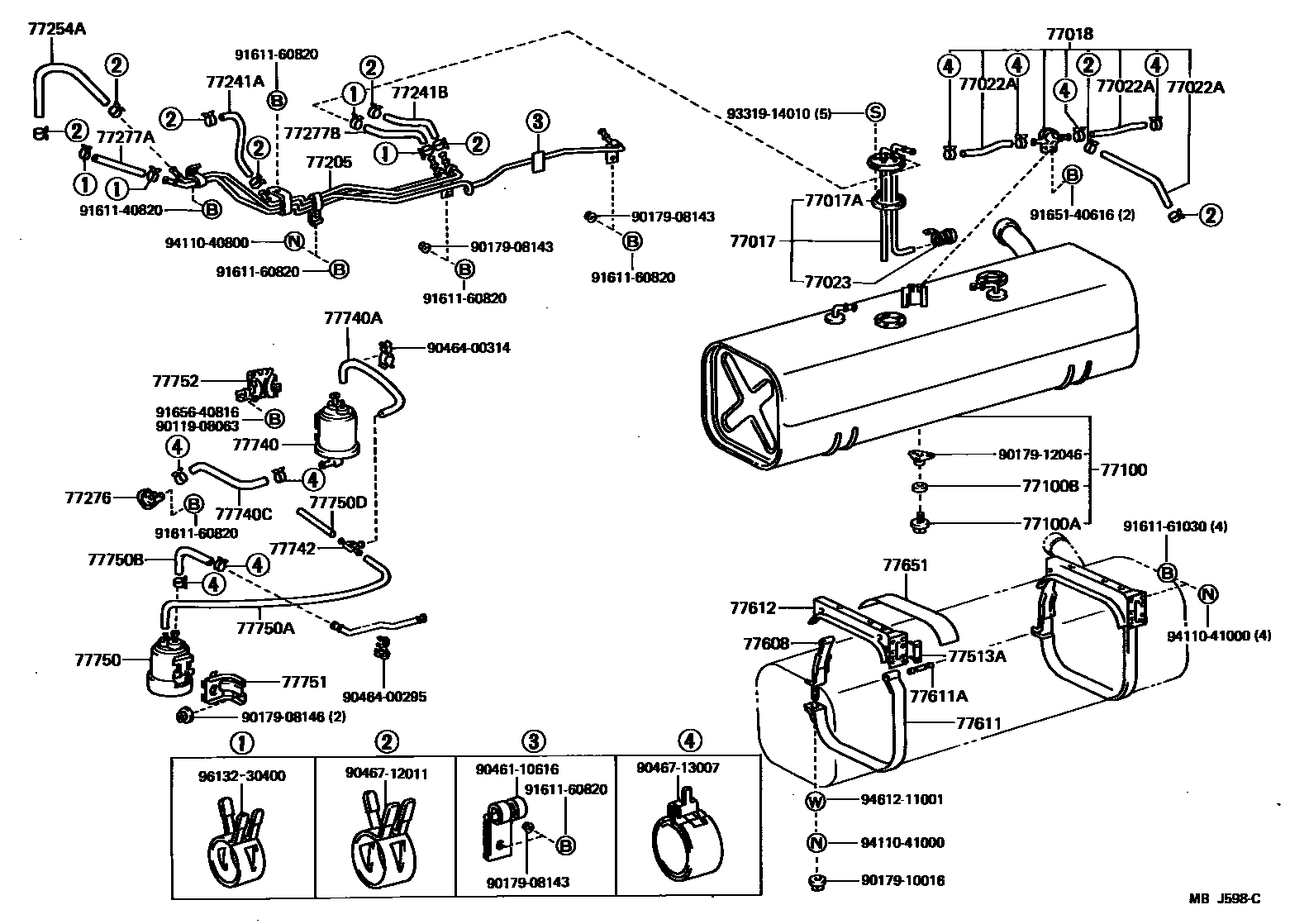

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-25040iLY50..10T198508-198708

main77017-25050iLY60..125198508-198708

main77017-25060iYY61..125198508-198708

main77017-25070iYY50..10T198508-198708

main77017-25080iLY50..125,15T198508-198708

main77017-25090iLY60..15T198508-198708

main77017-25100iYY5#..125,15T198508-198708

main77017-25110iYY61..15T..CBR198508-198708

77017AGASKET, FUEL TANK VENT

main77169-14020iLY50,60,YY5#,61..CBR,DSL198508-198708

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25100iYY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV198508-198708

sub77018-26130

main77018-25110iLY50,60;YY50..TOY..WT1..IV198508-198708

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06030iYY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV198508-198708

sub95333-06030

main95332-08020iYY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV198508-198708

sub95333-08020

main95332-08020iYY50..CBU;YY52,61..CBR;YY50..DYN..IV;YY50..TOY..ST..IV198508-198708

sub95333-08020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYY5#,61..CBR198508-198708

main77023-32010iLY50,60198508-198708

77100TANK ASSY, FUEL

main77001-25230iLY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)198508-198708

60L

sub77001-25270

main77001-25240iLY50,YY50..10T198508-198708

main77001-25250iLY60,YY61..125198508-198708

main77001-25260iLY60..15T..WT1..IV198508-198708

45L

main77100-25290iYY61..LPG198508-198708

77100APLUG(FOR FUEL TANK)

main90105-12116iLY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)198508-198708

main90341-20003iLY50,60,YY50,61..TW198508-198708

sub90341-20004

77100BGASKET(FOR FUEL TANK)

main90430-12245iLY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)198508-198708

main90430-20006iLY50,60,YY50,61..TW198508-198708

77205TUBE SUB-ASSY, FUEL MAIN

main77205-25020iLY50,60198508-198607

sub77205-25060

main77205-25030iYY5#198508-198708

main77205-25040iYY61..CBR198508-198708

main77205-25060iLY50,60198607-198708

main77252-25010iYY61..LPG198508-198708

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main77259-25040iYY5#,61..CBR198508-198708

main95332-08020iLY50,60..TW198508-198708

sub95333-08020

main95332-08040iLY50,60..T1,T2,T3198508-198708

sub95333-08040

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-06020iYY5#,61..CBR198508-198702

sub95333-06020

main95332-08020iLY50,60198508-198708

sub95333-08020

main95333-06020iYY5#,61..CBR198702-198708

sub95337-06020

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95332-06030iYY5#,61..CBR198508-198708

sub95333-06030

77276PROTECTOR, FUEL HOSE

main77276-60020iYY5#,61..CBR198508-198708

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-11004iYY5#,61..CBR198508-198708

main95332-06030iLY50,60198508-198708

sub95333-06030

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iYY5#,61..CBR198508-198702

sub95333-04020

main95332-06020iLY50,60198508-198708

sub95333-06020

main95333-04020iYY5#,61..CBR198702-198708

77513RETAINER, LPG TANK BRACKET, FRONT

main77513-25010iYY61..LPG198508-198708

77513ARETAINER, TANK BRACKET

main77513-25020iLY60,YY61198508-198708

sub77503-25010

77608BAND SUB-ASSY, FUEL TANK, NO.2

main77603-28010iLY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)198508-198708

77611BAND, FUEL TANK

main77601-26050iLY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)198508-198708

main77601-27011iLY50,60,YY50,61..TW198508-198708

main77603-25020iYY61..LPG198508-198708

main77603-25030iYY61..LPG198508-198708

77611APIN (FOR FUEL TANK BAND)

main77629-25010iLY50,60,YY5#,61..CBR,DSL198508-198708

77612BRACKET SUB-ASSY, FUEL TANK

main77501-25050iLY50,YY5#..125,15T198508-198708

FR

sub77501-25051

main77501-25060iLY50,YY50..10T198508-198708

RR

sub77501-25062

main77501-25070iLY50,YY50..10T198508-198708

FR

sub77501-25071

main77501-25080iYY61..LPG198508-198708

FR

main77501-28011iLY50,YY5#..125,15T198508-198708

RR

sub77501-25091

main77502-25020iYY61..LPG198508-198708

RR

77651PACKING, FUEL TANK BRACKET

main77651-26040iLY50,60,YY5#,61..(T1,T2,T3)..(CBR,DSL)198508-198708

main77651-27110iLY50,60,YY50,61..TW198508-198708

77740CANISTER ASSY, CHARCOAL

main77704-60050iYY5#,61..CBR198508-198708

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main95411-10695iYY5#,61..CBR198508-198708

sub90999-92004

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90910-05182iYY5#,61..CBR198508-198708

sub90910-05180

77742WAY, 3(FOR CANISTER)

main90413-04005iYY5#,61..CBR198508-198708

77750CANISTER ASSY, CHARCOAL

main77740-26060iYY5#,61..CBR198508-198708

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main95411-10695iYY5#,61..CBR198508-198708

sub90999-92004

77750BHOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)

main90445-14136iYY5#,61..CBR198508-198708

77750DHOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)

main95411-10630iYY5#,61..CBR198508-198708

sub90999-92002

77751BRACKET, CHARCOAL CANISTER BASE

main77705-26021iYY5#,61..CBR198508-198708

sub77705-26022

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77705-26031iYY5#,61..CBR198508-198708

9011908063

main90119-08063

9017908143

main90179-08143

9017908146

main90179-08146

9017910016

main90179-10016

9017912046

main90179-12046

9046110616

main90461-10616

9046400295

main90464-00295

9046400314

main90464-00314

9046712011

main90467-12011

9046713007

main90467-13007

9161140820

main91611-40820

9161160820

main91611-60820

9161161030

main91611-61030

9165140616

main91651-40616

9165640816

main91656-40816

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9461211001

main94612-11001

9613230400

main96132-30400

52 parts on this diagram · 5 diagrams in section
