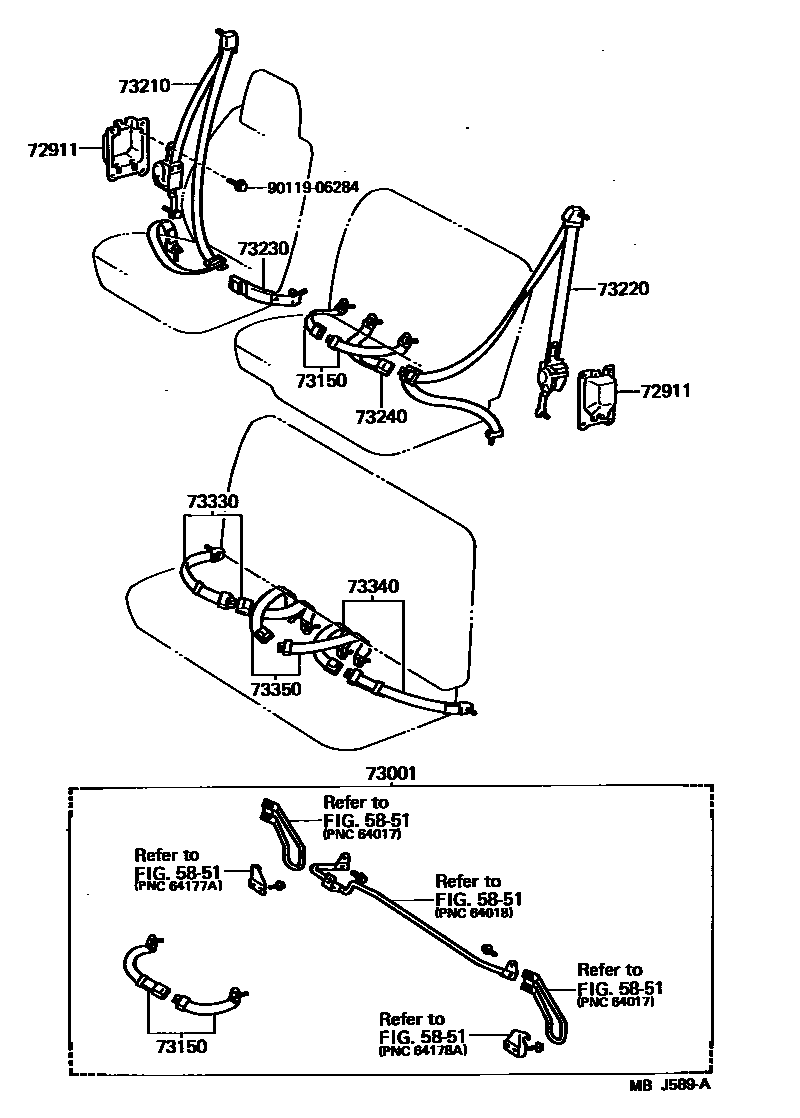

SEAT BELT

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

72911COVER, SEAT BELT RETRACTOR

main73223-95400×2iLY50,60,YY50,61..TW198508-198708

73001BELT SET, FRONT SEAT

main73001-95A00iLY50,60,YY5#,61198611-198708

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-95406-03iLY50,60,YY5#,61198611-198708

SHADOW GRAY,SHADOW GRAY

main73150-95406-04iLY50,60,YY5#,61198611-198708

BLUE,BLUE

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-95A01-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main73210-95A01-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-95A01-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main73210-95A01-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-95A00-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main73230-95A00-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-95A00-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main73240-95A00-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-95A00-03iLY50,60,YY50,61..DYN..TW198508-198708

SHADOW GRAY,SHADOW GRAY

main73330-95A00-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-95A00-03iLY50,60,YY50,61..DYN..TW198508-198708

SHADOW GRAY,SHADOW GRAY

main73330-95A00-04iLY50,60,YY50,61..TOY..TW198508-198708

BLUE,BLUE

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-95A04iLY50,60,YY5#,61198611-198708

9011906284

main90119-06284

12 parts on this diagram · 1 diagram in section
