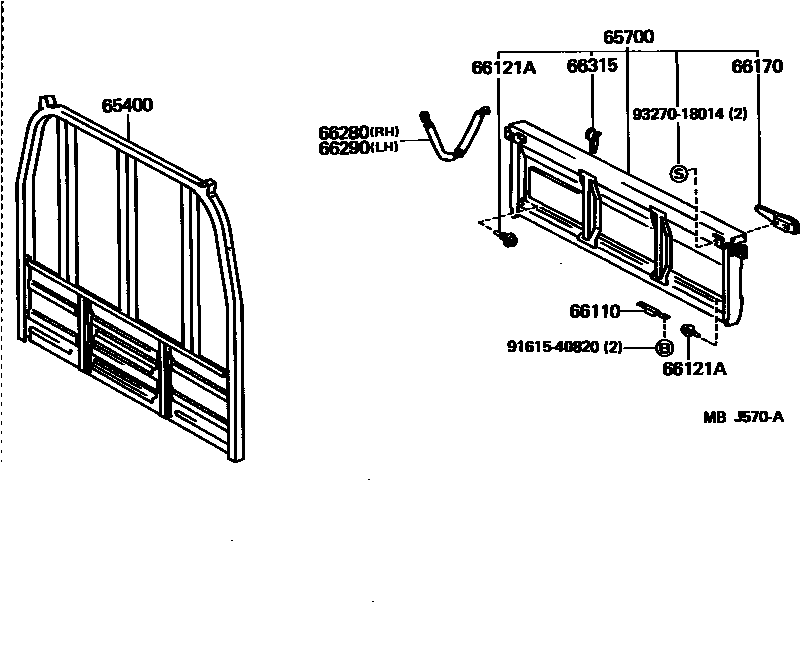

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400FRAME ASSY, REAR BODY GUARD

main65400-92202iYY52,61..TB..ST198508-198608

main65400-92203iYY52,61..TB..15T..WT1198508-198608

main65400-92204iLY60..WT2198508-198608

main65400-92205iLY50,60..TB..ST198508-198608

main65400-92206iYY61..WT2198508-198608

main65400-92207iLY50,60..TB..15T..WT1198508-198608

main65400-92210iLY60,YY61..125..WT1198508-198608

main65400-92211iLY50,60..TB..ST198608-198708

main65400-92212iLY50,60..TB..15T..WT1198608-198708

main65400-92213iLY60..WT2198608-198708

main65400-92214iLY60,YY61..125..WT1198608-198708

main65400-92215iYY52,61..TB..ST198608-198708

main65400-92216iYY52,61..TB..15T..WT1198608-198708

main65400-92217iYY61..WT2198608-198708

main65400-95057iLY50,YY50..T1198508-198708

main65400-95058iLY50,60,YY50,61..TW1198508-198708

main65400-95059iLY50,60,YY50,61..T3..TS198508-198708

main65400-95060iLY50,60,YY50,61..TS..WT1198508-198708

65700GATE ASSY, REAR BODY TAIL

main65700-92204iLY50,60,YY52,61..TB198508-198509

main65700-92205iLY50,60,YY52,61..TB198509-198608

main65700-92206iLY50,60,YY52,61..TB198608-198708

main65700-95030iLY50,60,YY50,61..(T1,TW)..ST198508-198708

main65700-95031iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

66110HINGE ASSY, TAIL GATE

main66110-92701×3iLY50,60,YY52,61..TB198508-198608

main66110-92702×3iLY50,60,YY52,61..TB198608-198708

main66110-95014×2iLY50,60,YY50,61..(T1,TW)..ST198508-198708

main66110-95020×4iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

66121ABOLT, TAIL GATE MALE

main66121-95012×2iLY50,60,YY50,61..(T1,TW)..ST198508-198708

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402×2iLY50,60,YY50,61..(T1,TW)..ST198508-198708

66280CHAIN ASSY, TAIL GATE, RH

main66280-92201iLY50,60,YY52,61..TB198508-198608

main66280-92702iLY50,60,YY52,61..TB198608-198708

main66280-95016×2iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

main66280-95403×2iLY50,60,YY50,61..(T1,TW)..ST198508-198708

66290CHAIN ASSY, TAIL GATE, LH

main66280-92201iLY50,60,YY52,61..TB198508-198608

main66280-92702iLY50,60,YY52,61..TB198608-198708

main66280-95016×2iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

main66280-95403×2iLY50,60,YY50,61..(T1,TW)..ST198508-198708

66315HOOK, ROPE

main66311-92701×2iLY50,60,YY52,61..TB198508-198708

GUARD FRAME

main66311-95010×3iLY50,60,YY50,61..(T1,TW)..ST198508-198708

TAIL GATE

main66312-95A01×2iLY50,60,YY5#,61..(T2,T3)..TS198508-198708

GUARD FRAME

9161540820

main91615-40820

9327018014

main93270-18014

10 parts on this diagram · 3 diagrams in section
