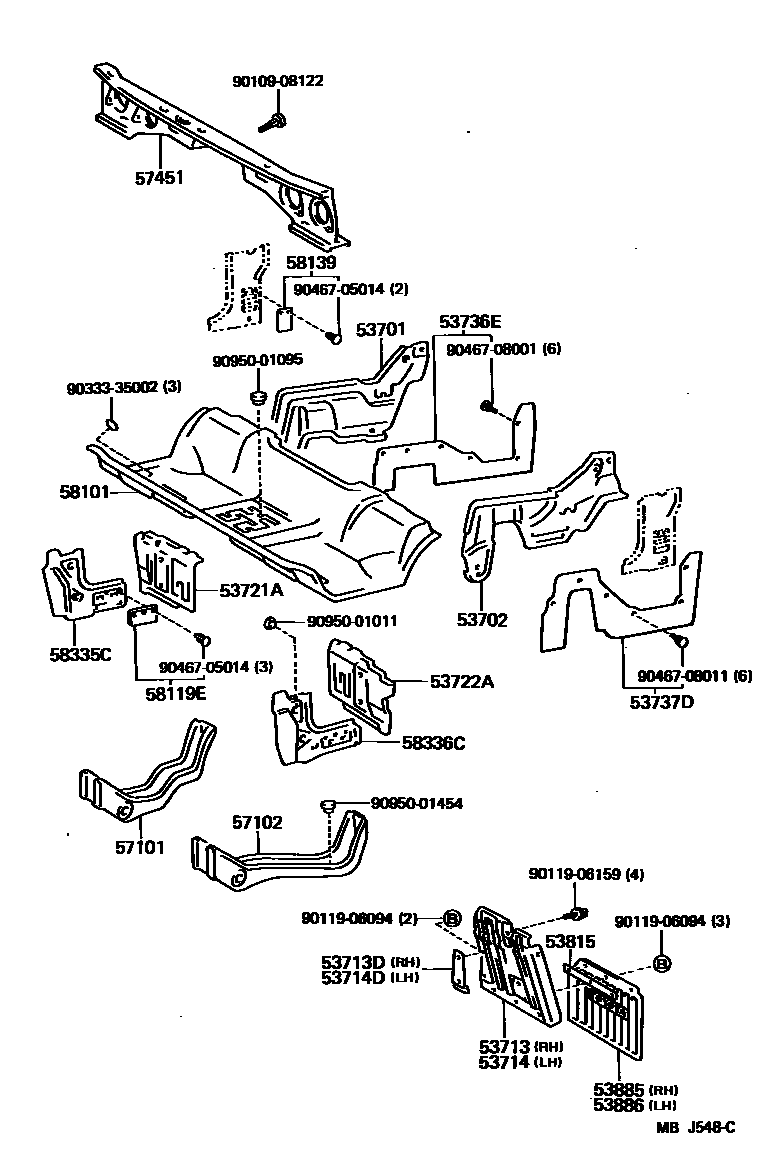

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53707-95011iYY5#,61198508-198708

main53707-95012iLY50,60198508-198708

main53707-95013iLY60..15T..IV;LY50..15T..ST..IV198508-198708

TRUCK FREEZER

53702APRON SUB-ASSY, FRONT FENDER, LH

main53708-95011iLY50,60,YY5#,61198508-198708

53713APRON, FENDER SIDE, RH

main53715-95A01iLY50,60,YY5#,61..T1,T2,T3198508-198708

main53715-95A02iLY50,60,YY50,61..TW198508-198708

53713DEXTENSION, FRONT FENDER APRON, RH

main53747-95010iLY50,60,YY5#,61..T1,T2,T3198508-198708

53714APRON, FENDER SIDE, LH

main53716-95A02iLY50,60,YY5#,61..T1,T2,T3198508-198708

main53716-95A03iLY50,60,YY50,61..TW198508-198708

53714DEXTENSION, FRONT FENDER APRON, LH

main53748-95010iLY50,60,YY5#,61..T1,T2,T3198508-198708

53721AAPRON, FRONT FENDER, NO.2 RH

main53721-95402iLY50,60,YY5#,61198508-198708

53722AAPRON, FRONT FENDER, NO.2 LH

main53722-95403iLY50,60,YY5#,61198508-198708

53736ESEAL, FRONT FENDER APRON, RH

main53736-95010iLY50,60,YY5#,61198508-198708

53737DSEAL, FRONT FENDER APRON, LH

main53737-95010iLY50,60,YY5#,61198508-198708

53815PLATE, MUDGUARD RUBBER SET, FRONT

main53887-95010×2iLY50,60,YY5#,61..T1,T2,T3198601-198708

53885MUDGUARD, FRONT RH

main53881-95A03iLY50,60,YY5#,61..T1,T2,T3198508-198708

main53881-95A04iLY50,60,YY50,61..TW198508-198708

53886MUDGUARD, FRONT LH

main53881-95A03iLY50,60,YY5#,61..T1,T2,T3198508-198708

main53881-95A04iLY50,60,YY50,61..TW198508-198708

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57011-95010iLY50,60,YY5#,61198508-198708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57012-95010iLY50,60,YY5#,61198508-198708

57451MEMBER, FRONT FLOOR CROSS

main57408-95014iLY50,60,YY5#,61198508-198603

main57408-95018iLY50,60,YY5#,61198603-198610

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95051iLY50,60,YY5#,61198508-198708

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iLY50,60,YY5#,61198508-198708

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iLY50,60,YY5#,61..T1,T2,T3198508-198708

LH

main58139-95401iLY50,60,YY5#,61..T1,T2,T3198508-198708

RH

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iLY50,60,YY5#,61198508-198708

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iLY50,60,YY5#,61198508-198708

9010908122

main90109-08122

9011906094

main90119-06094

9011906159

main90119-06159

9033335002

main90333-35002

9046705014

main90467-05014

9046708001

main90467-08001

9046708011

main90467-08011

9095001011

main90950-01011

9095001095

main90950-01095

9095001454

main90950-01454

31 parts on this diagram · 3 diagrams in section
