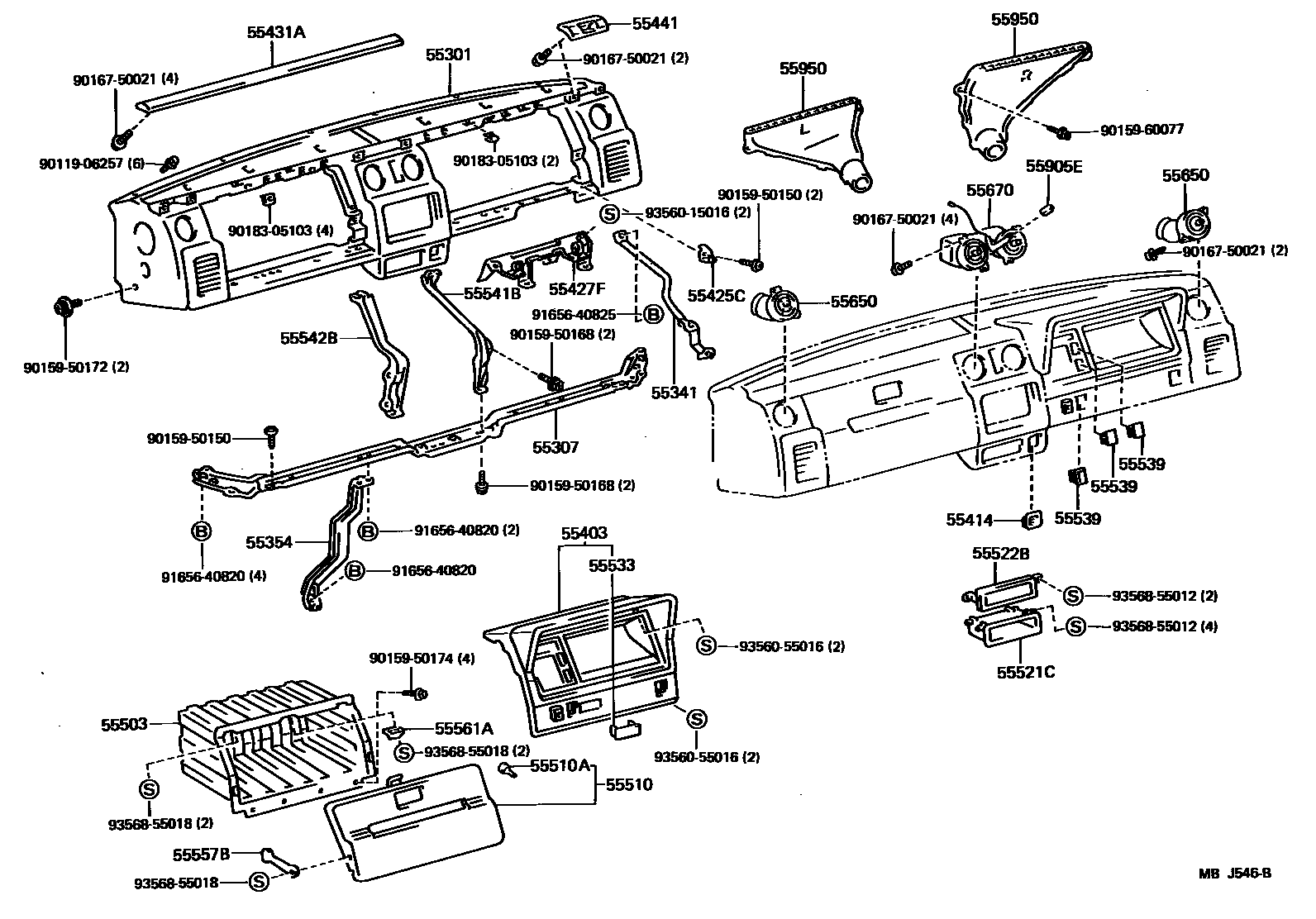

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95027-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55311-95027-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

main55311-95418-03iLY50..DYN..15T..ST; LY50..DYN..15T..WT1..IV; LY60..DYN..(ST,WT2)..IV; LY60..DYN..15T..(ST,WT1)..CBU198610-198708

W/TACHO GRAPH,SHADOW GRAY,SHADOW GRAY

main55311-95418-04iLY50..TOY..15T..ST; LY50..TOY..15T..WT1..IV; LY60..TOY..(ST,WT2)..IV; LY60..TOY..15T..(ST,WT1)..CBU198610-198708

W/TACHO GRAPH,BLUE,BLUE

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iLY50,60,YY5#,61198508-198708

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-95016iLY50,60,YY5#,61198508-198708

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iLY50,60,YY5#,61198508-198708

55403HOOD SUB-ASSY, METER

main55403-95010-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55403-95010-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

main55403-95B12-03iLY50..DYN..15T..ST; LY50..DYN..15T..WT1..IV; LY60..DYN..(ST,WT2)..IV; LY60..DYN..15T..(ST,WT1)..CBU198610-198708

W/TACHO GRAPH,SHADOW GRAY,SHADOW GRAY

main55403-95B12-04iLY50..TOY..15T..ST; LY50..TOY..15T..WT1..IV; LY60..TOY..(ST,WT2)..IV; LY60..TOY..15T..(ST,WT1)..CBU198610-198708

W/TACHO GRAPH,BLUE,BLUE

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLY50,60,YY5#,61198508-198708

55425CBRACKET, METER HOOD SET, NO.1

main55425-95010×2iLY50,60,YY5#,61198508-198708

55427FBRACKET, METER HOOD SET, NO.3

main55427-95010iLY50,60,YY5#,61198508-198708

55431APANEL, INSTRUMENT PANEL FINISH

main55431-95012-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55431-95012-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

55441BOX, INSTRUMENT PANEL

main55441-95417-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55441-95417-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-95400-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95412-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55501-95412-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iLY50,60,YY5#,61198508-198708

OD=7

main90541-05080×2iLY50,60,YY5#,61198508-198708

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55522BCOVER, RADIO TUNER OPENING

main55522-20040iLY50,60,YY5#,61198508-198708

55533COVER, AUTO CLOCK HOLE

main55423-95011-03iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55423-95011-04iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

55539COVER, SPARE SWITCH HOLE

main55539-95J00-03×3iLY50,60,YY5#,61..DYN198508-198708

SHADOW GRAY,SHADOW GRAY

main55539-95J00-04×3iLY50,60,YY5#,61..TOY198508-198708

BLUE,BLUE

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iLY50,60,YY5#,61198508-198708

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iLY50,60,YY5#,61198508-198708

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01×2iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95400-01×2iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-95400-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

55950NOZZLE ASSY, DEFROSTER

main55950-95010iLY50,60,YY5#,61198508-198708

RH

main55960-95010iLY50,60,YY5#,61198508-198708

LH

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9018305103

main90183-05103

9165640820

main91656-40820

9165640825

main91656-40825

9356015016

main93560-15016

9356055016

main93560-55016

9356855012

main93568-55012

9356855018

main93568-55018

39 parts on this diagram · 1 diagram in section
