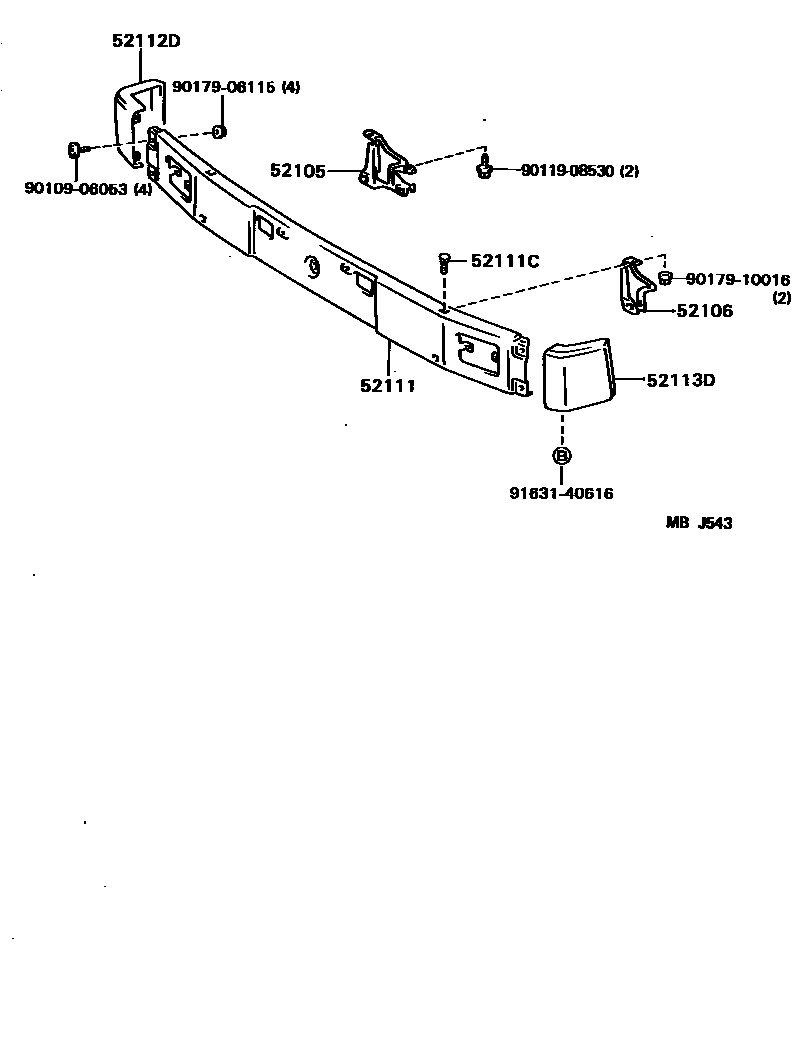

Toyota TOYOACE/DYNA — FRONT BUMPER & BUMPER STAY
52105STAY SUB-ASSY, FRONT BUMPER, RH
52106STAY SUB-ASSY, FRONT BUMPER, LH
52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
52112DEXTENSION, FRONT BUMPER, RH
52113DEXTENSION, FRONT BUMPER, LH
9010906053
9011908530
9017906115
9017910016
9163140616
11 parts on this diagram · 1 diagram in section
FRONT BUMPER & BUMPER STAY for Toyota TOYOACE/DYNA
This section contains 11 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota TOYOACE/DYNA. Key components include: STAY SUB-ASSY, FRONT BUMPER, RH, STAY SUB-ASSY, FRONT BUMPER, LH, BUMPER ASSY, FRONT, BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER), EXTENSION, FRONT BUMPER, RH.
