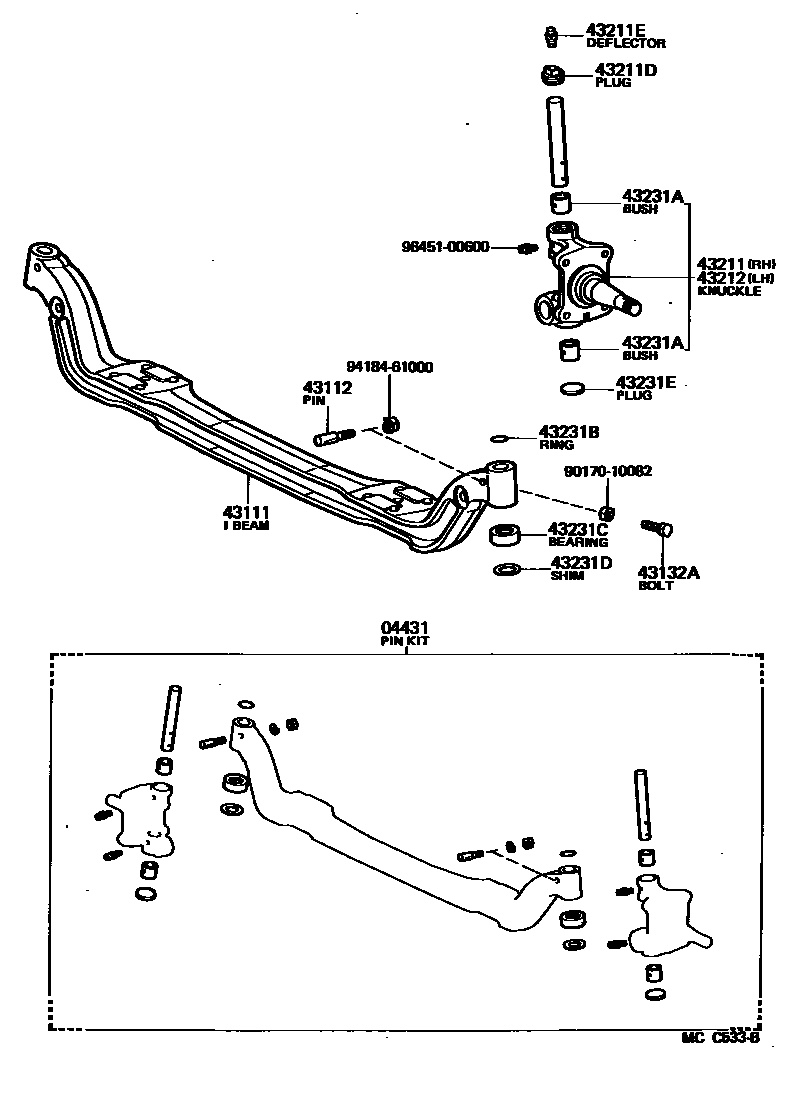

FRONT AXLE ARM & STEERING KNUCKLE

04431PIN KIT, STEERING KNUCKLE KING

main04431-25010iLY50,60,YY5#,61198508-198708

43111I BEAM, FRONT AXLE

main43111-25040iLY50,60,YY5#,61198508-198708

sub43111-25041

43112PIN, KING PIN LOCK

main43112-25010×2iLY50,60,YY5#,61198508-198708

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10005×2iLY50,60,YY5#,61198508-198708

43211KNUCKLE, STEERING, RH

main43201-25060iLY50,60,YY5#,61198508-198708

43211DPLUG (FOR STEERING KNUCKLE)

main90345-32001×2iLY50,60,YY5#,61198508-198708

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03031×2iLY50,60,YY5#,61198508-198708

43212KNUCKLE, STEERING, LH

main43202-25050iLY50,60,YY5#,61198508-198708

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73084×2iLY50,60,YY5#,61198508-198708

LWR

sub90999-73160

main90999-73085×2iLY50,60,YY5#,61198508-198708

UPR

sub90999-73159

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19025×2iLY50,60,YY5#,61198508-198708

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-25002×2iLY50,60,YY5#,61198508-198708

43231DSHIM (FOR KING PIN)

main90564-25125×2iLY50,60,YY5#,61198508-198708

main90564-25126×2iLY50,60,YY5#,61198508-198708

main90564-25127×2iLY50,60,YY5#,61198508-198708

43231EPLUG (FOR STEERING KNUCKLE)

main96412-03500×2iLY50,60,YY5#,61198508-198708

9017010082

main90170-10082

9418461000

main94184-61000

9645100600

main96451-00600

16 parts on this diagram · 1 diagram in section
