Toyota TOYOACE/DYNA — BRAKE TUBE & CLAMP

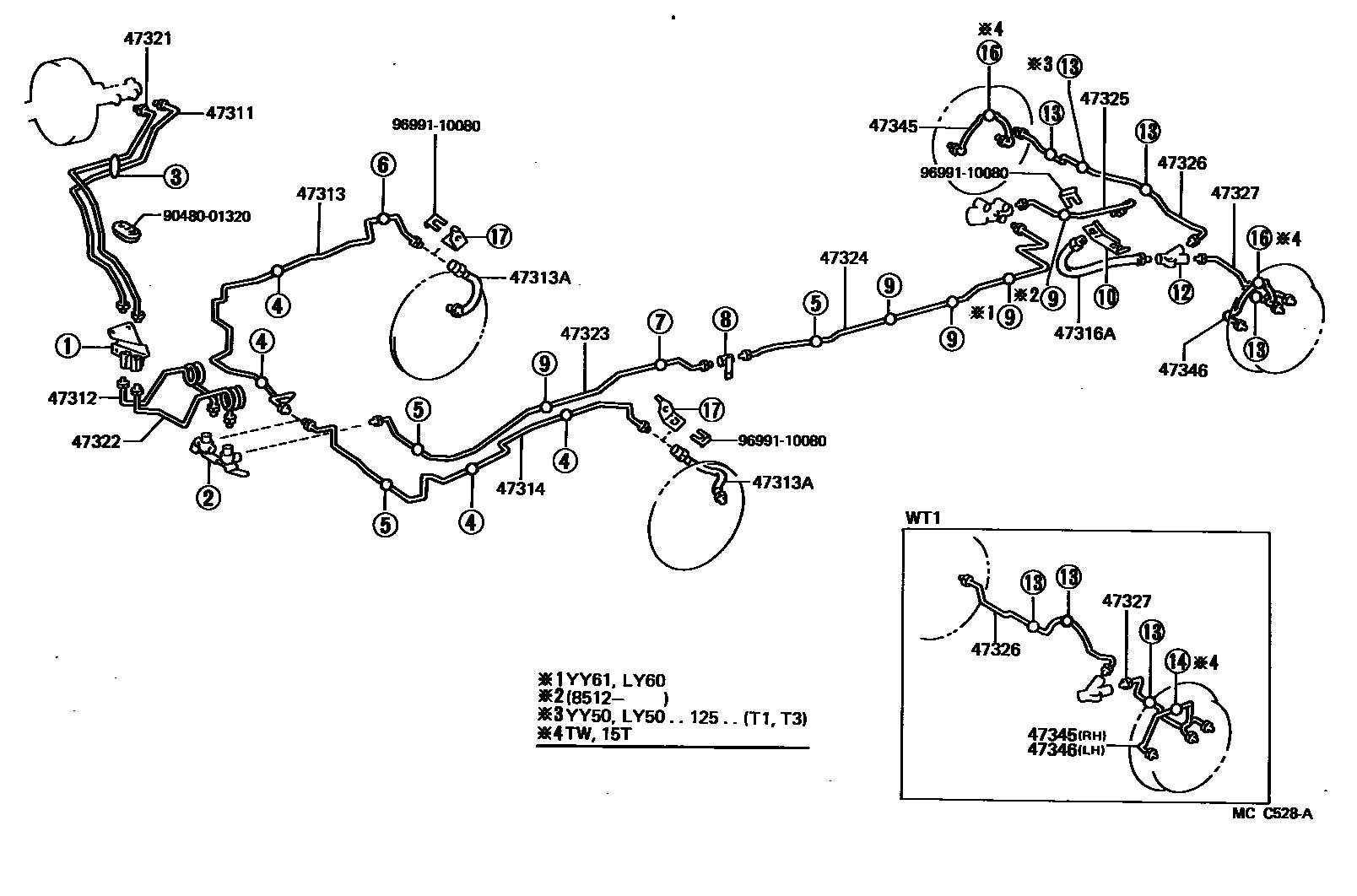

Parts diagram

47311TUBE, FRONT BRAKE, NO.1

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321TUBE, REAR BRAKE, NO.1

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

47327TUBE, REAR BRAKE, NO.7

47345TUBE, WHEEL CYLINDER, REAR RH

47346TUBE, WHEEL CYLINDER, REAR LH

9048001320

9699110080

17 parts on this diagram · 4 diagrams in section

BRAKE TUBE & CLAMP for Toyota TOYOACE/DYNA

This section contains 62 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota TOYOACE/DYNA. Key components include: BUSH & BOOT KIT, LOAD SENSING SPRING, TUBE, FRONT BRAKE, NO.1, WAY, NO.1(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, WAY, NO.2(FOR FRONT BRAKE TUBE).
