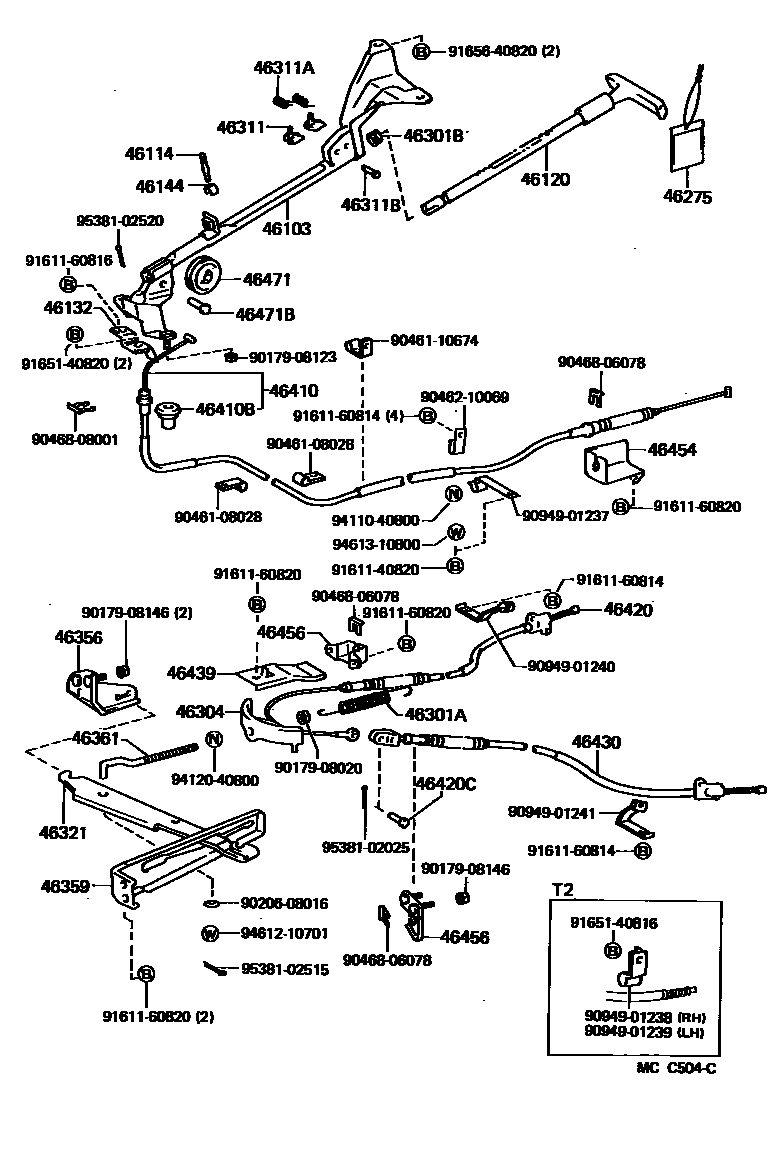

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-25080iLY50,YY50..125198508-198708

main46103-36140iLY60,YY61;LY50,YY5#..10T,15T198508-198708

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLY50,YY50..125198508-198708

main46114-30010iLY60,YY61;LY50,YY5#..10T,15T198508-198708

46120PLUNGER ASSY, PARKING BRAKE

main46120-25030iLY50,YY50..125198508-198708

46132BRACKET, PARKING BRAKE PLUNGER, NO.2

main46132-25010iLY50,YY50..125198508-198708

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLY50,YY50..125198508-198708

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLY50,60,YY5#,61198508-198708

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iLY60,YY61;LY50,YY5#..10T,15T198508-198708

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-18056iLY50,YY50..125198508-198708

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-12048iLY50,YY50..125198508-198708

main90386-13007iLY60,YY61;LY50,YY5#..10T,15T198508-198708

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-26010iLY50,YY50..125198508-198708

46311PAWL, PARKING BRAKE

main46311-26010iLY50,60,YY5#,61198508-198708

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main90508-08106iLY50,YY50..125198508-198708

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iLY50,YY50..125198508-198708

main90249-05010iLY60,YY61;LY50,YY5#..10T,15T198508-198708

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26020iLY50,YY50..125198508-198708

46356BRACKET, EQUALIZER SUPPORT

main46356-25010iLY50,YY50..125198508-198708

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-25010iLY50,YY50..125198508-198708

46361ROD, PARKING BRAKE PULL

main46361-26010iLY50,YY50..125198508-198708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-25080iLY50,YY50..125198508-198708

main46410-36121iLY60,YY61;LY50,YY5#..10T,15T198508-198708

sub46410-36350

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-25026iLY50,YY50..125198508-198708

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-25130iLY50,YY50..125..WT1198508-198708

main46420-25140iLY50,YY50..125..ST198508-198708

main46420-25150iLY60,YY61;LY50,YY5#..10T,15T198508-198608

main46420-25180iLY60,YY61;LY50,YY5#..10T,15T198608-198708

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iLY50,YY50..125198508-198708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-25010iLY50,YY50..125..WT1198508-198708

main46430-25020iLY50,YY50..125..ST198508-198708

main46430-25030iLY60,YY61;LY50,YY5#..10T,15T198608-198708

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-25010iLY50,YY50..125198508-198708

46454BRACKET, CABLE RETAINER, FRONT

main46454-25010iLY50,YY50..125198508-198708

sub46454-25011

46456BRACKET, CABLE RETAINING

main46456-25010iLY50,YY50..125198508-198708

RH

main46457-25010iLY50,YY50..125198508-198708

LH

46471PULLEY, WIRE

main46471-20010iLY50,YY50..125198508-198708

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLY50,YY50..125198508-198708

9017908020

main90179-08020

9017908123

main90179-08123

9017908146

main90179-08146

9020608016

main90206-08016

9046108028

main90461-08028

9046110674

main90461-10674

9046210069

main90462-10069

9046806078

main90468-06078

9046808001

main90468-08001

9094901237

main90949-01237

9094901238

main90949-01238

9094901239

main90949-01239

9094901240

main90949-01240

9094901241

main90949-01241

9161140820

main91611-40820

9161160814

main91611-60814

9161160816

main91611-60816

9161160820

main91611-60820

9165140816

main91651-40816

9165140820

main91651-40820

9165640820

main91656-40820

9411040800

main94110-40800

9412040800

main94120-40800

9461210701

main94612-10701

9461310800

main94613-10800

9538102025

main95381-02025

9538102515

main95381-02515

9538102520

main95381-02520

55 parts on this diagram · 4 diagrams in section
