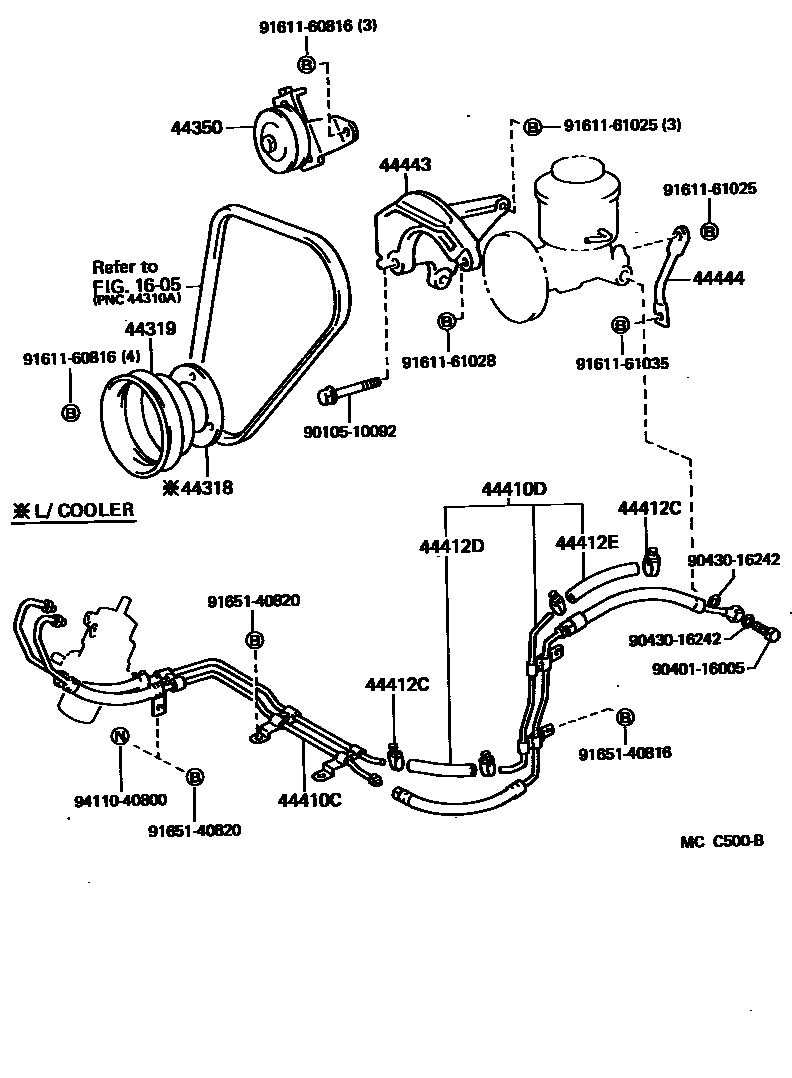

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYY5#,61198508-198708

W/O C00LER

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYY5#,61198508-198708

main44319-30030iLY50,60198508-198708

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYY5#,61198508-198708

44410TUBE ASSY, PRESSURE FEED

main44410-25040iLY50,60198508-198708

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-25020iYY5#,61198508-198708

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-25030iYY5#,61198508-198708

44412HOSE, RETURN

main44412-25020iLY50,60198508-198708

44412CCLAMP(FOR RETURN HOSE)

main90460-01001×4iLY50,60,YY5#,61198508-198708

44412DHOSE, RETURN, NO.1

main90445-18079iYY5#,61198508-198708

44412EHOSE, RETURN, NO.2

main90445-18138iYY5#,61198508-198708

44443BRACKET, PUMP

main44443-28011iYY50198508-198708

main44443-28021iYY52,61198508-198708

main44443-30080iLY50,60198508-198708

44444STAY, PUMP, REAR

main44444-27010iYY5#,61198508-198708

9010510092

main90105-10092

9040116005

main90401-16005

9043016242

main90430-16242

9161160816

main91611-60816

9161161025

main91611-61025

9161161028

main91611-61028

9161161035

main91611-61035

9165140816

main91651-40816

9165140820

main91651-40820

9411040800

main94110-40800

23 parts on this diagram · 2 diagrams in section
