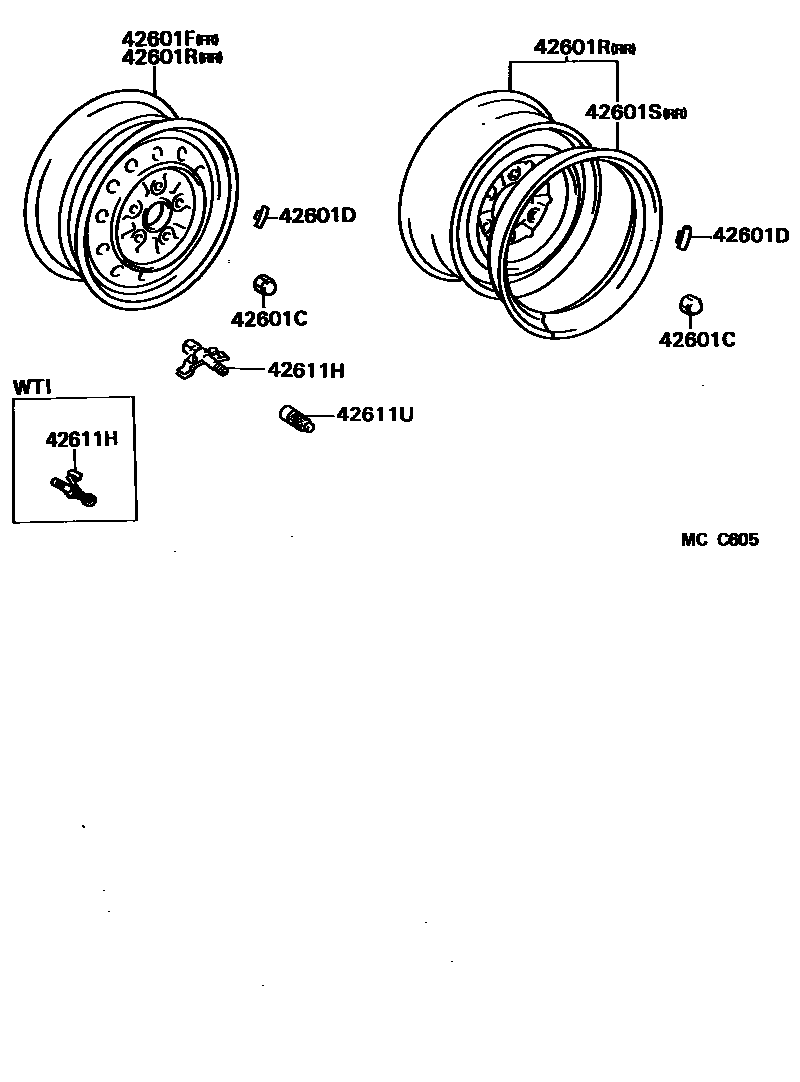

Toyota TOYOACE/DYNA — DISC WHEEL & WHEEL CAP
42601CNUT, HUB (FOR AXLE)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
42601FWHEEL, DISC (FOR FRONT)
42601RWHEEL, DISC (FOR REAR)
42601SRING, DISC WHEEL SIDE (FOR REAR)
42611HEXTENSION, VALVE
42611UCAP, TIRE VALVE
7 parts on this diagram · 1 diagram in section
DISC WHEEL & WHEEL CAP for Toyota TOYOACE/DYNA
This section contains 7 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota TOYOACE/DYNA. Key components include: NUT, HUB (FOR AXLE), WEIGHT, BALANCE (FOR DISC WHEEL), WHEEL, DISC (FOR FRONT), WHEEL, DISC (FOR REAR), RING, DISC WHEEL SIDE (FOR REAR).
