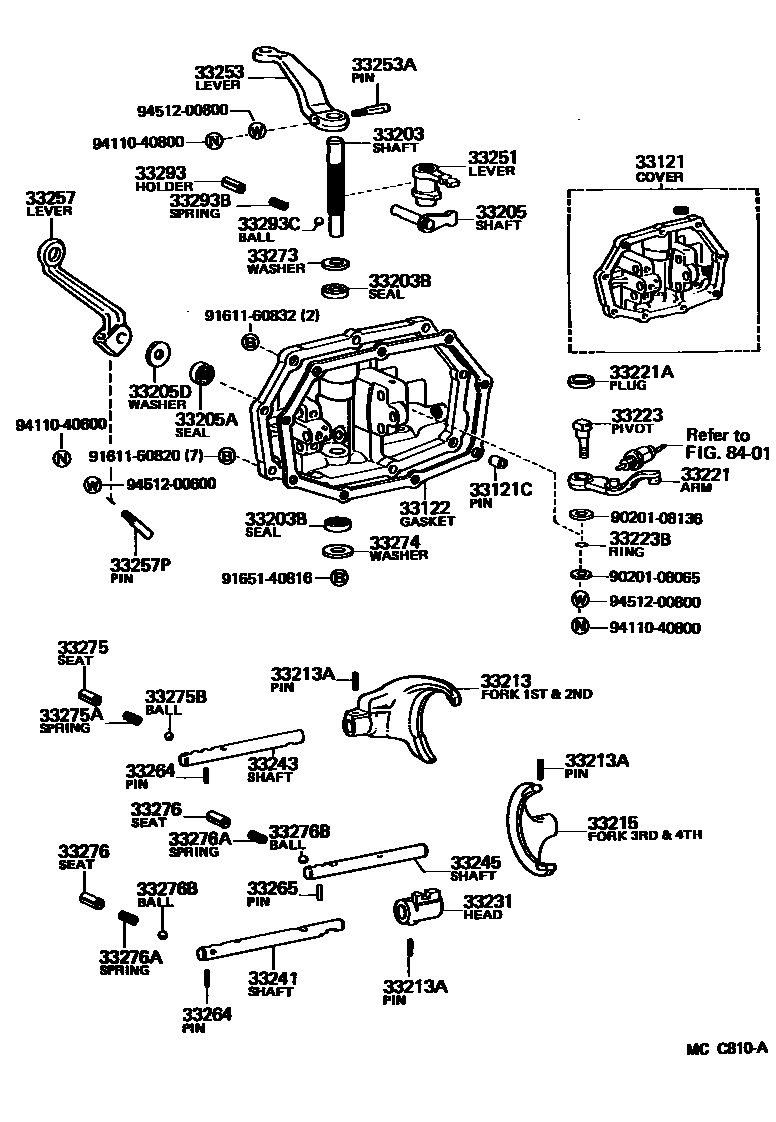

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1

33121COVER, MANUAL TRANSMISSION CASE

main33102-35040iYY50..125198508-198708

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iYY50..125198508-198708

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iYY50..125198508-198708

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26021iYY50..125198508-198708

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iYY50..125198508-198708

LWR

main90311-18002iLY50..125198508-198708

main90311-20006iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main90312-15003iYY50..125198508-198708

UPR

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25040iYY50..10T;LY50,60,YY52,61198508-198708

main33262-26010iYY50..125198508-198708

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iLY50,60,YY5#,61198508-198708

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iLY50,60,YY5#,61198508-198708

33213FORK, 1ST & 2ND SHIFT

main33212-25010iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main33212-26030iLY50..125198508-198708

main33212-28010iYY50..125198508-198708

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLY50,60,YY5#,61198508-198708

33215FORK, 3RD & 4TH SHIFT

main33213-25020iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main33213-26020iYY50..125198508-198708

main33213-28011iLY50..125198508-198708

33221ARM, REVERSE SHIFT

main33221-28010iLY50..125198508-198708

main33221-30010iYY50..125198508-198708

main33221-35030iLY60,YY61;LY50,YY5#..10T,15T198508-198708

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iYY50..125198508-198708

33223PIVOT, SHIFT ARM

main33223-30011iYY50..125198508-198708

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iYY50..125198508-198708

33231HEAD, REVERSE SHIFT

main33231-25020iLY60,YY61;LY50,YY52..10T,15T198508-198708

main33231-26010iYY50..125198508-198708

main33231-28010iLY50..125198508-198708

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iYY50..125198508-198708

main33244-25020iLY60,YY61;LY50,YY52..10T,15T198508-198708

main33244-25030iYY50..10T198508-198708

main33244-28010iLY50..125198508-198708

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-25030iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main33242-26010iYY50..125198508-198708

main33242-26020iLY50..125198508-198708

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-25020iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main33243-26010iYY50..125198508-198708

main33243-35050iLY50..125198508-198708

33251LEVER, SHIFT & SELECT

main33251-25040iLY60,YY61;LY50,YY5#..10T,15T198508-198608

main33251-26010iYY50..125198508-198708

main33251-28011iLY50..125198508-198708

main33251-35090iLY60,YY61;LY50,YY5#..10T,15T198608-198708

33253LEVER, SHIFT OUTER, NO.1

main33253-25040iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main33253-26012iYY50..125198508-198708

main33253-26040iLY50..125198508-198708

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLY50,YY50..125198508-198708

main33282-57010iLY60,YY61;LY50,YY5#..10T,15T198508-198708

33257LEVER, SELECT OUTER

main33257-25030iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main33257-26011iYY50..125198508-198708

main33257-26050iLY50..125198508-198708

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iYY50..125198508-198708

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iYY50..125198508-198708

main90360-10003iLY50,60,YY52,61198508-198708

main90361-10002iLY50..125198508-198708

main90361-10003iYY50..10T;LY50,60,YY52,61198508-198708

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iYY50..125198508-198708

main90250-05020iYY50..10T;LY50,60,YY52,61198508-198608

main90250-05029iYY50..10T;LY50,60,YY52,61198608-198708

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iYY50..125198508-198708

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iYY50..125198508-198708

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iYY50..125198508-198708

main90341-12008iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main90341-12014iLY50..125198508-198708

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iLY50..125198508-198708

main90501-14062iLY50..125198508-198708

main90501-14096iLY60,YY61;LY50,YY5#..10T,15T198508-198708

main90501-14638iYY50..125198508-198708

33275BBALL, SHAFT DETENT

main90360-10003iLY50,60,YY5#,61198508-198708

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010iYY50..125198508-198708

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-14638iYY50..125198508-198708

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iYY50..125198508-198708

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iYY50..125198508-198708

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iYY50..125198508-198708

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iYY50..125198508-198708
