STARTER

0001 112V 1.0KW 0002 112V 1.4KW 0003 112V 2.0KW 0004 112V 2.5KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,1.4KW

main28011-54010i2L..LY50,60198508-198708

12V 2.5KW

main28011-54070i2L..LY50,60198508-198708

12V 2.0KW

28100STARTER ASSY

main28100-54061i2L..LY50,60198508-198708

main28100-54070i2L..LY50,60198508-198708

main28100-54110i2L..LY50,60198508-198708

main28100-54130i2L..LY50,60198508-198708

main28100-72010i1Y,3Y#..YY5#,61198508-198708

main28100-72020i3YP..YY61198508-198708

main28100-72050i1Y,3Y#..YY5#,61198508-198708

main28100-73010i3YP..YY61198511-198708

28110HOUSING ASSY, STARTER DRIVE

main28100-72020i3YP..YY61198508-198708

12V 1.4KW

main28110-72010i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW

main28115-54011i2L..LY50,60198508-198708

12V 2.5KW

main28115-54070i2L..LY50,60198508-198708

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-15090i3YP..YY61198508-198708

12V 1.4KW

main28120-26071i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW

main28120-54070i2L..LY50,60198508-198708

12V 2.0KW

main28120-56081i2L..LY50,60198508-198708

12V 2.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-54060i2L..LY50,60198508-198708

12V 2.5KW

main28130-72010i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,MAGNET SW=STD

main28130-72020i3YP..YY61198508-198708

12V 1.4KW

main28130-72050i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,MAGNET SW=LONG LIFE

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i3YP..YY61198508-198708

12V 1.4KW

main28140-26070i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW

main28140-54070i2L..LY50,60198508-198708

12V 2.0KW

main28140-77090i2L..LY50,60198508-198708

12V 2.5KW

28143SPRING, STARTER BRUSH

main90099-17112×4i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,1.4KW

main90099-17115×4i2L..LY50,60198508-198708

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34080i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,MAGNET SW=STD

main28150-54011i2L..LY50,60198508-198708

12V 2.5KW,COLD SPEC

main28150-54070i2L..LY50,60198508-198708

12V 2.0KW MAGNET SW=STD

main28150-54110i2L..LY50,60198508-198708

12V 2.0KW MAGNET SW=LONG LIFE

main28150-54130i2L..LY50,60198508-198708

12V 2.5KW,MAGNET SW=LONG LIFE

main28150-72020i3YP..YY61198508-198708

12V 1.4KW COLD SPEC

main28150-72050i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,MAGNET SW=LONG LIFE

main28150-73010i3YP..YY61198511-198708

12V 1.4KW,MAGNET SW=LONG LIFE

28160ARMATURE ASSY, STARTER

main28160-15090i3YP..YY61198508-198708

12V 1.4KW

main28160-26070i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,MAGNET SW=STD

main28160-47040i2L..LY50,60198508-198708

12V 2.5KW,COLD SPEC

main28160-54070i2L..LY50,60198508-198708

12V 2.0KW

main28160-54120i2L..LY50,60198508-198708

12V 2.5KW,MAGNET SW=LONG LIFE

main28160-72050i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,MAGNET SW=LONG LIFE

28160ABEARING, STARTER ARMATURE

main28253-45020i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,NO.2,MAGNET SW=STD

main28253-54070i2L..LY50,60198508-198708

12V 2.0KW,NO.2

main90099-10107i2L..LY50,60198508-198708

12V 2.5KW,NO.1,COLD SPEC

main90099-10113i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,NO.1,MAGNET SW=STD

main90099-10119i2L..LY50,60198508-198708

12V 2.5KW,NO.2,COLD SPEC

main90099-10131i2L..LY50,60198508-198708

2.5KW,NO.2,MAGNET SW=LONG LIFE;12V 2.0KW,NO.1

main90099-10138i1Y,3Y#..YY5#,61198508-198708

1.0KW,NO.2,MAGNET SW=LONG LIFE

main90099-10139i1Y,3Y#..YY5#,61198508-198708

1.0KW,NO.1,MAGNET SW=LONG LIFE

main90099-10143i3YP..YY61198508-198708

12V 1.4KW,NO.1

main90099-10144i3YP..YY61198508-198708

12V 1.4KW,NO.2

main90099-54120i2L..LY50,60198508-198708

2.5KW,NO.1,MAGNET SW=LONG LIFE

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L,1Y,3Y#..LY50,60,YY5#,61198508-198708

12V 1.0KW,1.4KW,2.0KW

main28165-77090i2L..LY50,60198508-198708

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i2L,1Y,3Y#..LY50,60,YY5#,61198508-198708

12V 1.0KW,1.4KW,2.0KW

main28228-56080×5i2L..LY50,60198508-198708

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2L,1Y,3Y#..LY50,60,YY5#,61198508-198708

12V 1.0KW,1.4KW,2.0KW

main28229-56080i2L..LY50,60198508-198708

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i1Y,3Y#..YY5#,61198508-198708

12V 1.0KW,1.4KW

main28254-54070i2L..LY50,60198508-198708

12V 2.0KW

main28254-77090i2L..LY50,60198508-198708

12V 2.5KW

9009100902

main90091-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

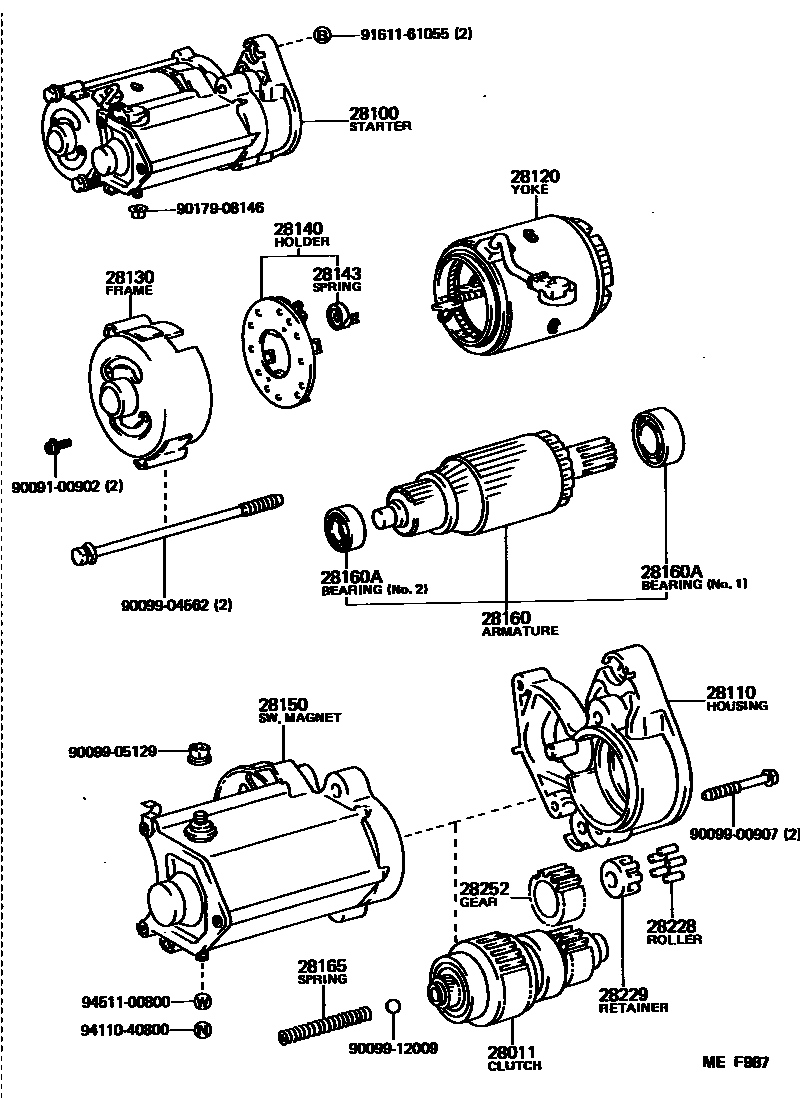

23 parts on this diagram · 4 diagrams in section
