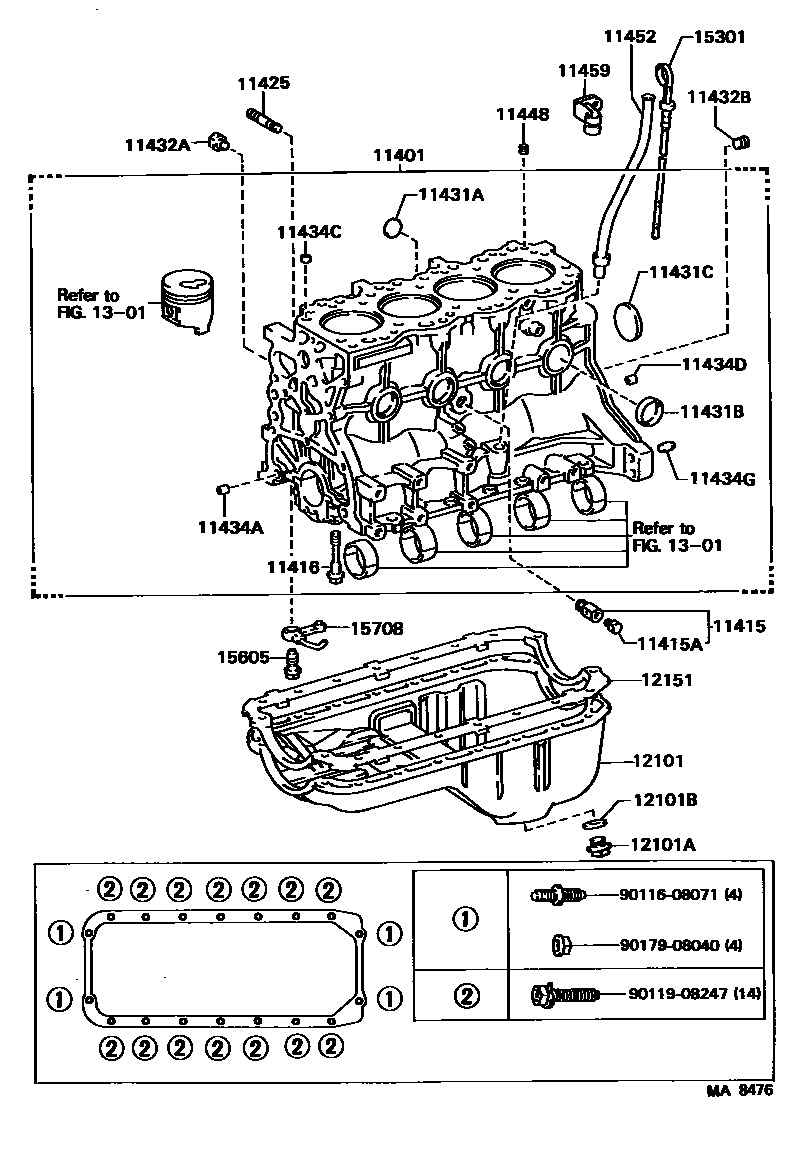

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59246i2L..LY50,60198508-198708

sub11401-59247

sub31349-26020

main11401-79076i1Y..YY50198508-198708

main11401-79086i3Y#..YY52,61198508-198708

sub11401-79088

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828i2L..LY50,60198508-198708

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814i2L..LY50,60198508-198708

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02032i1Y,3Y#..YY5#,61198508-198708

main90910-02061i2L..LY50,60198508-198708

*12-1.25PX80-24

11425BOLT, STUD(FOR OIL FILTER)

main90116-08157i2L..LY50,60198508-198708

L=36,S=11&14

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-01800i1Y,3Y#..YY5#,61198508-198708

main96411-42500i2L..LY50,60198508-198708

OD=25

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2L..LY50,60198508-198708

OD=35

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i2L..LY50,60198508-198708

OD=50

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i2L..LY50,60198508-198708

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-53002i2L..LY50,60198508-198708

main90344-53011i1Y,3Y#..YY5#,61198508-198708

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08014i1Y..YY50198508-198708

main90250-08120i1Y,3Y#..YY5#,61198508-198708

main90253-11001i2L..LY50,60198508-198708

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005i2L..LY50,60198508-198708

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90253-11001i2L..LY50,60198508-198708

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10192i2L..LY50,60198508-198708

L=22,OD=10

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2L..LY50,60198508-198708

11452GUIDE, OIL LEVEL GAGE

main11452-54060i2L..LY50,60198508-198708

main11452-71020i1Y,3Y#..YY5#,61198508-198708

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-71011i1Y,3Y#..YY5#,61198508-198708

main90929-01126i2L..LY50,60198508-198708

12101PAN SUB-ASSY, OIL

main12101-54052i2L..LY50,60198508-198510

sub12101-54053

main12101-54053i2L..LY50,60198510-198708

sub12101-54054

sub90341-12012

sub90430-12027

main12101-71021i1Y,3Y#..YY5#,61198508-198708

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1Y,3Y#..YY5#,61198508-198708

main90341-18089i2L..LY50,60198508-198708

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i1Y,3Y#..YY5#,61198508-198708

sub90430-12019

main90430-18013i2L..LY50,60198508-198708

sub90430-18023

12151GASKET, OIL PAN

main12151-54020i2L..LY50,60198508-198708

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-54050i2L..LY50,60198508-198708

main15301-71020i1Y,3Y#..YY5#,61198508-198708

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i2L..LY50,60198508-198708

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54010i2L..LY50,60198508-198708

9011608071

main90116-08071

9011908247

main90119-08247

9017908040

main90179-08040

28 parts on this diagram · 2 diagrams in section
