SHORT BLOCK ASSEMBLY

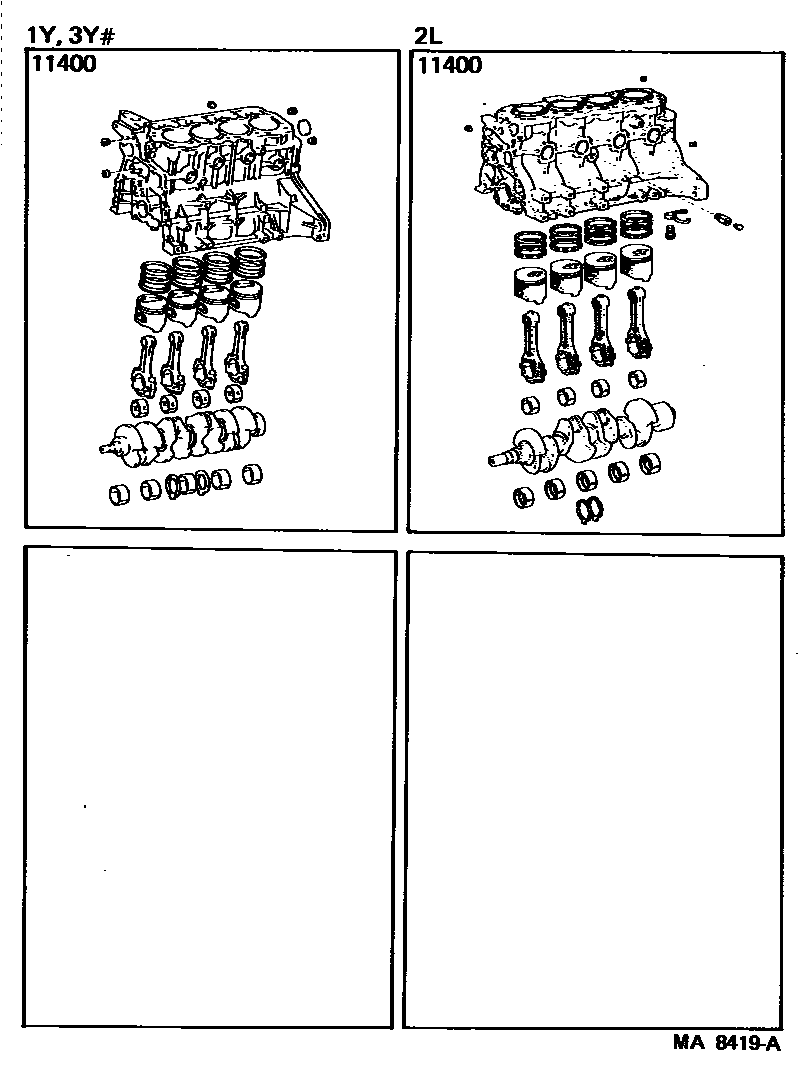

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54061i198508-198708

main11400-71011i198508-198708

main11400-73011i198508-198708

main11400-73021i198508-198708

1 parts on this diagram · 1 diagram in section
