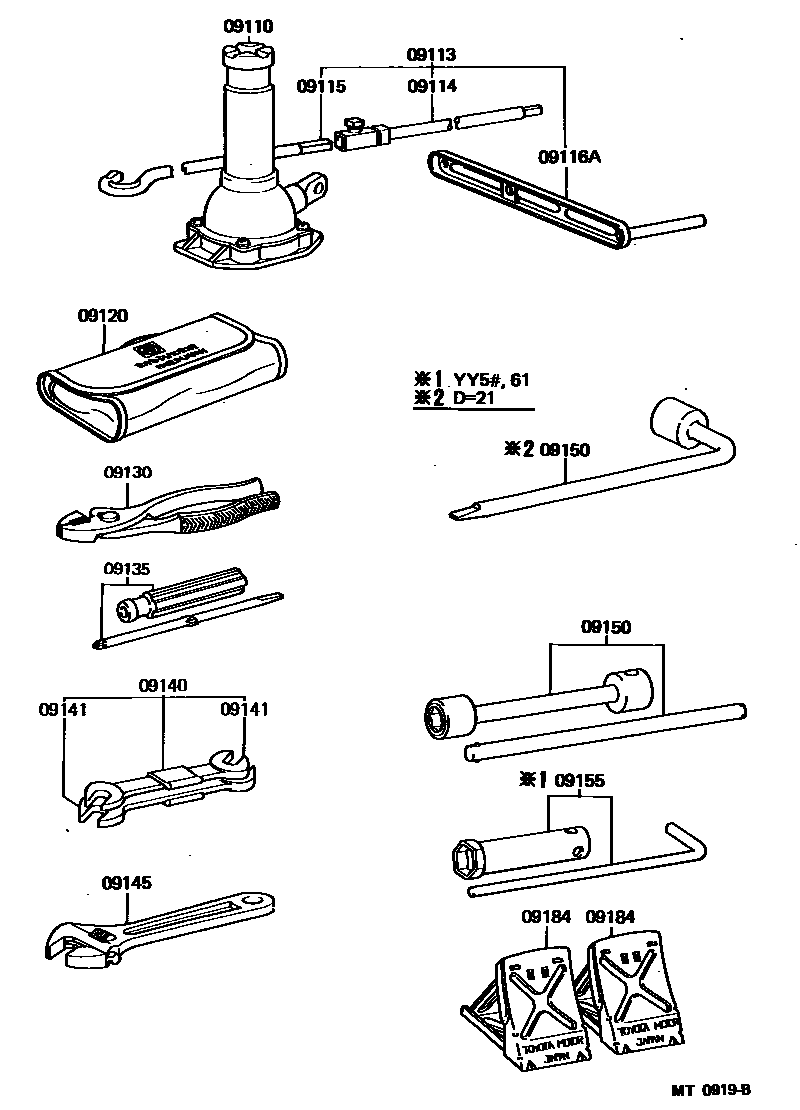

STANDARD TOOL

09110JACK ASSY

main09111-25070iLY50,60,YY5#,61198508-198708

09113HANDLE, JACK

main09113-25031iLY50,60,YY5#,61198508-198610

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iLY50,60,YY5#,61198508-198708

09115ROD SUB-ASSY, JACK HANDLE

main09115-28020iLY50,60,YY5#,61198508-198708

09116ALEVER, JACK HANDLE

main09116-35041iLY50,60,YY5#,61198508-198708

09120BAG, TOOL

main09120-36060iLY50,60,YY5#,61..ST,WT1198508-198708

main09120-36070iLY60,YY61..WT2198508-198708

09130PLIERS

main99913-11500iLY50,60,YY5#,61198508-198708

09135DRIVER, SCREW

main99915-10700iLY50,60,YY5#,61198508-198708

09140SPANNER SET

main09140-27010iLY50,60,YY5#,61198508-198610

09141SPANNER

main99914-10810iLY50,60,YY5#,61198610-198708

main99914-11012iLY50,60,YY5#,61198508-198610

main99914-11214iLY50,60,YY5#,61198610-198708

main99914-11417iLY50,60,YY5#,61198508-198610

09145WRENCH, MONKEY

main99911-10200iLY50,60,YY5#,61198508-198605

main99911-11200iLY50,60,YY5#,61198605-198708

09150WRENCH, HUB NUT BOX

main09150-25010iLY50,60,YY5#,61..WT1; LY50,60,YY50,61..TW1; LY50,60,YY52,61..15T..ST; LY60,YY61..WT2198508-198708

FOR FR TIRE,D=23; FOR RR TIRE,D=23

main09150-25020iLY60,YY61..WT2198508-198708

FOR RR TIRE,D=32

main09150-35020iLY50,60,YY5#,61..WT1; LY50,YY50..125..ST198508-198708

FOR FR TIRE,D=21

09155WRENCH, SPARK PLUG

main09155-41010iYY5#,61198508-198708

09184STOPPER, WHEEL

main09184-00031×2iLY50,60,YY5#,61198508-198708

14 parts on this diagram · 1 diagram in section
