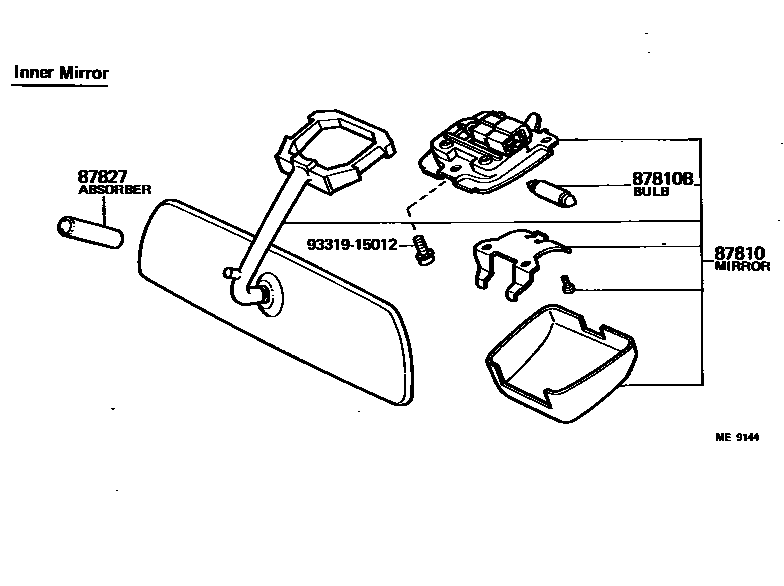

MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95016iJY30,LY20,30,RY20,31197903-198201

12V

main87810-95017iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

main87810-95018iJY30,LY2#,3#,RY21,32198201-198507

12V

main87810-95019iBY3#,JY30,LY2#,3#198201-198507

24V

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iJY30,LY2#,3#,RY2#,3#197903-198507

main90981-16019iBY3#,JY30,LY2#,3#198201-198507

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

9331915012

main93319-15012

4 parts on this diagram · 2 diagrams in section
