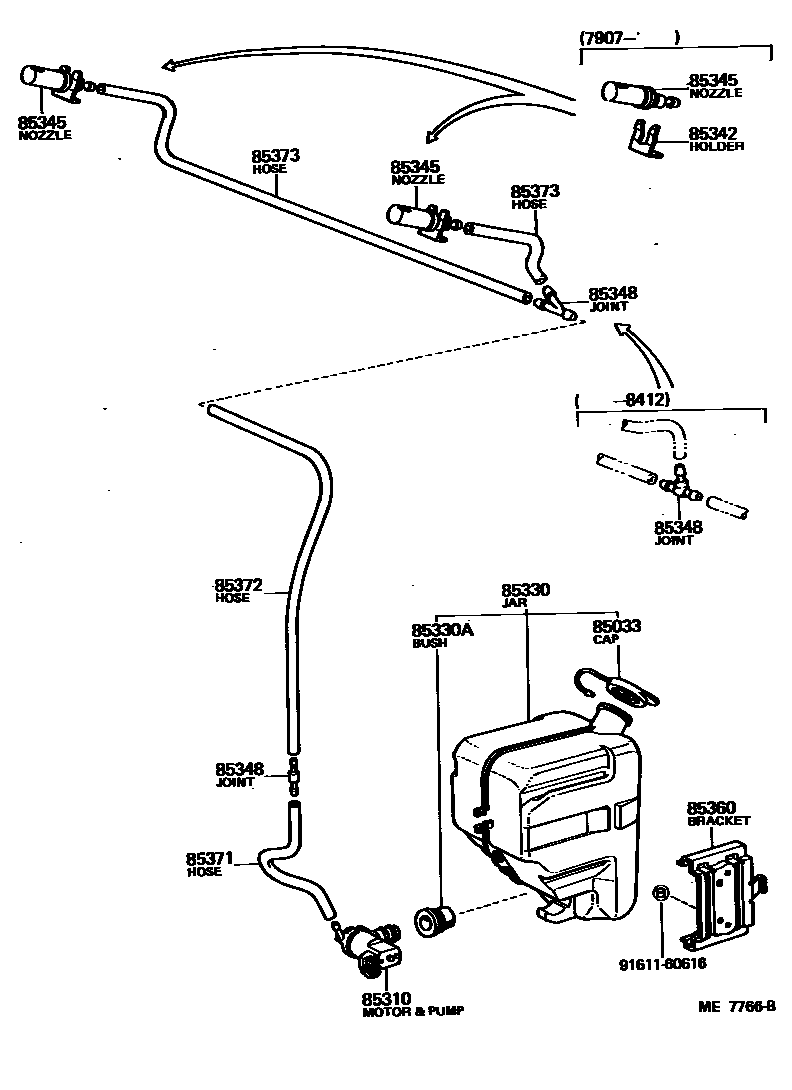

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iJY30,LY2#,3#,RY2#,3#197903-198507

12V

main85310-25010iLY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT197903-198201

24V

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

85342HOLDER, WASHER NOZZLE

main85342-95010×2iBY3#,JY30,LY2#,3#,RY2#,3#197907-198507

85345NOZZLE, WINDSHIELD WASHER

main85035-95010×2iJY30,LY20,30,RY20,31197903-197907

main85035-95011×2iBY3#,JY30,LY2#,3#,RY2#,3#197907-198311

main85035-95012×2iBY31,LY2#,31,RY21,32198311-198507

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011iBY3#,JY30,LY2#,3#,RY2#,3#197903-198412

3-WAY

main85355-14010iBY31,LY2#,31,RY21,32198412-198507

3-WAY

main85355-87201×2iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

STRAIGHT

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iBY31,LY2#,31,RY21,32198412-198507

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBY3#,JY30,LY2#,3#,RY2#,3#197903-198412

main90446-06277iJY30,LY20,30,RY20,31197903-197907

main90446-07013iBY3#,JY30,LY2#,3#,RY2#,3#197907-198507

9161160616

main91611-60616

12 parts on this diagram · 1 diagram in section
